SH130-5 Sumitomo excavator specs & Dimensions (2017 - 2026)

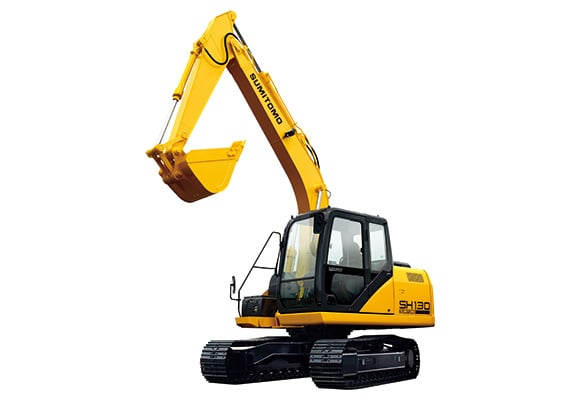

Sumitomo SH130-5 is a Crawler Excavator manufactured since 2017. It has a weight of 12.7 tons and a track width of 600 mm. The tra…

Sumitomo SH130-5 is a Crawler Excavator manufactured since 2017. It has a weight of 12.7 tons and a track width of 600 mm. The transport dimensions are 7.61 meters in length, 2.59 meters in width, and 2.71 meters in height. The excavator features a tear-out force of 90 kN, a dredging depth of 5.15 meters, and a maximum horizontal reach of 7.96 meters. The bucket width is 0.972 meters with a capacity of 0.5 cubic meters.

Crawler Excavators Sumitomo SH130-5

Technical specs - SH130-5 Sumitomo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.7 t
Transport length
7.61 m
Transport width
2.59 m
Transport height
2.71 m
Bucket capacity
0.5 m³
Track width
600 mm
Max. Reach horizontal
7.96 m
Dredging depth
5.15 m
Tear-out force
90 kN
Bucket width
0.972 m
Model series
SH
Engine manuf.
Isuzu
Engine type
AJ-4JJ1X
Engine power
70.9 kW
Displacement
2.999 l
Revolutions at max torque
1600 rpm
Max. torque
359 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sumitomo SH130-5 FAQ

When was the Sumitomo SH130-5 manufactured?

The Sumitomo SH130-5 was first produced in 2017.

How much does the Sumitomo SH130-5 weigh?

The Sumitomo SH130-5 weighs 12.7 tons.

What are the transport dimensions of the Sumitomo SH130-5 crawler excavator?

The Sumitomo SH130-5 has a transport length of 7.61 meters, a transport width of 2.59 meters, and a transport height of 2.71 meters.

What is the track width of the Sumitomo SH130-5's undercarriage?

The Sumitomo SH130-5 has a track width of 600 mm.

What are the excavation performance specifications of the Sumitomo SH130-5?

The Sumitomo SH130-5 has a dredging depth of 5.15 meters and a maximum horizontal reach of 7.96 meters.

What is the tear-out force of the Sumitomo SH130-5?

The Sumitomo SH130-5 has a tear-out force of 90 kN.

What are the specifications of the primary work tool bucket on the Sumitomo SH130-5?

The primary work tool bucket of the Sumitomo SH130-5 has a capacity of 0.5 cubic meters and a width of 0.972 meters.
