JCM921D Strong excavator specs & Dimensions (2017 - 2026)

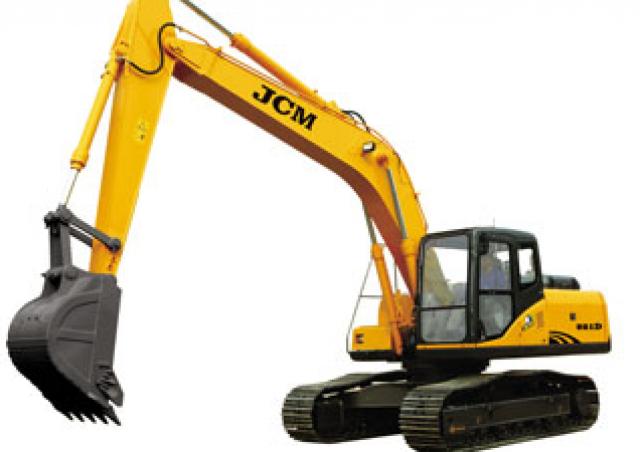

Strong JCM921D is a Crawler Excavator manufactured since 2017. It has a weight of 20.5 tons and a track width of 600 mm. The trans…

Strong JCM921D is a Crawler Excavator manufactured since 2017. It has a weight of 20.5 tons and a track width of 600 mm. The transport dimensions are 9.548 meters in length, 2.8 meters in width, and 3.073 meters in height. The excavator features a tear-out force of 115 kN, a dredging depth of 6.605 meters, and a maximum horizontal reach of 9.671 meters. The bucket width is 1.23 meters with a capacity of 0.9 cubic meters. Special equipment includes air conditioning.

Crawler Excavators Strong JCM921D

Technical specs - JCM921D Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.5 t
Transport length
9.548 m
Transport width
2.8 m
Transport height
3.073 m
Bucket capacity
0.9 m³
Track width
600 mm
Max. Reach horizontal
9.671 m
Dredging depth
6.605 m
Tear-out force
115 kN
Bucket width
1.23 m
Model series
JCM
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
112 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Strong JCM921D FAQ

When was the Strong JCM921D manufactured?

The Strong JCM921D was first produced in 2017.

How much does the Strong JCM921D weigh?

The Strong JCM921D weighs 20.5 tons.

What are the transport dimensions of the Strong JCM921D crawler excavator?

The Strong JCM921D crawler excavator has a transport length of 9.55 meters, a transport width of 2.8 meters, and a transport height of 3.07 meters.

What is the track width of the Strong JCM921D's undercarriage?

The Strong JCM921D has a track width of 600 mm.

What is the excavation performance of the Strong JCM921D?

The Strong JCM921D has a dredging depth of 6.605 meters and a maximum horizontal reach of 9.671 meters.

What power rating information is available for the Strong JCM921D crawler excavator?

There is no power rating information available for the Strong JCM921D crawler excavator in the provided data.

What are the bucket specifications of the Strong JCM921D crawler excavator?

The Strong JCM921D has a bucket capacity of 0.9 cubic meters and a bucket width of 1.23 meters.
