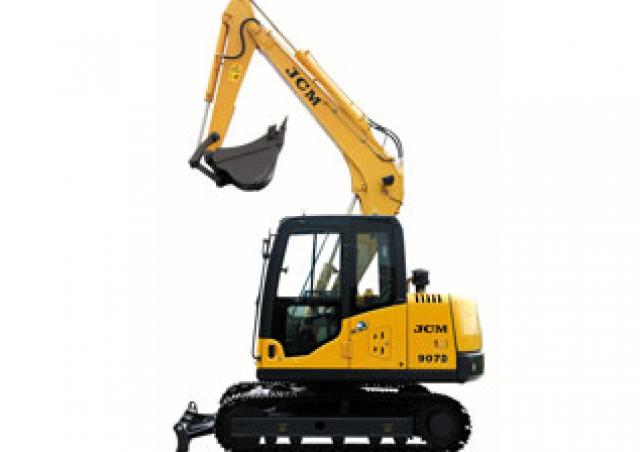

JCM907D Strong excavator specs & Dimensions (2017 - 2026)

Strong JCM907D is a crawler excavator manufactured since 2017. It has a weight of 7.1 tons and a track width of 450 mm. The transp…

Strong JCM907D is a crawler excavator manufactured since 2017. It has a weight of 7.1 tons and a track width of 450 mm. The transport dimensions are 6.146 meters in length, 2.21 meters in width, and 2.595 meters in height. The machine features a tear-out force of 53.6 kN, a dredging depth of 4.147 meters, and a maximum horizontal reach of 6.181 meters. The bucket width is 0.81 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning and a blade.

Crawler Excavators Strong JCM907D

Technical specs - JCM907D Strong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.1 t
Transport length
6.146 m
Transport width
2.21 m
Transport height
2.595 m
Bucket capacity
0.28 m³
Track width
450 mm
Max. Reach horizontal
6.181 m
Dredging depth
4.147 m
Tear-out force
53.6 kN
Bucket width
0.81 m
Model series
JCM
Engine manuf.
Cummins
Engine type
B3.3
Engine power
45 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Strong JCM907D FAQ

When was the Strong JCM907D manufactured?

The Strong JCM907D was first produced in 2017.

How much does the Strong JCM907D weigh?

The Strong JCM907D weighs 7.1 tons.

What are the transport dimensions of the Strong JCM907D crawler excavator?

The Strong JCM907D crawler excavator has a transport length of 6.15 meters, a transport width of 2.21 meters, and a transport height of 2.6 meters.

What is the track width of the Strong JCM907D crawler excavator?

The Strong JCM907D crawler excavator has a track width of 450 mm.

What are the dredging depth and maximum horizontal reach of the Strong JCM907D?

The Strong JCM907D has a dredging depth of 4.147 meters and a maximum horizontal reach of 6.181 meters.

What are the power ratings of the Strong JCM907D?

The source data does not provide power rating information for the Strong JCM907D.

What are the specifications of the bucket on the Strong JCM907D crawler excavator?

The Strong JCM907D crawler excavator has a bucket with a capacity of 0.28 cubic meters and a width of 0.81 meters.

How much is a Strong JCM907D Crawler excavator (2017u20132025) worth?

The residual value of the Strong JCM907D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
