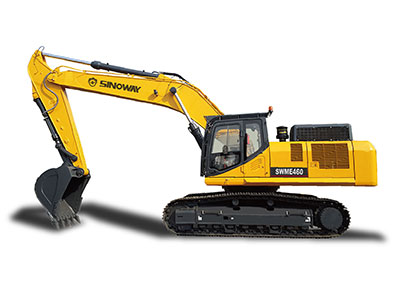

SWME460 Sinoway excavator specs & Dimensions (2018 - 2026)

Sinoway SWME460 is a Crawler Excavator manufactured since 2018. It has a weight of 45.5 tons and a track width of 600 mm. The tran…

Sinoway SWME460 is a Crawler Excavator manufactured since 2018. It has a weight of 45.5 tons and a track width of 600 mm. The transport dimensions are 11.515 meters in length, 3.34 meters in width, and 3.75 meters in height. The excavator features a tear-out force of 268 kN, a dredging depth of 7.86 meters, and a maximum horizontal reach of 11.81 meters. It is equipped with a bucket capacity of 2.2 cubic meters and includes special equipment such as air conditioning and cabin adjustment.

Crawler Excavators Sinoway SWME460

Technical specs - SWME460 Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.5 t
Transport length
11.515 m
Transport width
3.34 m
Transport height
3.75 m
Bucket capacity
2.2 m³
Undercarriage
HD
Track width
600 mm
Boom
MB
Max. Reach horizontal
11.81 m
Dredging depth
7.86 m
Tear-out force
268 kN
Model series
SWME
Engine manuf.
Cummins
Engine type
QSM11
Engine power
280 kW
Displacement
11 l
No. of cylinders
6

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sinoway SWME460 FAQ

When was the Sinoway SWME460 manufactured?

The Sinoway SWME460 was first produced in 2018.

How much does the Sinoway SWME460 weigh?

The Sinoway SWME460 weighs 45.5 tons.

What are the transport dimensions of the Sinoway SWME460 crawler excavator?

The Sinoway SWME460 has a transport length of 11.52 meters, a transport width of 3.34 meters, and a transport height of 3.75 meters.

What are the undercarriage specifications of the Sinoway SWME460?

The Sinoway SWME460 has a heavy duty undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Sinoway SWME460?

The Sinoway SWME460 has a dredging depth of 7.86 meters, a maximum horizontal reach of 11.81 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sinoway SWME460?

The Sinoway SWME460 has a tear-out force of 268 kN.

What is the bucket capacity of the Sinoway SWME460 crawler excavator?

The Sinoway SWME460 crawler excavator has a bucket capacity of 2.2 cubic meters.

How much is a Sinoway SWME460 Crawler excavator (2018u20132025) worth?

The residual value of the Sinoway SWME460 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
