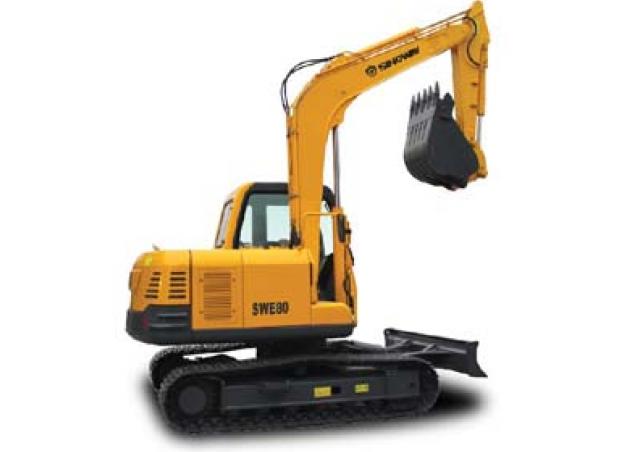

SWE80 Sinoway excavator specs & Dimensions (2018 - 2026)

Sinoway SWE80 is a Crawler Excavator manufactured since 2018, with a weight of 8.25 tons. It features a track width of 450 mm, a t…

Sinoway SWE80 is a Crawler Excavator manufactured since 2018, with a weight of 8.25 tons. It features a track width of 450 mm, a transport length of 6.502 meters, a transport width of 2.32 meters, and a transport height of 2.601 meters. The machine has a tear-out force of 63 kN, a dredging depth of 4.23 meters, and a maximum horizontal reach of 6.793 meters. The bucket capacity is 0.36 cubic meters. Special equipment includes air conditioning, a blade, and cabin adjustment.

Crawler Excavators Sinoway SWE80

Technical specs - SWE80 Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.25 t
Transport length
6.502 m
Transport width
2.32 m
Transport height
2.601 m
Bucket capacity
0.36 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.793 m
Dredging depth
4.23 m
Tear-out force
63 kN
Model series
SWE
Engine manuf.
Yanmar
Engine type
4TNV98T-SFN
Engine power
53.1 kW
Displacement
3.319 l
Max. torque
312.7 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sinoway SWE80 FAQ

When was the Sinoway SWE80 manufactured?

The Sinoway SWE80 was first produced in 2018.

How much does the Sinoway SWE80 weigh?

The Sinoway SWE80 weighs 8.25 tons.

What are the transport dimensions of the Sinoway SWE80 crawler excavator?

The Sinoway SWE80 has a transport length of 6.5 meters, a transport width of 2.32 meters, and a transport height of 2.6 meters.

What are the undercarriage specifications of the Sinoway SWE80?

The Sinoway SWE80 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Sinoway SWE80 crawler excavator?

The Sinoway SWE80 crawler excavator has a dredging depth of 4.23 meters, a maximum horizontal reach of 6.793 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sinoway SWE80?

The Sinoway SWE80 has a tear-out force of 63 kN.

What is the bucket capacity of the Sinoway SWE80 excavator?

The Sinoway SWE80 excavator has a bucket capacity of 0.36 cubic meters.

How much is a Sinoway SWE80 Crawler excavator (2018u20132025) worth?

The residual value of the Sinoway SWE80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
