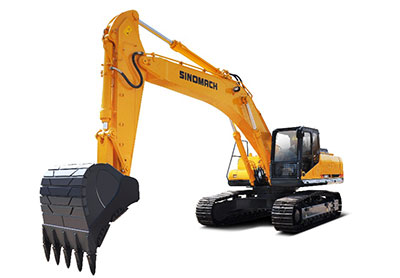

GE330H Sinomach excavator specs & Dimensions (2023 - 2026)

Weight: 31.38t – Transport length: 10.686m – Transport width: 3.28m – Transport height: 3.546m – Bucket capacity: 1.4m³ – Bucket c…

Weight: 31.38t – Transport length: 10.686m – Transport width: 3.28m – Transport height: 3.546m – Bucket capacity: 1.4m³ – Bucket capacity min.: 1.4m³

Check out detailed specifications, information and technical data for Sinomach GE330H excavator manufactured between 2023 - 2026. Get more in-depth insight with Sinomach GE330H digger specifications. See information, like: Weight: 31.38t – Transport length: 10.686m – Transport width: 3.28m – Transport height: 3.546m – Bucket capacity: 1.4m³ – Bucket capacity min.: 1.4m³ and more.

Crawler Excavators Sinomach GE330H

Technical specs - GE330H Sinomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
31.38 t
Transport length
10.686 m
Transport width
3.28 m
Transport height
3.546 m
Bucket capacity
1.4 m³
Bucket capacity min.
1.4 m³
Max. Reach horizontal
9.617 m
Dredging depth
6.536 m
Tear-out force
225 kN
Model series
GE
Engine manuf.
Cummins
Engine type
QSB7-C227
Engine power
169 kW

More technical details, like: bucket capacity max., undercarriage, track width, boom, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sinomach GE330H FAQ

When was the Sinomach GE330H manufactured?

The Sinomach GE330H was first produced in 2023.

How much does the Sinomach GE330H weigh?

The Sinomach GE330H weighs 31.38 tons.

What are the transport dimensions of the Sinomach GE330H crawler excavator?

The Sinomach GE330H has a transport length of 10.69 meters, a transport width of 3.28 meters, and a transport height of 3.55 meters.

What are the dredging depth and maximum horizontal reach of the Sinomach GE330H?

The Sinomach GE330H has a dredging depth of 6.536 meters and a maximum horizontal reach of 9.617 meters.

What is the tear-out force of the Sinomach GE330H, the available power-related specification?

The Sinomach GE330H has a tear-out force of 225 kN, which is the available power-related specification in the data.

What is the bucket capacity of the Sinomach GE330H excavator?

The Sinomach GE330H excavator has a bucket capacity of 1.4 cubic meters.

How much is a Sinomach GE330H Crawler excavator (2023u20132025) worth?

The residual value of the Sinomach GE330H depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
