SE980LCW Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 97.8t – Transport length: 13.72m – Transport width: 4.2m – Transport height: 4.99m – Bucket capacity: 6.5m³ – Track width:…

Weight: 97.8t – Transport length: 13.72m – Transport width: 4.2m – Transport height: 4.99m – Bucket capacity: 6.5m³ – Track width: 650mm

Check out detailed specifications, information and technical data for Shantui SE980LCW excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE980LCW digger specifications. See information, like: Weight: 97.8t – Transport length: 13.72m – Transport width: 4.2m – Transport height: 4.99m – Bucket capacity: 6.5m³ – Track width: 650mm and more.

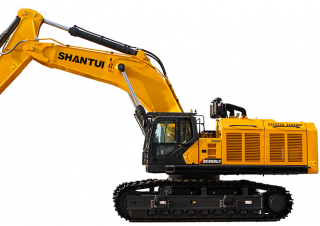

Crawler Excavators Shantui SE980LCW

Technical specs - SE980LCW Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
97.8 t
Transport length
13.72 m
Transport width
4.2 m
Transport height
4.99 m
Bucket capacity
6.5 m³
Track width
650 mm
Max. Reach horizontal
12.735 m
Dredging depth
7.15 m
Tear-out force
480 kN
Engine manuf.
Weichai
Engine type
6M33
Engine power
571 kW
Displacement
19.6 l
No. of cylinders
6
Cylinder bore x stroke
150x185 mm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE980LCW FAQ

When was the Shantui SE980LCW manufactured?

The Shantui SE980LCW was first produced in 2023.

How much does the Shantui SE980LCW weigh?

The Shantui SE980LCW weighs 97.8 tons.

What are the transport dimensions of the Shantui SE980LCW crawler excavator?

The Shantui SE980LCW has a transport length of 13.72 meters, a transport width of 4.2 meters, and a transport height of 4.99 meters.

What are the excavation performance specifications of the Shantui SE980LCW?

The Shantui SE980LCW has a dredging depth of 7.15 meters and a maximum horizontal reach of 12.735 meters.

What are the power ratings of the Shantui SE980LCW?

The power ratings of the Shantui SE980LCW are not provided in the available data.

What is the bucket capacity of the Shantui SE980LCW crawler excavator?

The Shantui SE980LCW crawler excavator has a bucket capacity of 6.5 cubic meters.

How much is a Shantui SE980LCW Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE980LCW depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
