SE85 Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 8.35t – Transport length: 6.455m – Transport width: 2.306m – Transport height: 2.71m – Bucket capacity: 0.35m³ – Track wid…

Weight: 8.35t – Transport length: 6.455m – Transport width: 2.306m – Transport height: 2.71m – Bucket capacity: 0.35m³ – Track width: 450mm

Check out detailed specifications, information and technical data for Shantui SE85 excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE85 digger specifications. See information, like: Weight: 8.35t – Transport length: 6.455m – Transport width: 2.306m – Transport height: 2.71m – Bucket capacity: 0.35m³ – Track width: 450mm and more.

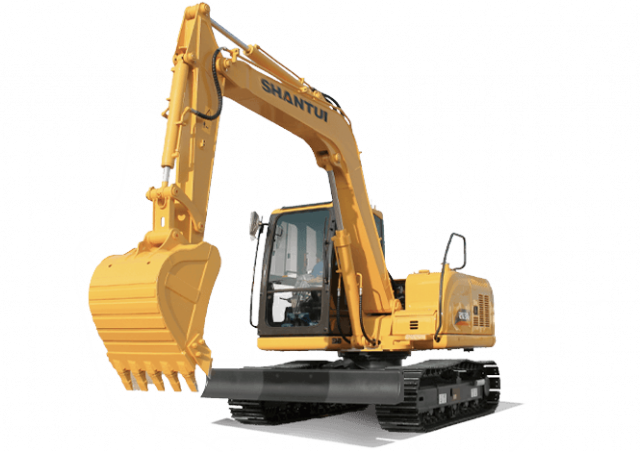

Crawler Excavators Shantui SE85

Technical specs - SE85 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.35 t
Transport length
6.455 m
Transport width
2.306 m
Transport height
2.71 m
Bucket capacity
0.35 m³
Track width
450 mm
Max. Reach horizontal
6.455 m
Dredging depth
4.295 m
Tear-out force
68 kN
Bucket width
0.92 m
Engine manuf.
Kubota
Engine type
V3307 T
Engine power
48.9 kW
Displacement
3.331 l
No. of cylinders
4
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE85 FAQ

When was the Shantui SE85 manufactured?

The Shantui SE85 was first produced in 2023.

How much does the Shantui SE85 crawler excavator weigh?

The Shantui SE85 crawler excavator weighs 8.35 tons.

What are the transport dimensions of the Shantui SE85 crawler excavator?

The Shantui SE85 has a transport length of 6.46 meters, a transport width of 2.31 meters, and a transport height of 2.71 meters.

What is the excavation performance of the Shantui SE85?

The Shantui SE85 has a dredging depth of 4.295 meters and a maximum horizontal reach of 7.175 meters.

What are the power ratings of the Shantui SE85?

There are no power rating specifications available for the Shantui SE85 in the provided data.

What is the bucket capacity of the Shantui SE85 crawler excavator?

The bucket capacity of the Shantui SE85 crawler excavator is 0.35 cubic meters.

How much is a Shantui SE85 Crawler excavator (2023u20132025) worth?

The residual value of the Shantui SE85 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
