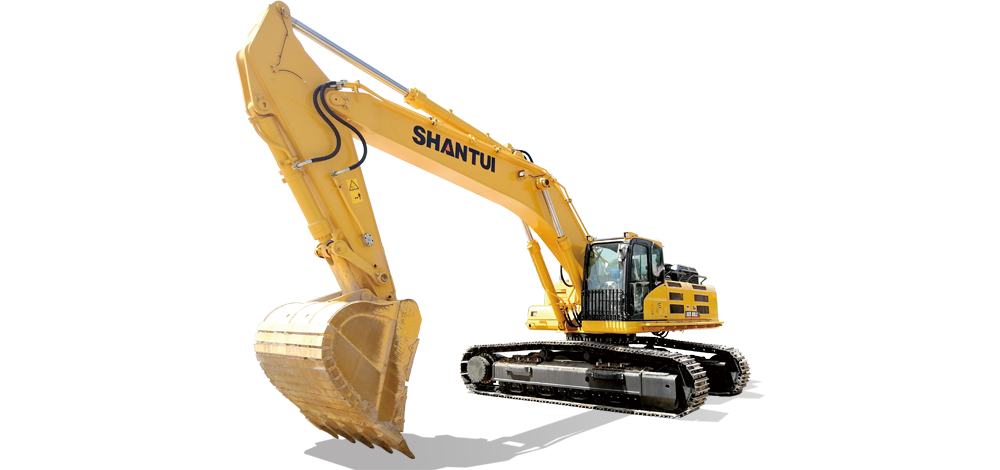

SE550LCW Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 53.5t – Transport length: 11.775m – Transport width: 3.585m – Transport height: 4.14m – Bucket capacity: 3.2m³ – Track wid…

Weight: 53.5t – Transport length: 11.775m – Transport width: 3.585m – Transport height: 4.14m – Bucket capacity: 3.2m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Shantui SE550LCW excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE550LCW digger specifications. See information, like: Weight: 53.5t – Transport length: 11.775m – Transport width: 3.585m – Transport height: 4.14m – Bucket capacity: 3.2m³ – Track width: 600mm and more.

Crawler Excavators Shantui SE550LCW

Technical specs - SE550LCW Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
53.5 t
Transport length
11.775 m
Transport width
3.585 m
Transport height
4.14 m
Bucket capacity
3.2 m³
Track width
600 mm
Max. Reach horizontal
10.255 m
Dredging depth
6.32 m
Tear-out force
310 kN
Bucket width
1.948 m
Engine manuf.
Weichai
Engine type
WP13H
Engine power
316 kW
Displacement
12.9 l
No. of cylinders
6
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE550LCW FAQ

When was the Shantui SE550LCW manufactured?

The Shantui SE550LCW was first produced in 2023.

How much does the Shantui SE550LCW weigh?

The Shantui SE550LCW weighs 53.5 tons.

What are the transport dimensions of the Shantui SE550LCW crawler excavator?

The Shantui SE550LCW has a transport length of 11.78 meters, a transport width of 3.59 meters, and a transport height of 4.14 meters.

What are the excavation performance specifications of the Shantui SE550LCW?

The Shantui SE550LCW has a dredging depth of 6.32 meters and a maximum horizontal reach of 10.255 meters.

What is the tear-out force of the Shantui SE550LCW?

The Shantui SE550LCW has a tear-out force of 310 kN.

What is the bucket capacity of the Shantui SE550LCW?

The Shantui SE550LCW has a bucket capacity of 3.2 cubic meters.
