SE550LC Shantui excavator specs & Dimensions (2023 - 2026)

Weight: 53.5t – Transport length: 11.775m – Transport width: 3.585m – Transport height: 4m – Bucket capacity: 3.6m³ – Undercarriag…

Weight: 53.5t – Transport length: 11.775m – Transport width: 3.585m – Transport height: 4m – Bucket capacity: 3.6m³ – Undercarriage: LC

Check out detailed specifications, information and technical data for Shantui SE550LC excavator manufactured between 2023 - 2026. Get more in-depth insight with Shantui SE550LC digger specifications. See information, like: Weight: 53.5t – Transport length: 11.775m – Transport width: 3.585m – Transport height: 4m – Bucket capacity: 3.6m³ – Undercarriage: LC and more.

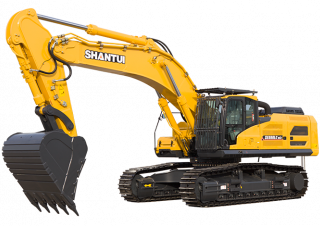

Crawler Excavators Shantui SE550LC

Technical specs - SE550LC Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
53.5 t
Transport length
11.775 m
Transport width
3.585 m
Transport height
4 m
Bucket capacity
3.6 m³
Undercarriage
LC
Track width
600 mm
Max. Reach horizontal
10.255 m
Dredging depth
6.32 m
Tear-out force
310 kN
Engine manuf.
Isuzu
Engine type
6WG1
Engine power
300 kW
Displacement
15.68 l
No. of cylinders
6
Cylinder bore x stroke
147x154 mm
Emission level
Tier 3 / Stage III

More technical details, like: bucket capacity min., bucket capacity max., boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE550LC FAQ

When was the Shantui SE550LC manufactured?

The Shantui SE550LC was first produced in 2023.

How much does the Shantui SE550LC weigh?

The Shantui SE550LC weighs 53.5 tons.

What are the transport dimensions of the Shantui SE550LC crawler excavator?

The Shantui SE550LC has a transport length of 11.78 meters, a transport width of 3.59 meters, and a transport height of 4.14 meters.

What is the undercarriage specification of the Shantui SE550LC?

The Shantui SE550LC has a long undercarriage.

What are the dredging depth and maximum horizontal reach of the Shantui SE550LC?

The Shantui SE550LC has a dredging depth of 6.32 meters and a maximum horizontal reach of 10.255 meters.

What are the power ratings of the Shantui SE550LC?

There is no power rating data available for the Shantui SE550LC in the provided information.

What is the bucket capacity of the Shantui SE550LC crawler excavator?

The Shantui SE550LC crawler excavator has a bucket capacity of 3.2 cubic meters.
