SE390LC-9W2 Shantui excavator specs & Dimensions (2025 - 2026)

Weight: 40.5t – Transport length: 11.38m – Transport width: 3.26m – Transport height: 3.8m – Bucket capacity: 1.95m³ – Max. Reach …

Weight: 40.5t – Transport length: 11.38m – Transport width: 3.26m – Transport height: 3.8m – Bucket capacity: 1.95m³ – Max. Reach horizontal: 10.84m

Check out detailed specifications, information and technical data for Shantui SE390LC-9W2 excavator manufactured between 2025 - 2026. Get more in-depth insight with Shantui SE390LC-9W2 digger specifications. See information, like: Weight: 40.5t – Transport length: 11.38m – Transport width: 3.26m – Transport height: 3.8m – Bucket capacity: 1.95m³ – Max. Reach horizontal: 10.84m and more.

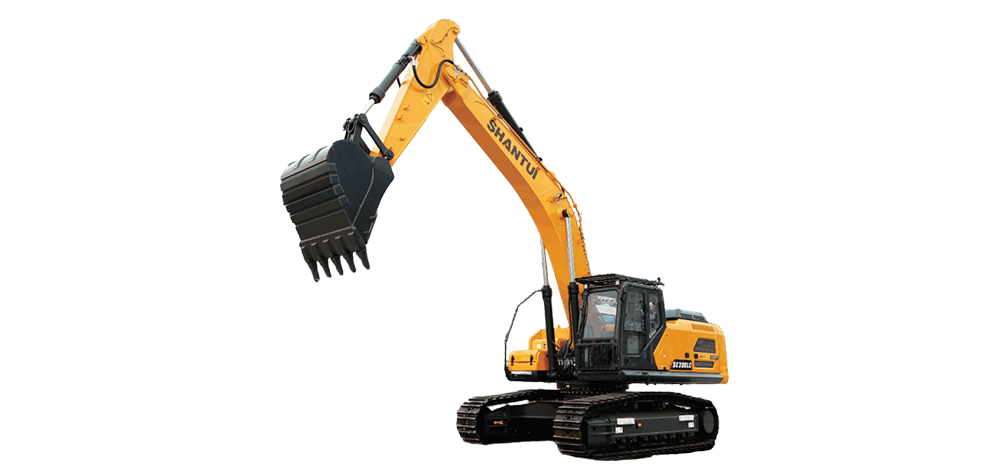

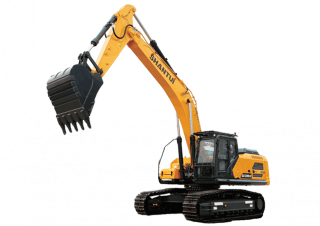

Crawler Excavators Shantui SE390LC-9W2

Technical specs - SE390LC-9W2 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
40.5 t
Transport length
11.38 m
Transport width
3.26 m
Transport height
3.8 m
Bucket capacity
1.95 m³
Max. Reach horizontal
10.84 m
Dredging depth
7.025 m
Tear-out force
256 kN
Engine manuf.
N/A
Engine type
N/a
Engine power
247 kW
Emission level
China III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, track width, boom, bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
