SE210-9 Shantui excavator specs & Dimensions (2025 - 2026)

Weight: 20.8t – Transport length: 9.625m – Transport width: 2.8m – Transport height: 3.075m – Bucket capacity: 0.9m³ – Track width…

Weight: 20.8t – Transport length: 9.625m – Transport width: 2.8m – Transport height: 3.075m – Bucket capacity: 0.9m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Shantui SE210-9 excavator manufactured between 2025 - 2026. Get more in-depth insight with Shantui SE210-9 digger specifications. See information, like: Weight: 20.8t – Transport length: 9.625m – Transport width: 2.8m – Transport height: 3.075m – Bucket capacity: 0.9m³ – Track width: 600mm and more.

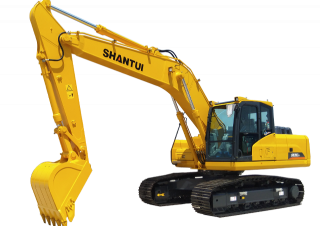

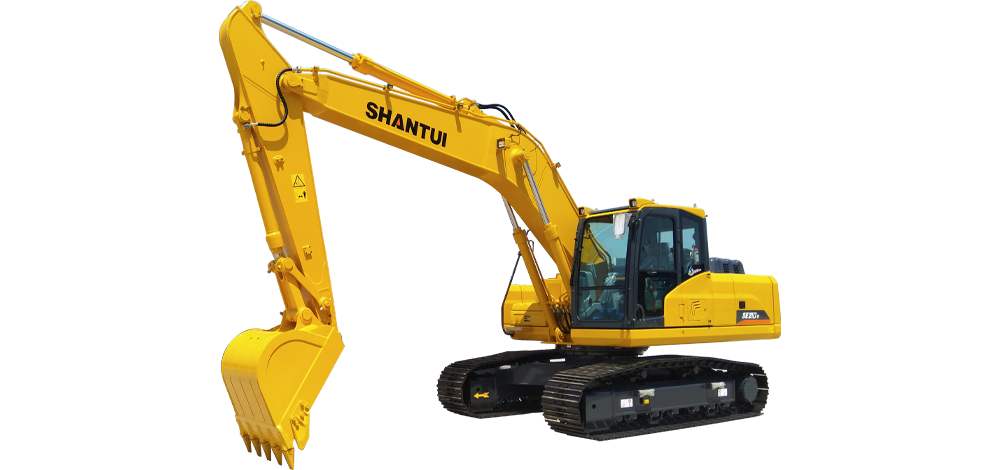

Crawler Excavators Shantui SE210-9

Technical specs - SE210-9 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.8 t
Transport length
9.625 m
Transport width
2.8 m
Transport height
3.075 m
Bucket capacity
0.9 m³
Track width
600 mm
Max. Reach horizontal
9.675 m
Dredging depth
6.49 m
Tear-out force
127 kN
Bucket width
1.25 m
Engine manuf.
Cummins
Engine type
B5.9-C
Engine power
112 kW
Displacement
5.9 l
No. of cylinders
6
Emission level
Tier 2 / Stage II

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
