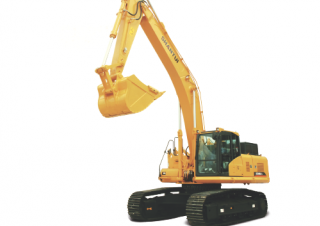

SE210-9 Shantui excavator specs & Dimensions (2018 - 2020)

Shantui SE210-9 is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 20.5 tons. It has a transport length of 9.…

Shantui SE210-9 is a Crawler Excavator manufactured from 2018 to 2020, with a weight of 20.5 tons. It has a transport length of 9.548 meters, a transport width of 2.8 meters, and a transport height of 3.073 meters. The bucket capacity is 0.9 cubic meters.

Crawler Excavators Shantui SE210-9

Technical specs - SE210-9 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.5 t
Transport length
9.548 m
Transport width
2.8 m
Transport height
3.073 m
Bucket capacity
0.9 m³
Undercarriage
SL
Boom
MB
Model series
MEDIUM
Engine manuf.
Weichai
Engine type
WP7
Engine power
116 kW
Revolutions at max torque
1400 rpm
Max. torque
630 Nm
No. of cylinders
6
Emission level
Euro III

More technical details, like: bucket capacity min., bucket capacity max., track width, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE210-9 FAQ

When was the Shantui SE210-9 manufactured?

The Shantui SE210-9 was manufactured from 2018 to 2020.

How much does the Shantui SE210-9 weigh?

The Shantui SE210-9 weighs 20.5 tons.

What are the transport dimensions of the Shantui SE210-9 crawler excavator?

The Shantui SE210-9 has a transport length of 9.55 meters, a transport width of 2.8 meters, and a transport height of 3.07 meters.

What type of undercarriage does the Shantui SE210-9 have?

The Shantui SE210-9 has a standard undercarriage.

What type of boom does the Shantui SE210-9 have?

The Shantui SE210-9 has a monobloc boom.

What is the bucket capacity of the Shantui SE210-9 excavator?

The Shantui SE210-9 excavator has a bucket capacity of 0.9 cubic meters.
