SE150 Shantui excavator specs & Dimensions (2020 - 2026)

Shantui SE150 is a Crawler Excavator manufactured since 2020. It has a weight of 14.5 tons and a track width of 500 mm. The transp…

Shantui SE150 is a Crawler Excavator manufactured since 2020. It has a weight of 14.5 tons and a track width of 500 mm. The transport dimensions are 7.86 meters in length, 2.64 meters in width, and 2.85 meters in height. The dredging depth is 5.5 meters, and the maximum horizontal reach is 8.3 meters. The bucket capacity ranges from a minimum of 0.4 cubic meters to a maximum of 0.65 cubic meters.

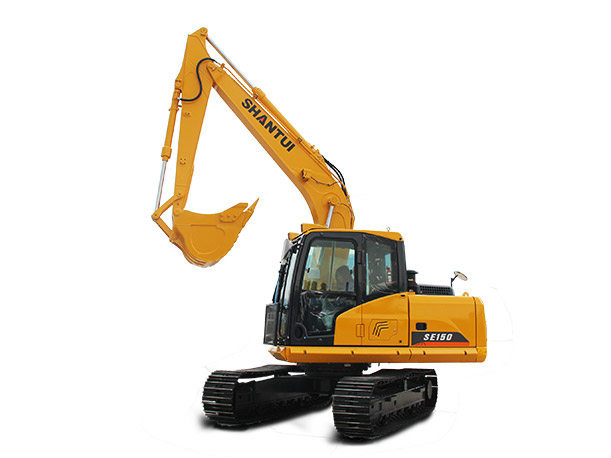

Crawler Excavators Shantui SE150

Technical specs - SE150 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Transport length
7.86 m
Transport width
2.645 m
Transport height
2.86 m
Bucket capacity
0.65 m³
Bucket capacity min.
0.45 m³
Bucket capacity max.
0.65 m³
Track width
500 mm
Max. Reach horizontal
8.325 m
Dredging depth
5.49 m
Tear-out force
105 kN
Bucket width
1.068 m
Model series
MEDIUM
Engine manuf.
Cummins
Engine type
QSF3.8T
Engine power
86 kW
Displacement
3.76 l
No. of cylinders
4
Emission level
Tier 3 / Stage III

More technical details, like: undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE150 FAQ

When was the Shantui SE150 manufactured?

The Shantui SE150 was first produced in 2020.

How much does the Shantui SE150 weigh?

The Shantui SE150 weighs 14.5 tons.

What are the transport dimensions of the Shantui SE150 crawler excavator?

The Shantui SE150 has a transport length of 7.86 meters, a transport width of 2.64 meters, and a transport height of 2.85 meters.

What is the track width of the Shantui SE150's undercarriage?

The Shantui SE150 has a track width of 500 mm.

What are the excavation performance specifications of the Shantui SE150?

The Shantui SE150 has a dredging depth of 5.5 meters and a maximum horizontal reach of 8.3 meters.

What are the bucket capacity specifications of the Shantui SE150 crawler excavator?

The Shantui SE150 has a bucket capacity of 0.65 cubic meters, with a maximum capacity of 0.65 cubic meters and a minimum capacity of 0.4 cubic meters.

How much is a Shantui SE150 Crawler excavator (2020u20132025) worth?

The residual value of the Shantui SE150 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
