SE135 Shantui excavator specs & Dimensions (2020 - 2026)

Shantui SE135 is a Crawler Excavator manufactured since 2020. It has a weight of 13.5 tons and a track width of 500 mm. The transp…

Shantui SE135 is a Crawler Excavator manufactured since 2020. It has a weight of 13.5 tons and a track width of 500 mm. The transport dimensions are 7.8 meters in length, 2.5 meters in width, and 2.85 meters in height. The dredging depth is 5.5 meters, and the maximum horizontal reach is 8.3 meters. The bucket capacity ranges from a minimum of 0.4 cubic meters to a maximum of 0.65 cubic meters, with a standard capacity of 0.55 cubic meters.

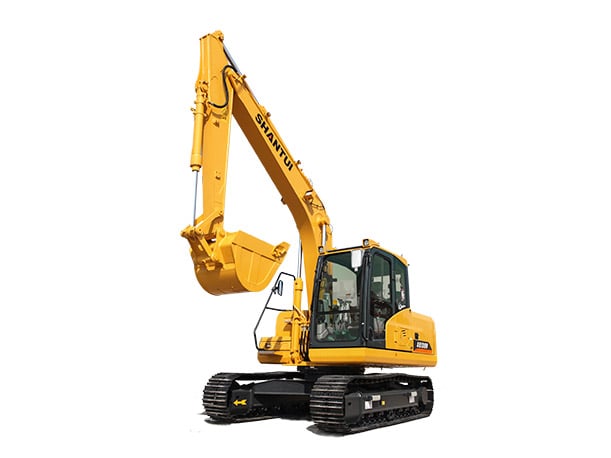

Crawler Excavators Shantui SE135

Technical specs - SE135 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Transport length
7.86 m
Transport width
2.5 m
Transport height
2.855 m
Bucket capacity
0.6 m³
Bucket capacity min.
0.45 m³
Bucket capacity max.
0.63 m³
Track width
500 mm
Max. Reach horizontal
8.175 m
Dredging depth
5.49 m
Tear-out force
97 kN
Bucket width
1.039 m
Model series
MEDIUM
Engine manuf.
Cummins
Engine type
QSF3.8T
Engine power
86 kW
Displacement
3.76 l
No. of cylinders
4
Emission level
Tier 3 / Stage III

More technical details, like: undercarriage, boom, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Shantui SE135 FAQ

When was the Shantui SE135 manufactured?

The Shantui SE135 was first produced in 2020.

How much does the Shantui SE135 weigh?

The Shantui SE135 weighs 13.5 tons.

What are the transport dimensions of the Shantui SE135 crawler excavator?

The Shantui SE135 has a transport length of 7.8 meters, a transport width of 2.5 meters, and a transport height of 2.85 meters.

What is the track width of the Shantui SE135 crawler excavator?

The Shantui SE135 crawler excavator has a track width of 500 mm.

What is the excavation performance of the Shantui SE135?

The Shantui SE135 has a dredging depth of 5.5 meters and a maximum horizontal reach of 8.3 meters.

What are the bucket capacity specifications of the Shantui SE135 crawler excavator?

The Shantui SE135 crawler excavator has a bucket capacity of 0.55 cubic meters, with a maximum capacity of 0.65 cubic meters and a minimum capacity of 0.4 cubic meters.
