LG690E SDLG excavator specs & Dimensions (2013 - 2026)

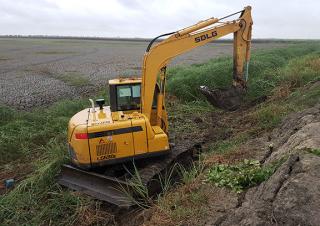

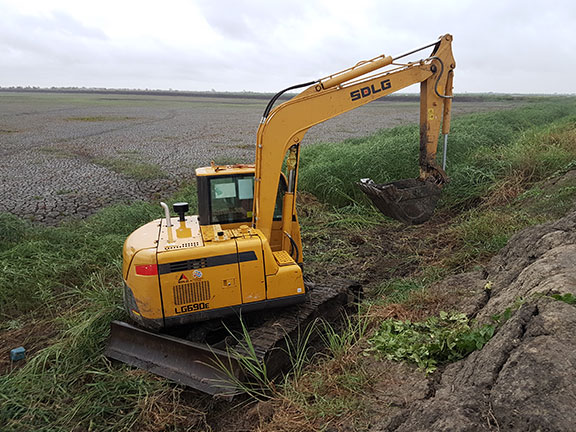

SDLG LG690E is a crawler excavator manufactured since 2013, with a weight of 8 tons. It features a track width of 450 mm, a transp…

SDLG LG690E is a crawler excavator manufactured since 2013, with a weight of 8 tons. It features a track width of 450 mm, a transport length of 6 meters, a transport width of 2.265 meters, and a transport height of 2 meters. The excavator has a tear-out force of 60 kN and is equipped with a blade.

Crawler Excavators SDLG LG690E

Technical specs - LG690E SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8 t
Transport length
6 m
Transport width
2.27 m
Transport height
2 m
Bucket capacity
0.32 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.33 m
Dredging depth
4.16 m
Tear-out force
60 kN
Engine manuf.
Kubota
Engine type
V3800DI-T-E2B-CBH-2
Engine power
61.6 kW
Max. torque
310 Nm
No. of cylinders
4
Cylinder bore x stroke
100 x 120 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, displacement, revolutions at max torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

SDLG LG690E FAQ

When was the SDLG LG690E manufactured?

The SDLG LG690E was first produced in 2013.

How much does the SDLG LG690E weigh?

The SDLG LG690E weighs 8 tons.

What are the transport dimensions of the SDLG LG690E crawler excavator?

The SDLG LG690E has a transport length of 6 meters, a transport width of 2.27 meters, and a transport height of 2 meters.

What are the undercarriage specifications of the SDLG LG690E?

The SDLG LG690E has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the SDLG LG690E crawler excavator?

The SDLG LG690E has a dredging depth of 4.16 meters, a maximum horizontal reach of 6.33 meters, and features a Monobloc boom.

What are the power ratings of the SDLG LG690E?

The power ratings of the SDLG LG690E are not provided in the available data.

What is the bucket capacity of the SDLG LG690E crawler excavator?

The bucket capacity of the SDLG LG690E crawler excavator is 0.32 cubic meters.

How much is a SDLG LG690E Crawler excavator (2013u20132025) worth?

The residual value of the SDLG LG690E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
