TC 85 Schaeff excavator specs & Dimensions (2017 - 2020)

Schaeff TC 85 is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 8.2 tons and a track width of 450 mm. The …

Schaeff TC 85 is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 8.2 tons and a track width of 450 mm. The transport dimensions are 6.575 meters in length, 2.33 meters in width, and 2.63 meters in height. The excavator features a tear-out force of 42.6 kN, a dredging depth of 4.52 meters, and a maximum horizontal reach of 7.65 meters. The bucket width is 0.4 meters with a capacity of 0.127 cubic meters. Special equipment includes a blade, overload alert, and a mechanical quick hitch.

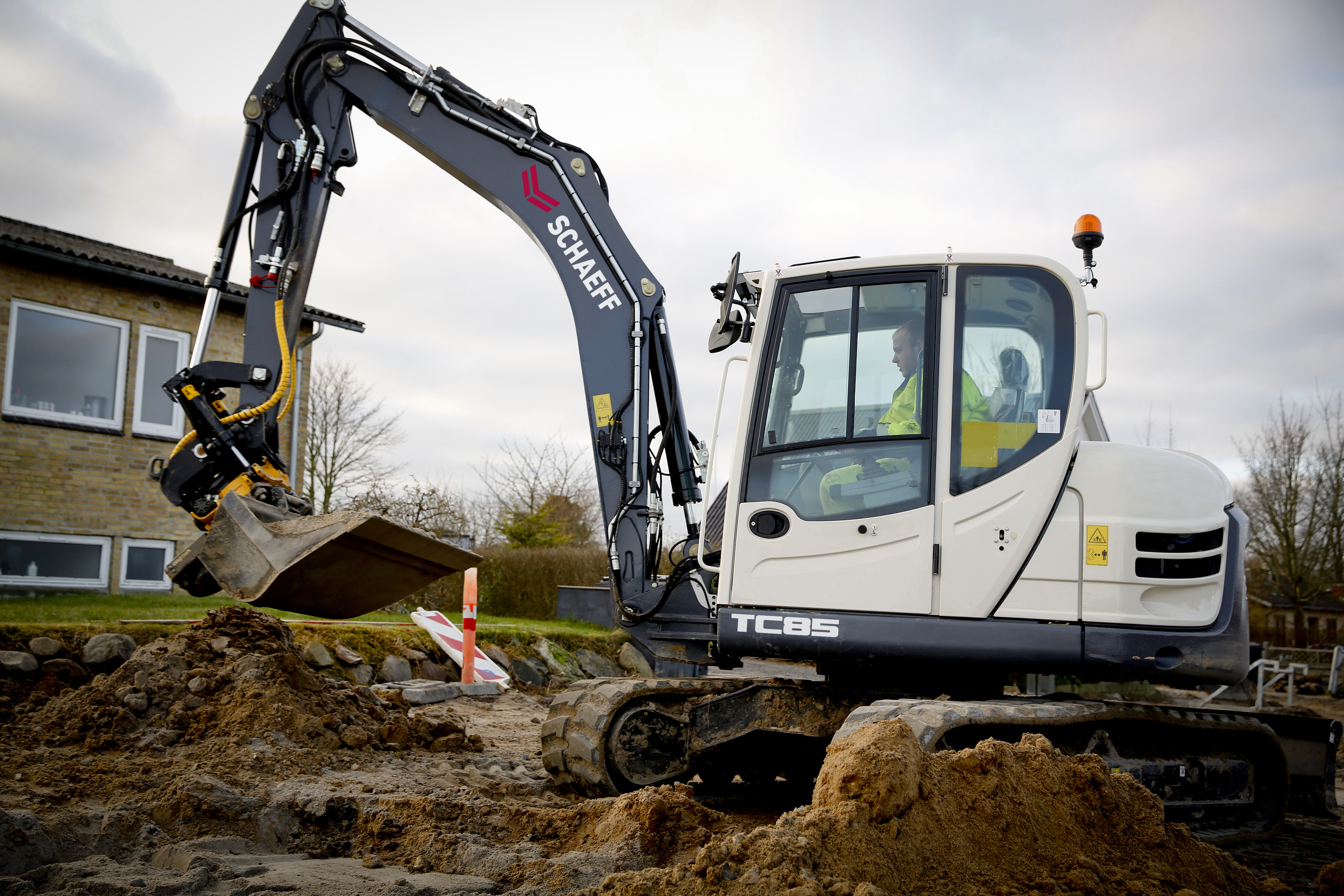

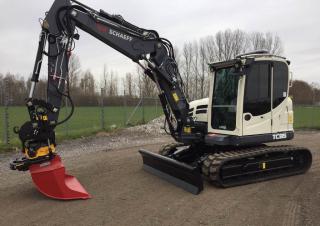

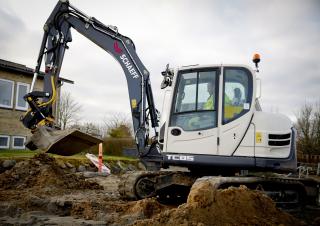

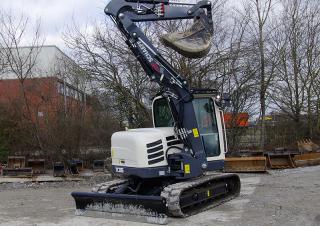

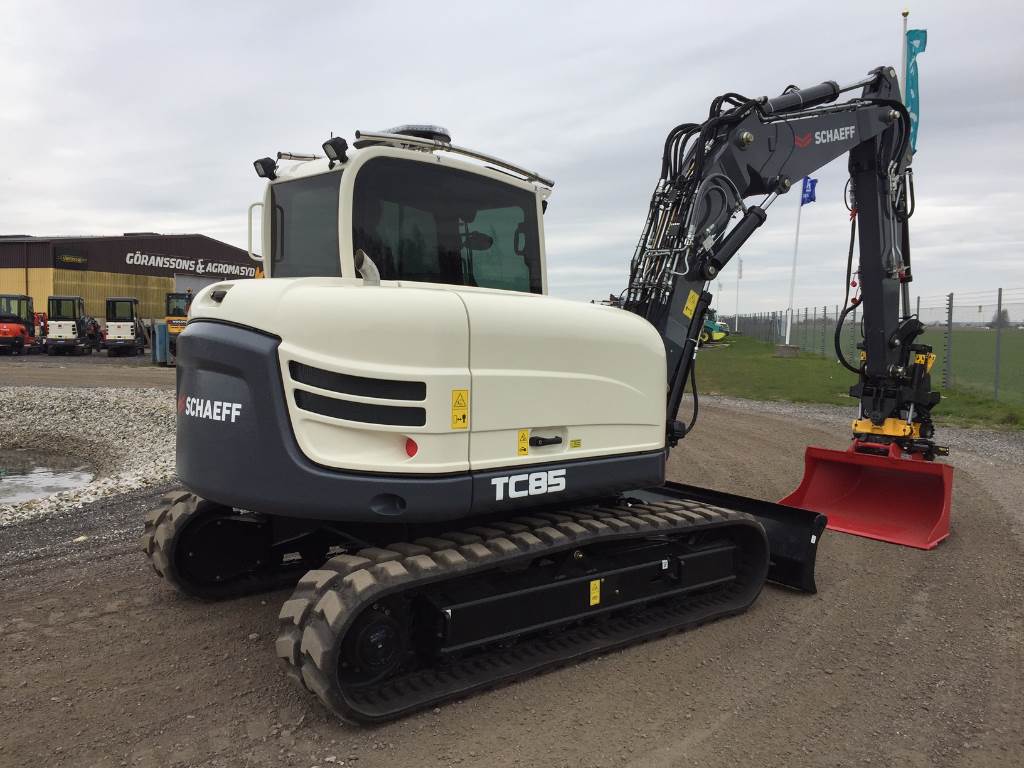

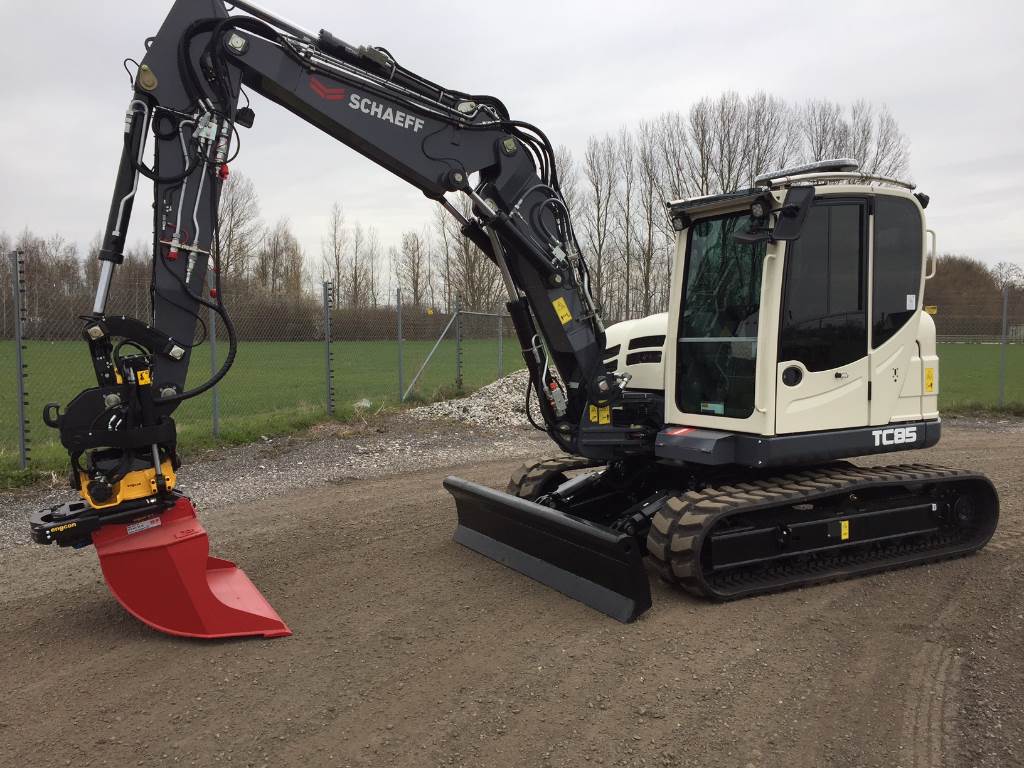

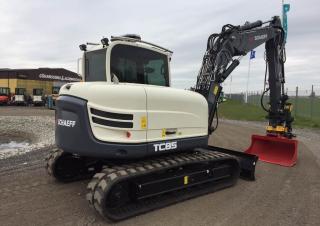

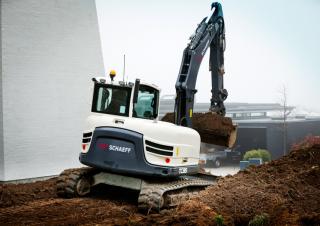

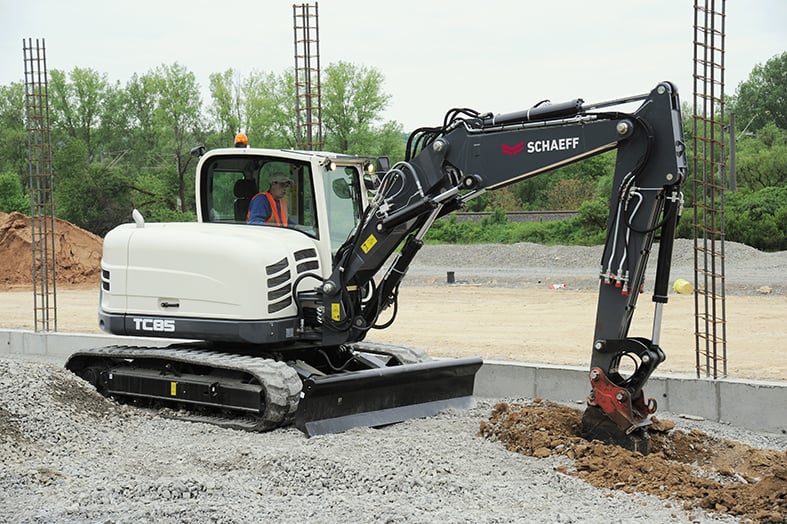

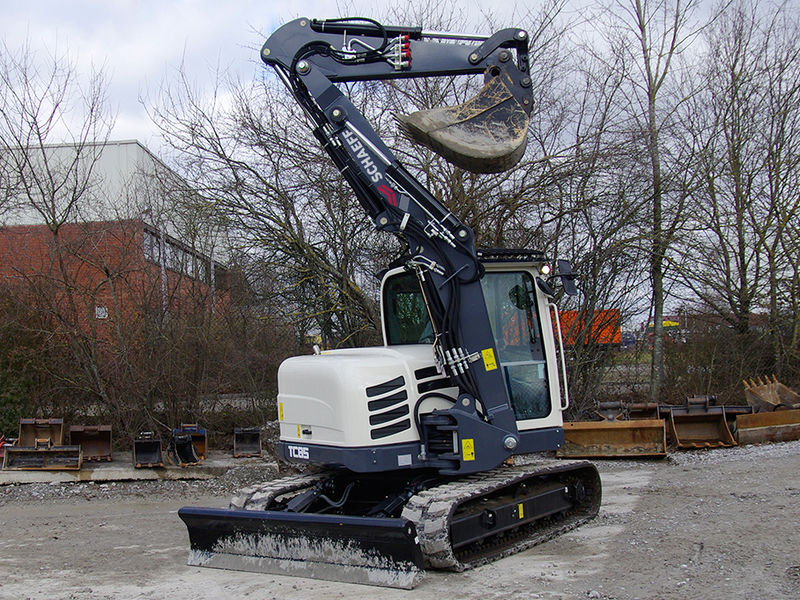

Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85
Crawler Excavators Schaeff TC 85

Technical specs - TC 85 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.2 t
Transport length
6.575 m
Transport width
2.33 m
Transport height
2.63 m
Bucket capacity
0.127 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
7.65 m
Dredging depth
4.52 m
Tear-out force
42.6 kN
Bucket width
0.4 m
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Displacement
2.9 l
Revolutions at max torque
1600 rpm
Max. torque
300 Nm
No. of cylinders
4
Cylinder bore x stroke
92x110 mm
Emission level
EU IIIB / T4F

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TC 85 FAQ

When was the Schaeff TC 85 manufactured?

The Schaeff TC 85 was manufactured from 2017 to 2020.

How much does the Schaeff TC 85 weigh?

The Schaeff TC 85 weighs 8.2 tons.

What are the transport dimensions of the Schaeff TC 85 crawler excavator?

The Schaeff TC 85 has a transport length of 6.58 meters, a transport width of 2.33 meters, and a transport height of 2.63 meters.

What are the undercarriage specifications of the Schaeff TC 85?

The Schaeff TC 85 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Schaeff TC 85?

The Schaeff TC 85 has a dredging depth of 4.52 meters, a maximum horizontal reach of 7.65 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Schaeff TC 85?

The Schaeff TC 85 has a tear-out force of 42.6 kN.

What are the specifications of the primary work tool on the Schaeff TC 85?

The primary work tool of the Schaeff TC 85 has a bucket capacity of 0.127 cubic meters and a bucket width of 0.4 meters.
