TC 85 Schaeff excavator specs & Dimensions (2017 - 2020)

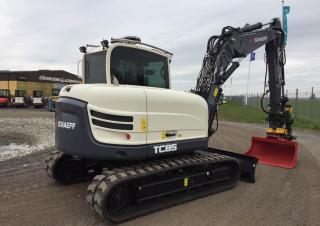

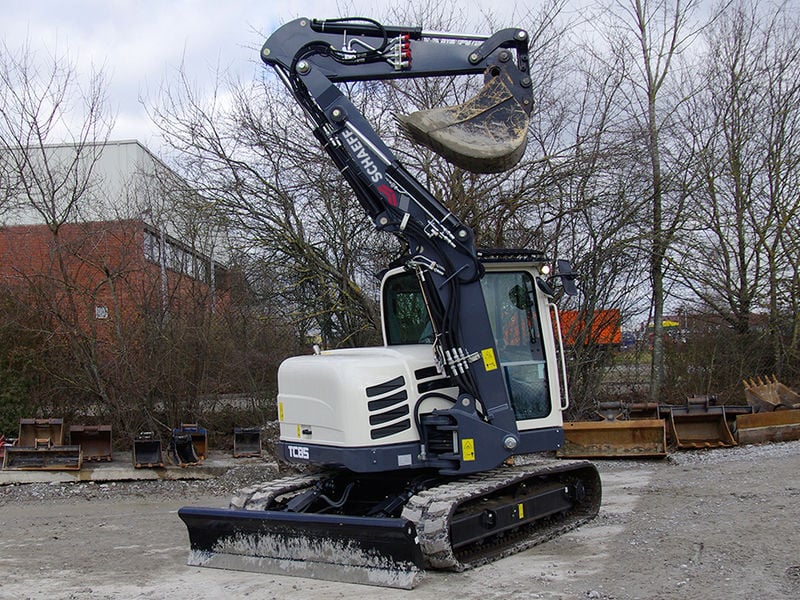

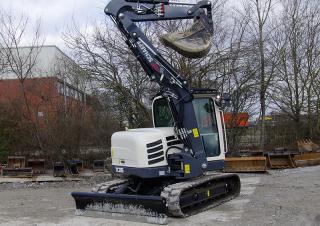

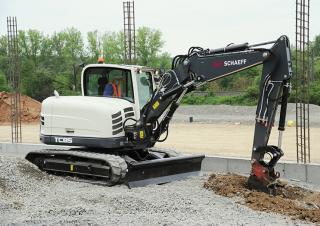

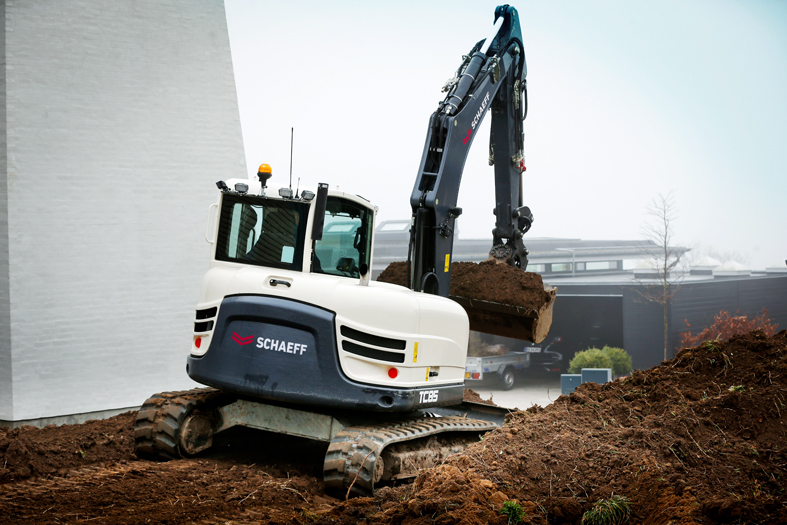

Schaeff TC 85 is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 8.6 tons and a track width of 450 mm. The …

Schaeff TC 85 is a Crawler Excavator manufactured from 2017 to 2020. It has a weight of 8.6 tons and a track width of 450 mm. The transport dimensions are 5.96 meters in length, 2.33 meters in width, and 2.6 meters in height. The excavator features a tear-out force of 42.6 kN, a dredging depth of 4.35 meters, and a maximum horizontal reach of 7.55 meters. The bucket width is 0.4 meters with a capacity of 0.127 cubic meters. Special equipment includes a blade, overload alert, and a mechanical quick hitch.

TC 85

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TC 85 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.6 t

Transport length: 5.96 m

Transport width: 2.33 m

Transport height: 2.6 m

Bucket capacity: 0.127 m³

Undercarriage: SL

Track width: 450 mm

Boom: VA

Max. Reach horizontal: 7.55 m

Dredging depth: 4.35 m

Tear-out force: 42.6 kN

Bucket width: 0.4 m

Engine manuf.: Deutz

Engine type: TCD2.9 L4

Engine power: 55 kW

Displacement: 2.9 l

Revolutions at max torque: 1600 rpm

Emission level: 3b

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: Yes
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Schaeff TC 85 FAQ

When was the Schaeff TC 85 manufactured?

The Schaeff TC 85 was manufactured from 2017 to 2020.

How much does the Schaeff TC 85 weigh?

The Schaeff TC 85 weighs 8.6 tons.

What are the transport dimensions of the Schaeff TC 85 crawler excavator?

The Schaeff TC 85 has a transport length of 5.96 meters, a transport width of 2.33 meters, and a transport height of 2.6 meters.

What are the undercarriage specifications of the Schaeff TC 85?

The Schaeff TC 85 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Schaeff TC 85?

The Schaeff TC 85 has a dredging depth of 4.35 meters, a maximum horizontal reach of 7.55 meters, and features an adjustable boom.

What power ratings are available for the Schaeff TC 85?

The source data does not provide any power ratings for the Schaeff TC 85.

What are the specifications of the primary work tool bucket on the Schaeff TC 85?

The primary work tool bucket of the Schaeff TC 85 has a capacity of 0.127 cubic meters and a width of 0.4 meters.

How much is a Schaeff TC 85 Crawler excavator (2017u20132020) worth?

The residual value of the Schaeff TC 85 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
