SE 280 LC-3 Samsung excavator specs & Dimensions (1999 - 2026)

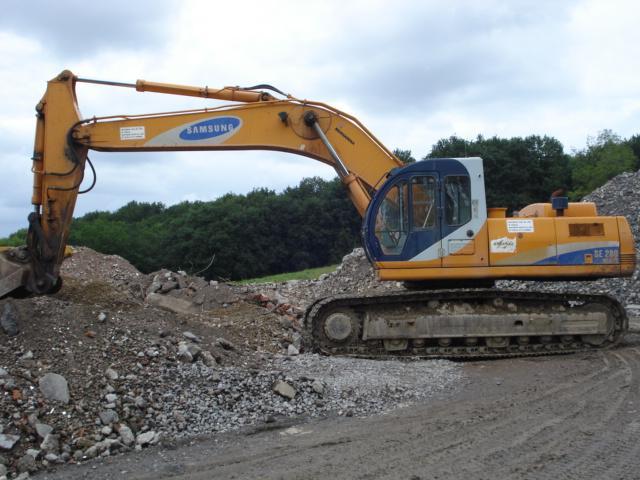

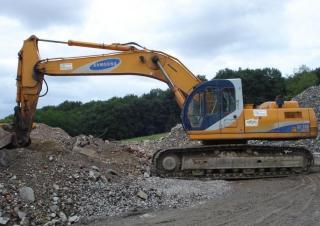

Samsung SE 280 LC-3 is a Crawler Excavator manufactured since 1999. It has a weight of 29 tons and a track width of 900 mm. The tr…

Samsung SE 280 LC-3 is a Crawler Excavator manufactured since 1999. It has a weight of 29 tons and a track width of 900 mm. The transport dimensions are 10 meters in length, 3 meters in width, and 3 meters in height. The maximum horizontal reach is 11,575 meters. The bucket width is 1.641 meters, and the maximum bucket capacity is 1 cubic meter.

Crawler Excavators Samsung SE 280 LC-3

Technical specs - SE 280 LC-3 Samsung

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29 t
Transport length
10 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
900 mm
Boom
MB
Max. Reach horizontal
11.575 m
Dredging depth
8.3 m
Tear-out force
290.37 kN
Bucket width
1.641 m
Engine manuf.
Cummins
Engine type
C8.3-C
Engine power
160 kW
Displacement
8.27 l
Revolutions at max torque
1300 rpm
Max. torque
853.2 Nm
No. of cylinders
6
Cylinder bore x stroke
114 x 135 mm

More technical details, like: bucket capacity, bucket capacity min., model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Samsung SE 280 LC-3 FAQ

When was the Samsung SE 280 LC-3 manufactured?

The Samsung SE 280 LC-3 was first produced in 1999.

How much does the Samsung SE 280 LC-3 weigh?

The Samsung SE 280 LC-3 weighs 29 tons.

What are the transport dimensions of the Samsung SE 280 LC-3?

The Samsung SE 280 LC-3 has a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Samsung SE 280 LC-3?

The Samsung SE 280 LC-3 has a long undercarriage with a track width of 900 mm.

What are the excavation performance specifications of the Samsung SE 280 LC-3?

The Samsung SE 280 LC-3 has a dredging depth of 8.3 meters, a maximum horizontal reach of 11.575 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Samsung SE 280 LC-3?

The Samsung SE 280 LC-3 has a tear-out force of 290.37 kN.

What are the specifications of the primary work tool on the Samsung SE 280 LC-3?

The primary work tool of the Samsung SE 280 LC-3 has a maximum bucket capacity of 1 cubic meter and a bucket width of 1.641 meters.

How much is a Samsung SE 280 LC-3 Crawler excavator (1999u20132025) worth?

The residual value of the Samsung SE 280 LC-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
