SE 280 LC-2 Samsung excavator specs & Dimensions (1995 - 2026)

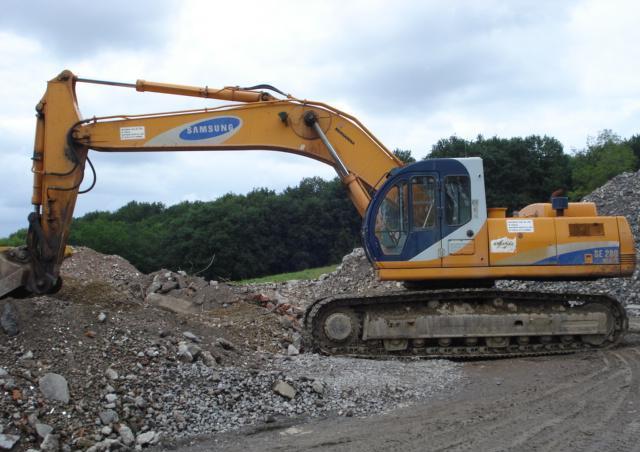

Samsung SE 280 LC-2 is a crawler excavator manufactured since 1995. It has a weight of 29 tons and a track width of 800 mm. The tr…

Samsung SE 280 LC-2 is a crawler excavator manufactured since 1995. It has a weight of 29 tons and a track width of 800 mm. The transport dimensions are 10 meters in length, 3 meters in width, and 3 meters in height. The machine features a tear-out force of 162 kN, a dredging depth of 7 meters, and a maximum horizontal reach of 10 meters. The bucket width is 1 meter with a maximum capacity of 1 cubic meter. Special equipment includes air conditioning.

Crawler Excavators Samsung SE 280 LC-2

Technical specs - SE 280 LC-2 Samsung

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.95 t
Transport length
10.54 m
Transport width
3.39 m
Transport height
3.37 m
Bucket capacity min.
0.6 m³
Bucket capacity max.
1.5 m³
Undercarriage
LC
Track width
800 mm
Boom
MB
Max. Reach horizontal
10.78 m
Dredging depth
7.5 m
Tear-out force
162.79 kN
Bucket width
1.23 m
Engine manuf.
Cummins
Engine type
6CT8.3-C
Engine power
132 kW
Revolutions at max torque
1500 rpm
Max. torque
745.7 Nm
No. of cylinders
6

More technical details, like: bucket capacity, model series, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Samsung SE 280 LC-2 FAQ

When was the Samsung SE 280 LC-2 manufactured?

The Samsung SE 280 LC-2 was first produced in 1995.

How much does the Samsung SE 280 LC-2 weigh?

The Samsung SE 280 LC-2 weighs 29.95 tons.

What are the transport dimensions of the Samsung SE 280 LC-2 crawler excavator?

The Samsung SE 280 LC-2 has a transport length of 10.54 meters, a transport width of 3.39 meters, and a transport height of 3.37 meters.

What are the undercarriage specifications of the Samsung SE 280 LC-2?

The Samsung SE 280 LC-2 has a long undercarriage and a track width of 800 mm.

What are the excavation performance specifications of the Samsung SE 280 LC-2?

The Samsung SE 280 LC-2 has a dredging depth of 7.5 meters, a maximum horizontal reach of 10.78 meters, and features a monobloc boom.

What power ratings are available for the Samsung SE 280 LC-2?

There are no power ratings provided for the Samsung SE 280 LC-2 in the available data.

What are the bucket specifications of the Samsung SE 280 LC-2 crawler excavator?

The Samsung SE 280 LC-2 has a maximum bucket capacity of 1.5 cubic meters and a bucket width of 1.23 meters.

How much is a Samsung SE 280 LC-2 Crawler excavator (1995u20132025) worth?

The residual value of the Samsung SE 280 LC-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
