RH 6 Compact O&K excavator specs & Dimensions (1997 - 2004)

Model rating
7,50 / 10

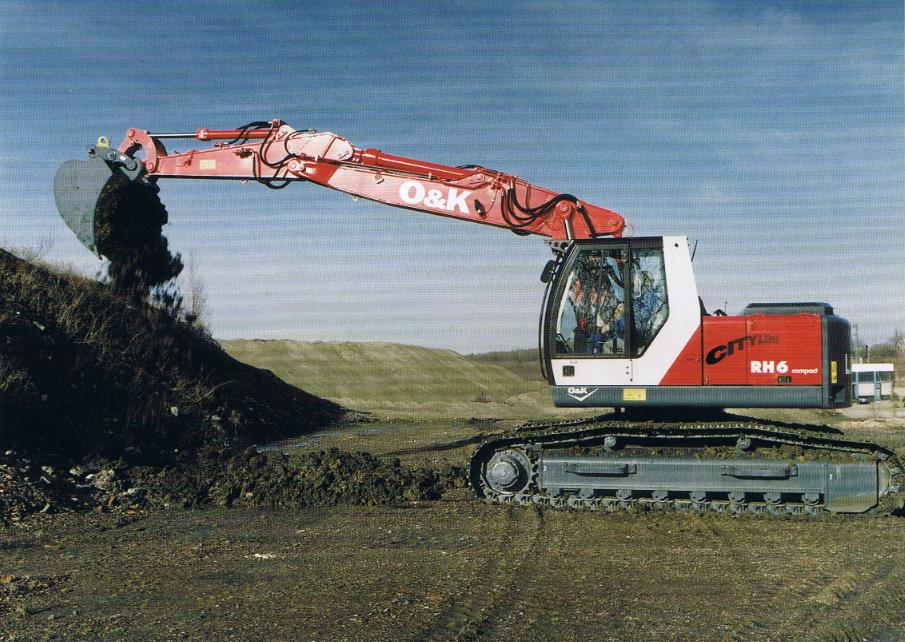

O&K RH 6 Compact is a crawler excavator manufactured from 1997 to 2004. It has a weight of 19.9 tons, a track width of 600 mm, a t…

O&K RH 6 Compact is a crawler excavator manufactured from 1997 to 2004. It has a weight of 19.9 tons, a track width of 600 mm, a transport length of 8.45 meters, a transport width of 2.5 meters, and a transport height of 3 meters. The tear-out force of this excavator is 112 kN.

Crawler Excavators O&K RH 6 Compact

Technical specs - RH 6 Compact O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Transport length
8.45 m
Transport width
2.5 m
Transport height
3 m
Bucket capacity
0.95 m³
Undercarriage
SL
Track width
600 mm
Max. Reach horizontal
8.3 m
Dredging depth
5.8 m
Tear-out force
112 kN
Bucket width
1.2 m
Model series
RH
Engine manuf.
Deutz
Engine type
BF6M1012E
Engine power
90 kW
Displacement
4.788 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., boom, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K RH 6 Compact FAQ

When was the O&K RH 6 Compact manufactured?

The O&K RH 6 Compact was manufactured from 1997 to 2004.

How much does the O&K RH 6 Compact weigh?

The O&K RH 6 Compact weighs 19.9 tons.

What are the transport dimensions of the O&K RH 6 Compact crawler excavator?

The O&K RH 6 Compact has a transport length of 8.45 meters, a transport width of 2.5 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the O&K RH 6 Compact?

The O&K RH 6 Compact has a standard undercarriage with a track width of 600 mm.

What are the excavation specifications of the O&K RH 6 Compact?

The O&K RH 6 Compact has a dredging depth of 5.8 meters and a maximum horizontal reach of 8.3 meters.

What is the tear-out force of the O&K RH 6 Compact?

The O&K RH 6 Compact has a tear-out force of 112 kN.

What are the specifications of the bucket on the O&K RH 6 Compact crawler excavator?

The bucket of the O&K RH 6 Compact has a capacity of 0.95 cubic meters and a width of 1.2 meters.
