E305C LC New Holland excavator specs & Dimensions (2011 - 2015)

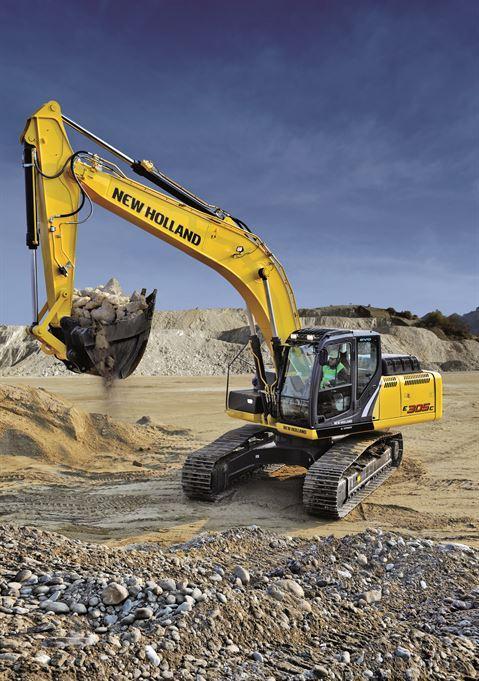

New Holland E305C LC is a Crawler Excavator manufactured from 2011 to 2015, with a weight of 30.6 t. It features a track width of …

New Holland E305C LC is a Crawler Excavator manufactured from 2011 to 2015, with a weight of 30.6 t. It features a track width of 600 mm, a transport length of 20.39 m, a transport width of 3.2 m, and a transport height of 3.445 m. The excavator has a tear-out force of 209 kN, a dredging depth of 6.5 m, and a maximum horizontal reach of 10.4 m. It comes with a bucket width of 1.8 m and a bucket capacity of 1.6 m³. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC
Crawler Excavators New Holland E305C LC

Technical specs - E305C LC New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.6 t
Transport length
20.39 m
Transport width
3.2 m
Transport height
3.445 m
Bucket capacity
1.6 m³
Undercarriage
LC
Track width
600 mm
Boom
VA
Max. Reach horizontal
10.4 m
Dredging depth
6.5 m
Tear-out force
209 kN
Bucket width
1.8 m
Model series
E
Engine manuf.
CNH
Engine type
F4HFE613S-A004
Engine power
142 kW
Displacement
6.7 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E305C LC FAQ

When was the New Holland E305C LC manufactured?

The New Holland E305C LC was manufactured from 2011 to 2015.

How much does the New Holland E305C LC weigh?

The New Holland E305C LC weighs 30.6 tons.

What are the transport dimensions of the New Holland E305C LC crawler excavator?

The New Holland E305C LC has a transport length of 20.39 meters, a transport width of 3.2 meters, and a transport height of 3.45 meters.

What are the undercarriage specifications of the New Holland E305C LC?

The New Holland E305C LC has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the New Holland E305C LC?

The New Holland E305C LC has a dredging depth of 6.5 meters, a maximum horizontal reach of 10.4 meters, and features an adjustable boom.

What is the tear-out force of the New Holland E305C LC?

The New Holland E305C LC has a tear-out force of 209 kN.

What are the bucket specifications of the New Holland E305C LC excavator?

The New Holland E305C LC excavator has a bucket capacity of 1.6 cubic meters and a bucket width of 1.8 meters.

How much is a New Holland E305C LC Crawler excavator (2011u20132015) worth?

The residual value of the New Holland E305C LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
