E245C EVO New Holland excavator specs & Dimensions (2022 - 2026)

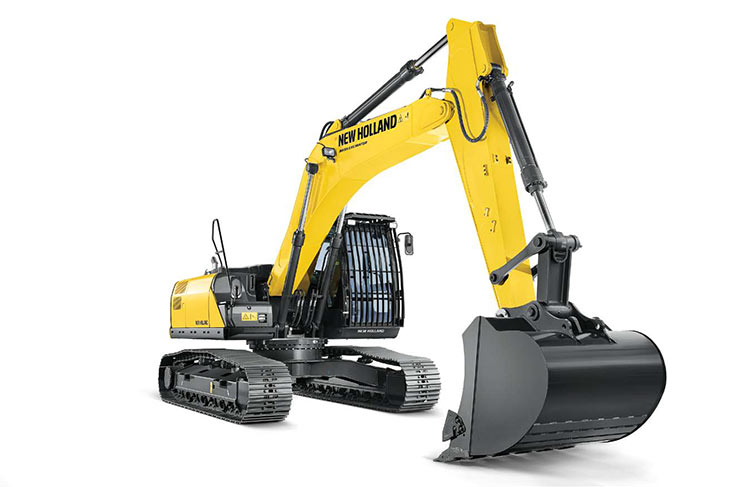

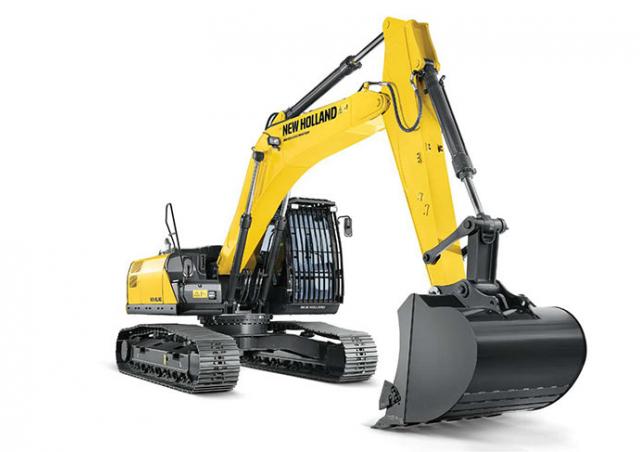

New Holland E245C EVO is a Crawler Excavator manufactured since 2022, with a weight of 24.589 t. It features a track width of 600 …

New Holland E245C EVO is a Crawler Excavator manufactured since 2022, with a weight of 24.589 t. It features a track width of 600 mm, a transport length of 11.23 m, a transport width of 3.2 m, and a transport height of 3.64 m. The excavator has a tear-out force of 188 kN, a dredging depth of 5.702 m, and a maximum horizontal reach of 8.725 m. It comes with a bucket capacity of 1.5 m³ and includes special equipment such as air conditioning, cabin adjustment, and track adjustment.

Crawler Excavators New Holland E245C EVO

Technical specs - E245C EVO New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.589 t
Transport length
11.23 m
Transport width
3.2 m
Transport height
3.64 m
Bucket capacity
1.5 m³
Bucket capacity max.
1.5 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.725 m
Dredging depth
5.702 m
Tear-out force
188 kN
Engine manuf.
FPT
Engine type
NEF6
Engine power
116.9 kW
Displacement
6.73 l
Revolutions at max torque
1600 rpm
Max. torque
556.3 Nm
No. of cylinders
6
Cylinder bore x stroke
104 x 132 mm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket width, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E245C EVO FAQ

When was the New Holland E245C EVO manufactured?

The New Holland E245C EVO was first produced in 2022.

How much does the New Holland E245C EVO weigh?

The New Holland E245C EVO weighs 24.59 tons.

What are the transport dimensions of the New Holland E245C EVO crawler excavator?

The New Holland E245C EVO has a transport length of 11.23 meters, a transport width of 3.2 meters, and a transport height of 3.64 meters.

What are the undercarriage specifications of the New Holland E245C EVO?

The New Holland E245C EVO has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E245C EVO?

The New Holland E245C EVO has a dredging depth of 5.702 meters, a maximum horizontal reach of 8.725 meters, and is equipped with a monobloc boom.

What is the tear-out force of the New Holland E245C EVO?

The New Holland E245C EVO has a tear-out force of 188 kN.

What is the bucket capacity of the New Holland E245C EVO crawler excavator?

The New Holland E245C EVO crawler excavator has a bucket capacity of 1.5 cubic meters.

How much is a New Holland E245C EVO Crawler excavator (2022u20132025) worth?

The residual value of the New Holland E245C EVO depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
