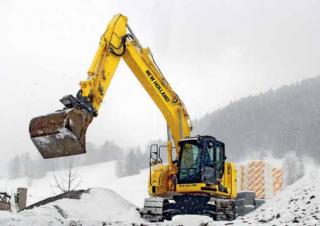

E230C SR New Holland excavator specs & Dimensions (2012 - 2015)

New Holland E230C SR is a Crawler Excavator manufactured from 2012 to 2015. It has a weight of 24.6 t and a track width of 600 mm.…

New Holland E230C SR is a Crawler Excavator manufactured from 2012 to 2015. It has a weight of 24.6 t and a track width of 600 mm. The transport dimensions are 8.68 m in length, 2.8 m in width, and 3.13 m in height. The machine features a tear-out force of 96 kN, a dredging depth of 6.59 m, and a maximum horizontal reach of 10.57 m. The bucket width is 1.4 m with a capacity of 1.1 m³. Special equipment includes air conditioning, a blade, and an overload alert system.

Crawler Excavators New Holland E230C SR

Technical specs - E230C SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.6 t
Transport length
8.68 m
Transport width
2.8 m
Transport height
3.13 m
Bucket capacity
1.1 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.57 m
Dredging depth
6.59 m
Tear-out force
96 kN
Bucket width
1.4 m
Model series
E
Engine manuf.
Hino
Engine type
J 05 E-TI
Engine power
124 kW
Displacement
5.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E230C SR FAQ

When was the New Holland E230C SR manufactured?

The New Holland E230C SR was manufactured from 2012 to 2015.

How much does the New Holland E230C SR weigh?

The New Holland E230C SR weighs 24.6 tons.

What are the transport dimensions of the New Holland E230C SR?

The New Holland E230C SR has a transport length of 8.68 meters, a transport width of 2.8 meters, and a transport height of 3.13 meters.

What are the undercarriage specifications of the New Holland E230C SR?

The New Holland E230C SR has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E230C SR?

The New Holland E230C SR has a dredging depth of 6.59 meters, a maximum horizontal reach of 10.57 meters, and features a monobloc boom.

What is the tear-out force of the New Holland E230C SR?

The New Holland E230C SR has a tear-out force of 96 kN.

What are the specifications of the primary work tool bucket on the New Holland E230C SR?

The primary work tool bucket of the New Holland E230C SR has a capacity of 1.1 cubic meters and a width of 1.4 meters.
