E 305 B LC New Holland excavator specs & Dimensions (2008 - 2011)

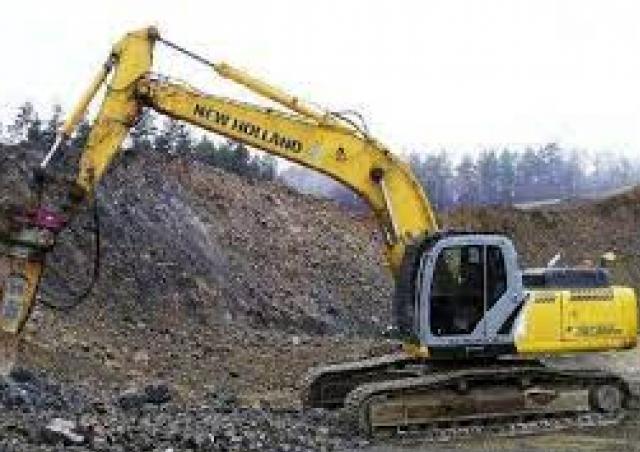

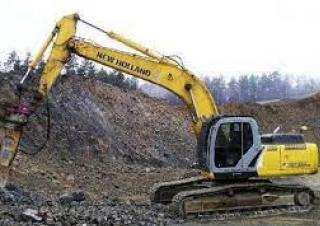

New Holland E 305 B LC is a crawler excavator manufactured from 2008 to 2011, with a weight of 30.62 tons. It has a transport leng…

New Holland E 305 B LC is a crawler excavator manufactured from 2008 to 2011, with a weight of 30.62 tons. It has a transport length of 10.32 meters, a transport width of 2.99 meters, and a transport height of 3.17 meters.

Crawler Excavators New Holland E 305 B LC

Technical specs - E 305 B LC New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.62 t
Transport length
10.32 m
Transport width
2.99 m
Transport height
3.17 m
Bucket capacity
1.6 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.61 m
Model series
E
Engine manuf.
CNH
Engine type
667TA-EEA
Engine power
152 kW
Displacement
6.7 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

New Holland E 305 B LC FAQ

When was the New Holland E 305 B LC manufactured?

The New Holland E 305 B LC was manufactured from 2008 to 2011.

How much does the New Holland E 305 B LC weigh?

The New Holland E 305 B LC weighs 30.62 tons.

What are the transport dimensions of the New Holland E 305 B LC crawler excavator?

The New Holland E 305 B LC has a transport length of 10.32 meters, a transport width of 2.99 meters, and a transport height of 3.17 meters.

What are the undercarriage specifications of the New Holland E 305 B LC?

The New Holland E 305 B LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the New Holland E 305 B LC?

The New Holland E 305 B LC has a maximum horizontal reach of 9.61 meters and features a monobloc boom.

What is the bucket capacity of the New Holland E 305 B LC excavator?

The bucket capacity of the New Holland E 305 B LC is 1.6 cubic meters.

How much is a New Holland E 305 B LC Crawler excavator (2008u20132011) worth?

The residual value of the New Holland E 305 B LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
