E 195 B EL New Holland excavator specs & Dimensions (2007 - 2011)

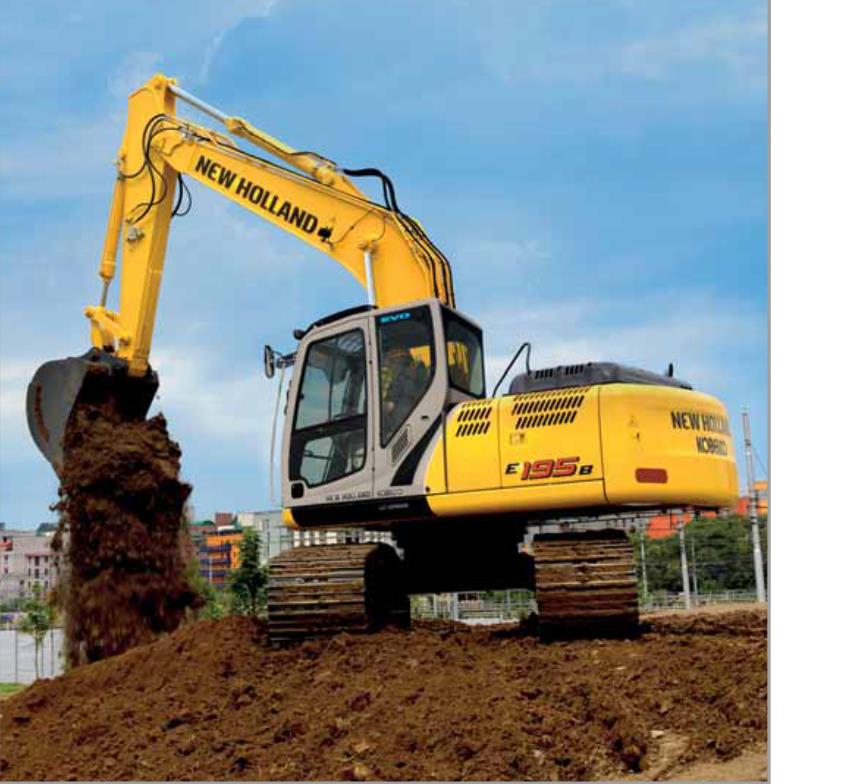

New Holland E 195 B EL is a crawler excavator manufactured from 2007 to 2011, with a weight of 19.8 tons.

Crawler Excavators New Holland E 195 B EL

Technical specs - E 195 B EL New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.8 t
Bucket capacity
0.9 m³
Track width
700 mm
Boom
MB
Max. Reach horizontal
8.79 m
Dredging depth
5.45 m
Tear-out force
13.2 kN
Model series
E
Engine manuf.
CNH
Engine type
445TA-MLF
Engine power
93 kW
Displacement
4.5 l
Revolutions at max torque
2200 rpm

More technical details, like: transport length, transport width, transport height, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E 195 B EL FAQ

When was the New Holland E 195 B EL manufactured?

The New Holland E 195 B EL was manufactured from 2007 to 2011.

How much does the New Holland E 195 B EL weigh?

The New Holland E 195 B EL weighs 19.8 tons.

What is the track width of the New Holland E 195 B EL's undercarriage?

The New Holland E 195 B EL has a track width of 700 mm.

What are the excavation performance specifications of the New Holland E 195 B EL?

The New Holland E 195 B EL has a dredging depth of 5.45 meters, a maximum horizontal reach of 8.79 meters, and features a monobloc boom.

What is the tear-out force of the New Holland E 195 B EL, given that no power rating data is available?

The New Holland E 195 B EL has a tear-out force of 13.2 kN. No power rating data is provided in the available information.

What is the bucket capacity of the New Holland E 195 B EL excavator?

The New Holland E 195 B EL excavator has a bucket capacity of 0.9 cubic meters.

How much is a New Holland E 195 B EL Crawler excavator (2007u20132011) worth?

The residual value of the New Holland E 195 B EL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
