E 175 B New Holland excavator specs & Dimensions (2007 - 2011)

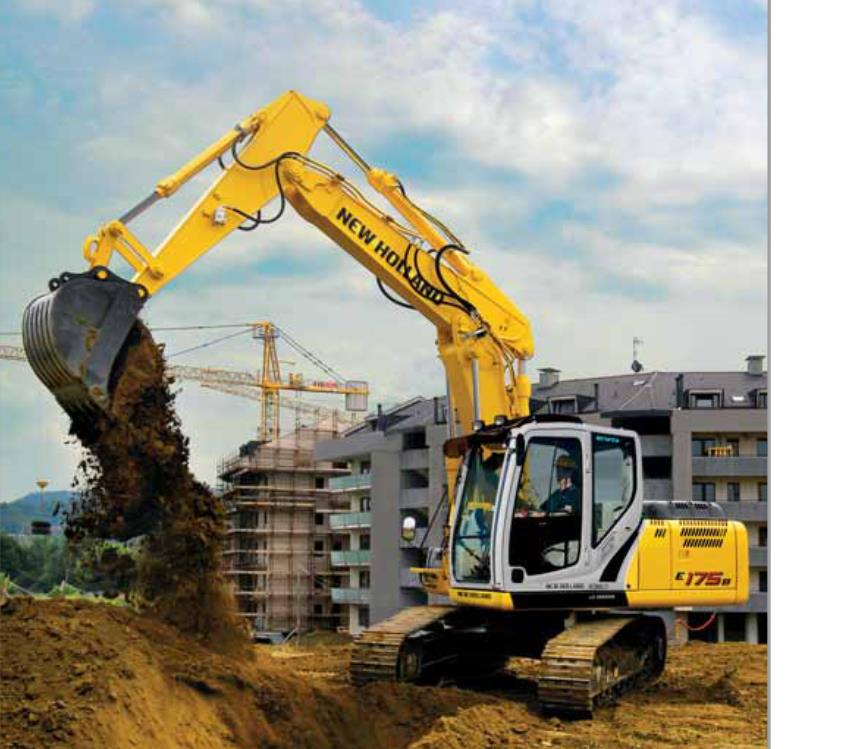

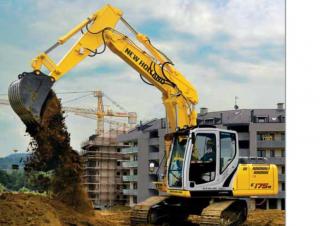

New Holland E 175 B is a crawler excavator manufactured from 2007 to 2011, with a weight of 18.7 tons. It features a track width o…

New Holland E 175 B is a crawler excavator manufactured from 2007 to 2011, with a weight of 18.7 tons. It features a track width of 600 mm, a transport length of 8.7 meters, a transport width of 2.59 meters, and a transport height of 3.01 meters. The excavator is equipped with air conditioning and a blade.

Crawler Excavators New Holland E 175 B

Technical specs - E 175 B New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.7 t
Transport length
8.7 m
Transport width
2.59 m
Transport height
3.01 m
Bucket capacity
0.9 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.155 m
Dredging depth
5.4 m
Tear-out force
12.05 kN
Model series
E
Engine manuf.
CNH
Engine type
445TA-MLF
Engine power
93 kW
Displacement
4.5 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E 175 B FAQ

When was the New Holland E 175 B manufactured?

The New Holland E 175 B was manufactured from 2007 to 2011.

How much does the New Holland E 175 B weigh?

The New Holland E 175 B weighs 18.7 tons.

What are the transport dimensions of the New Holland E 175 B crawler excavator?

The New Holland E 175 B has a transport length of 8.7 meters, a transport width of 2.59 meters, and a transport height of 3.01 meters.

What are the undercarriage specifications of the New Holland E 175 B crawler excavator?

The New Holland E 175 B crawler excavator has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the New Holland E 175 B?

The New Holland E 175 B has a dredging depth of 5.4 meters, a maximum horizontal reach of 9.155 meters, and features a monobloc boom.

What is the tear-out force of the New Holland E 175 B crawler excavator?

The New Holland E 175 B crawler excavator has a tear-out force of 12.05 kN.

What is the bucket capacity of the New Holland E 175 B excavator?

The New Holland E 175 B excavator has a bucket capacity of 0.9 cubic meters.

How much is a New Holland E 175 B Crawler excavator (2007u20132011) worth?

The residual value of the New Holland E 175 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
