E 135 B SR New Holland excavator specs & Dimensions (2008 - 2012)

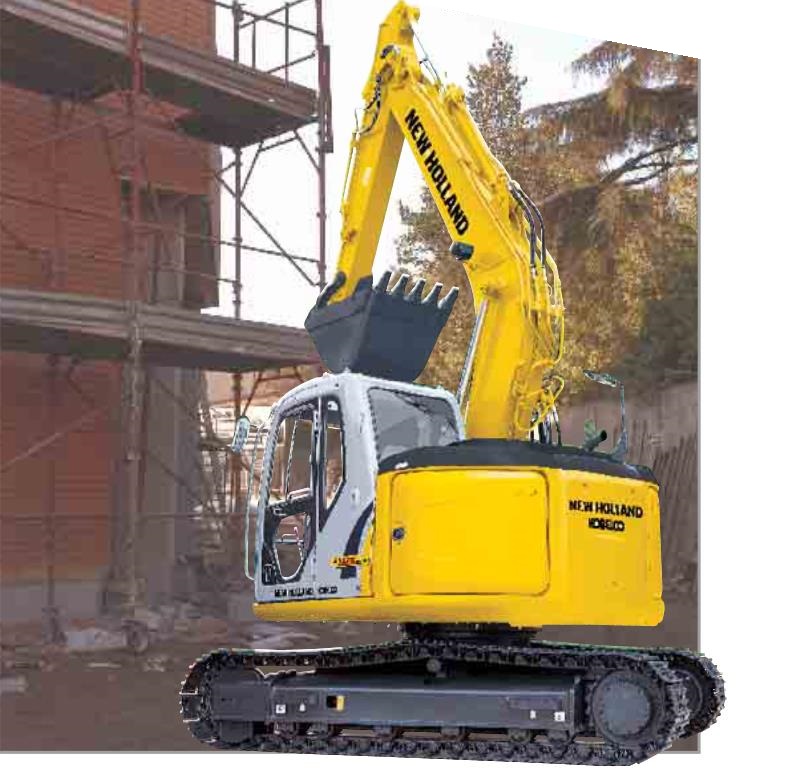

New Holland E 135 B SR is a crawler excavator manufactured from 2008 to 2012. It has a weight of 11.9 tons, a track width of 600 m…

New Holland E 135 B SR is a crawler excavator manufactured from 2008 to 2012. It has a weight of 11.9 tons, a track width of 600 mm, a transport length of 7.47 meters, a transport width of 2.49 meters, and a transport height of 2.81 meters. The excavator features a tear-out force of 90 kN and a bucket width of 1 meter.

Crawler Excavators New Holland E 135 B SR

Technical specs - E 135 B SR New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.9 t
Transport length
7.47 m
Transport width
2.49 m
Transport height
2.81 m
Bucket capacity
0.7 m³
Track width
600 mm
Boom
VA
Max. Reach horizontal
8.83 m
Dredging depth
5.5 m
Tear-out force
90 kN
Bucket width
1 m
Model series
E
Engine manuf.
Mitsubishi
Engine type
D 04 FR
Engine power
74 kW
Displacement
4.249 l
Revolutions at max torque
2000 rpm
Emission level
III

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

New Holland E 135 B SR FAQ

When was the New Holland E 135 B SR manufactured?

The New Holland E 135 B SR was manufactured from 2008 to 2012.

How much does the New Holland E 135 B SR weigh?

The New Holland E 135 B SR weighs 11.9 tons.

What are the transport dimensions of the New Holland E 135 B SR crawler excavator?

The New Holland E 135 B SR has a transport length of 7.47 meters, a transport width of 2.49 meters, and a transport height of 2.81 meters.

What is the track width of the New Holland E 135 B SR crawler excavator?

The New Holland E 135 B SR crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the New Holland E 135 B SR?

The New Holland E 135 B SR has an adjustable boom, a maximum horizontal reach of 8.83 meters, and a dredging depth of 5.5 meters.

What is the tear-out force of the New Holland E 135 B SR?

The New Holland E 135 B SR has a tear-out force of 90 kN.

What are the specifications of the primary work tool on the New Holland E 135 B SR?

The primary work tool of the New Holland E 135 B SR has a bucket capacity of 0.7 cubic meters and a bucket width of 1 meter.
