NR 8.5 Neumeier excavator specs & Dimensions (2011 - 2020)

Neumeier NR 8.5 is a crawler excavator manufactured since 2011, with a weight of 8.1 tons. It features a track width of 450 mm, a …

Neumeier NR 8.5 is a crawler excavator manufactured since 2011, with a weight of 8.1 tons. It features a track width of 450 mm, a transport length of 6.325 meters, and a transport width of 2.595 meters. The excavator is equipped with air conditioning and a blade.

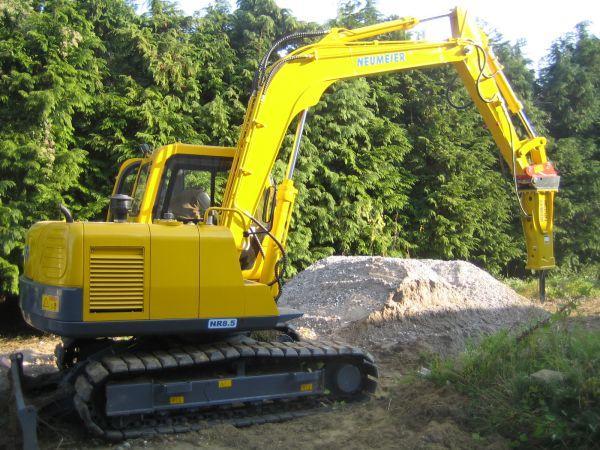

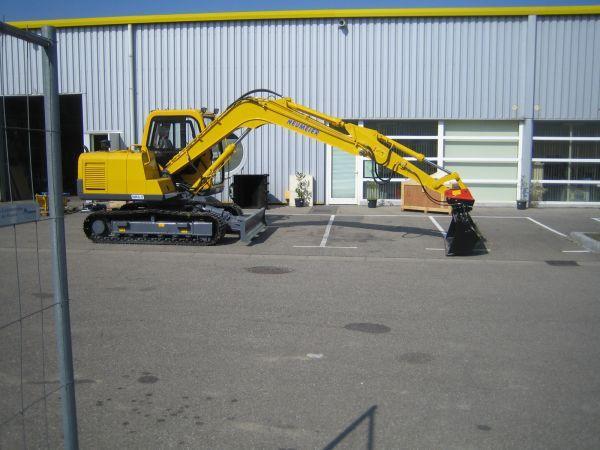

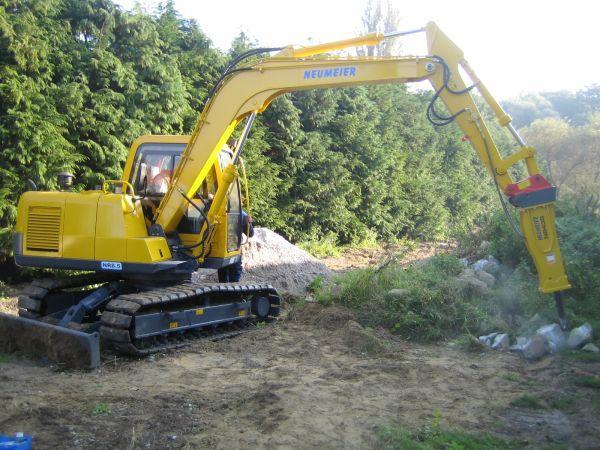

Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5
Crawler Excavators Neumeier NR 8.5

Technical specs - NR 8.5 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Transport length
6.325 m
Transport width
2.595 m
Bucket capacity
0.32 m³
Track width
450 mm
Boom
SKA
Max. Reach horizontal
6.63 m
Dredging depth
4.16 m
Tear-out force
58.27 kN
Model series
NR
Engine manuf.
Kubota
Engine type
k.A.
Engine power
62 kW
Revolutions at max torque
2200 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Neumeier NR 8.5 FAQ

When was the Neumeier NR 8.5 manufactured?

The Neumeier NR 8.5 was first produced in 2011.

How much does the Neumeier NR 8.5 weigh?

The Neumeier NR 8.5 weighs 8.1 tons.

What are the transport dimensions of the Neumeier NR 8.5 crawler excavator?

The Neumeier NR 8.5 has a transport length of 6.33 meters and a transport width of 2.6 meters.

What is the track width of the Neumeier NR 8.5's undercarriage?

The Neumeier NR 8.5 has a track width of 450 mm on its undercarriage.

What are the excavation performance specifications of the Neumeier NR 8.5 crawler excavator?

The Neumeier NR 8.5 has a dredging depth of 4.16 meters, a maximum horizontal reach of 6.63 meters, and features a lateral articulated boom.

What is the power rating of the Neumeier NR 8.5?

There is no power rating data available for the Neumeier NR 8.5 in the provided information.

What is the bucket capacity of the Neumeier NR 8.5 excavator?

The Neumeier NR 8.5 has a bucket capacity of 0.32 cubic meters.

How much is a Neumeier NR 8.5 Crawler excavator (2011u20132025) worth?

The residual value of the Neumeier NR 8.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
