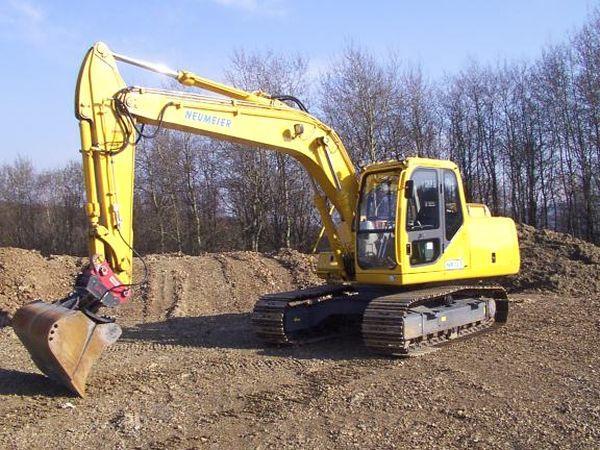

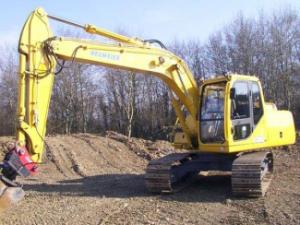

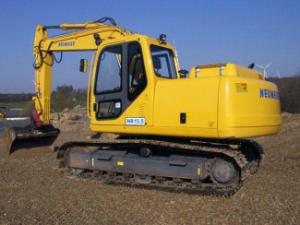

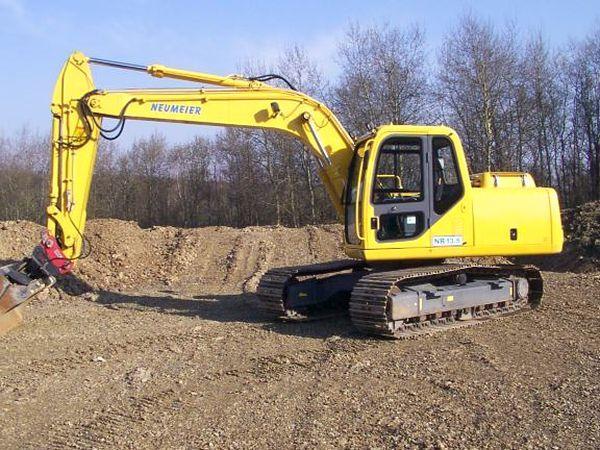

NR 13.5 Neumeier excavator specs & Dimensions (2006 - 2020)

Neumeier NR 13.5 is a crawler excavator manufactured since 2006, with a weight of 13.6 tons. It features a track width of 600 mm, …

Neumeier NR 13.5 is a crawler excavator manufactured since 2006, with a weight of 13.6 tons. It features a track width of 600 mm, a transport length of 7.74 meters, and a transport width of 2.72 meters. The machine has a tear-out force of 110 kN and comes equipped with air conditioning and a blade.

NR 13.5

Years of manufacture: 2006—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - NR 13.5 Neumeier

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.6 t

Transport length: 7.74 m

Transport width: 2.72 m

Bucket capacity: 0.66 m³

Track width: 600 mm

Boom: SKA

Max. Reach horizontal: 8.06 m

Dredging depth: 5.25 m

Tear-out force: 110 kN

Model series: NR

Engine manuf.: Cummins

Engine type: 83.9G

Engine power: 82 kW

Revolutions at max torque: 2200 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: Yes
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

NR 13.5 Neumeier Specification for Europe (DE)

Neumeier NR 13.5 FAQ

When was the Neumeier NR 13.5 manufactured?

The Neumeier NR 13.5 was first produced in 2006.

How much does the Neumeier NR 13.5 weigh?

The Neumeier NR 13.5 weighs 13.6 tons.

What are the transport dimensions of the Neumeier NR 13.5?

The Neumeier NR 13.5 has a transport length of 7.74 meters and a transport width of 2.72 meters.

What is the track width of the Neumeier NR 13.5 crawler excavator?

The Neumeier NR 13.5 crawler excavator has a track width of 600 mm.

What are the excavation performance specifications of the Neumeier NR 13.5 crawler excavator?

The Neumeier NR 13.5 crawler excavator has a dredging depth of 5.25 meters, a maximum horizontal reach of 8.06 meters, and features a lateral articulated boom.

What is the tear-out force of the Neumeier NR 13.5, and are there any power ratings available?

The Neumeier NR 13.5 has a tear-out force of 110 kN. No power ratings are provided in the available data.

What is the bucket capacity of the Neumeier NR 13.5 crawler excavator?

The Neumeier NR 13.5 crawler excavator has a bucket capacity of 0.66 cubic meters.
