1000M Mustang excavator specs & Dimensions (2018 - 2025)

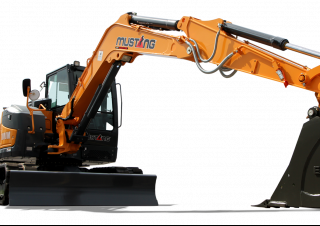

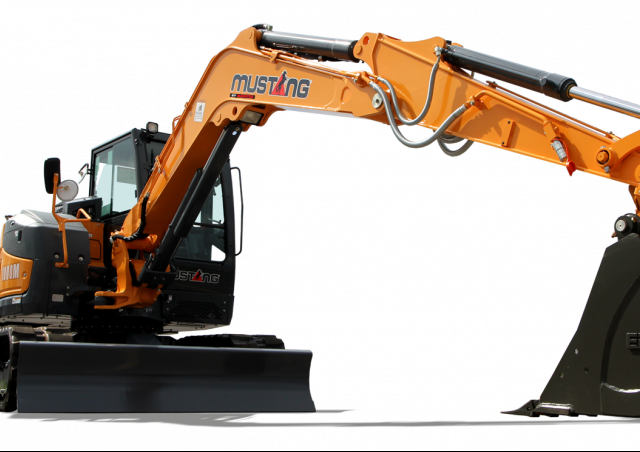

Mustang 1000M is a Crawler Excavator manufactured since 2018. It has a weight of 9.77 tons and a track width of 485 mm. The transp…

Mustang 1000M is a Crawler Excavator manufactured since 2018. It has a weight of 9.77 tons and a track width of 485 mm. The transport dimensions are 6.49 meters in length, 2.32 meters in width, and 2.81 meters in height. The dredging depth is 4.53 meters, and the maximum horizontal reach is 7.4 meters. Special equipment includes air conditioning, a blade, and a hydraulic quick hitch.

Crawler Excavators Mustang 1000M

Technical specs - 1000M Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.77 t
Transport length
6.49 m
Transport width
2.32 m
Transport height
2.81 m
Track width
485 mm
Max. Reach horizontal
7.4 m
Dredging depth
4.53 m
Model series
Compact
Engine manuf.
Yanmar
Engine type
4TNV98CT-VBV
Engine power
51.7 kW
Displacement
3.32 l
Emission level
Tier 4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mustang 1000M FAQ

When was the Mustang 1000M manufactured?

The Mustang 1000M was first produced in 2018.

How much does the Mustang 1000M weigh?

The Mustang 1000M weighs 9.77 tons.

What are the transport dimensions of the Mustang 1000M crawler excavator?

The Mustang 1000M has a transport length of 6.49 meters, a transport width of 2.32 meters, and a transport height of 2.81 meters.

What is the track width of the Mustang 1000M's undercarriage?

The Mustang 1000M has a track width of 485 mm.

What are the dredging depth and maximum horizontal reach of the Mustang 1000M crawler excavator?

The Mustang 1000M crawler excavator has a dredging depth of 4.53 meters and a maximum horizontal reach of 7.4 meters.
