M515 Menzi excavator specs & Dimensions (2014 - 2026)

Menzi M515 is a crawler excavator manufactured since 2014. It has a weight of 14.5 tons, a transport length of 7.177 meters, a tra…

Menzi M515 is a crawler excavator manufactured since 2014. It has a weight of 14.5 tons, a transport length of 7.177 meters, a transport width of 2.95 meters, and a transport height of 2.947 meters. The machine features a tear-out force of 102 kN, a dredging depth of 4.324 meters, and a maximum horizontal reach of 8.211 meters. The bucket width is 0.6 meters, and it is equipped with an overload alert system.

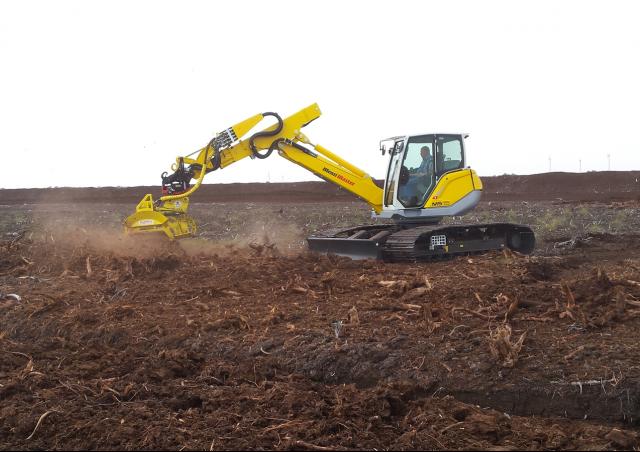

Crawler Excavators Menzi M515

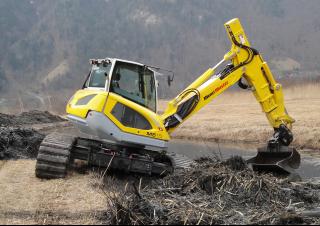

Crawler Excavators Menzi M515

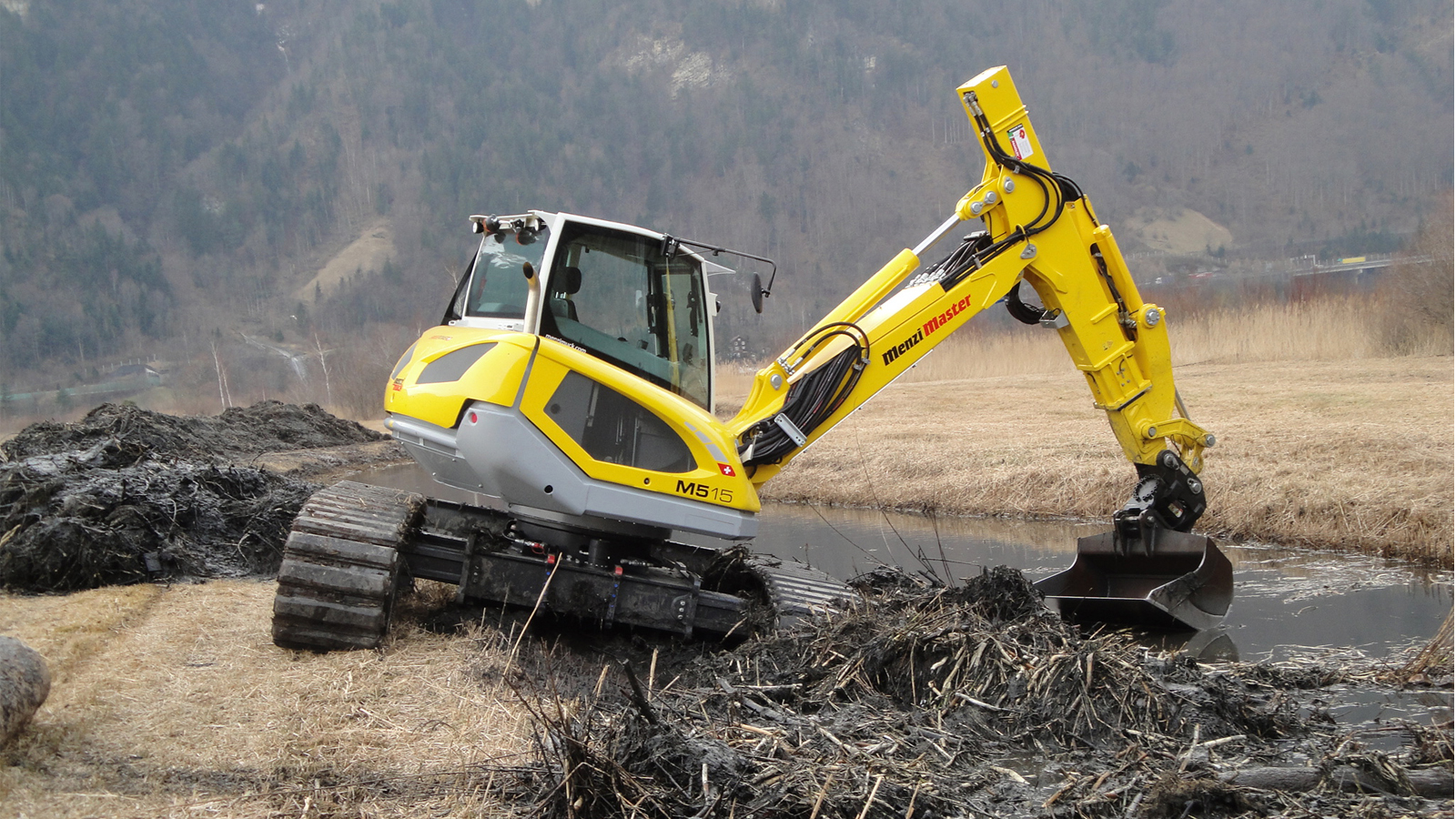

Crawler Excavators Menzi M515

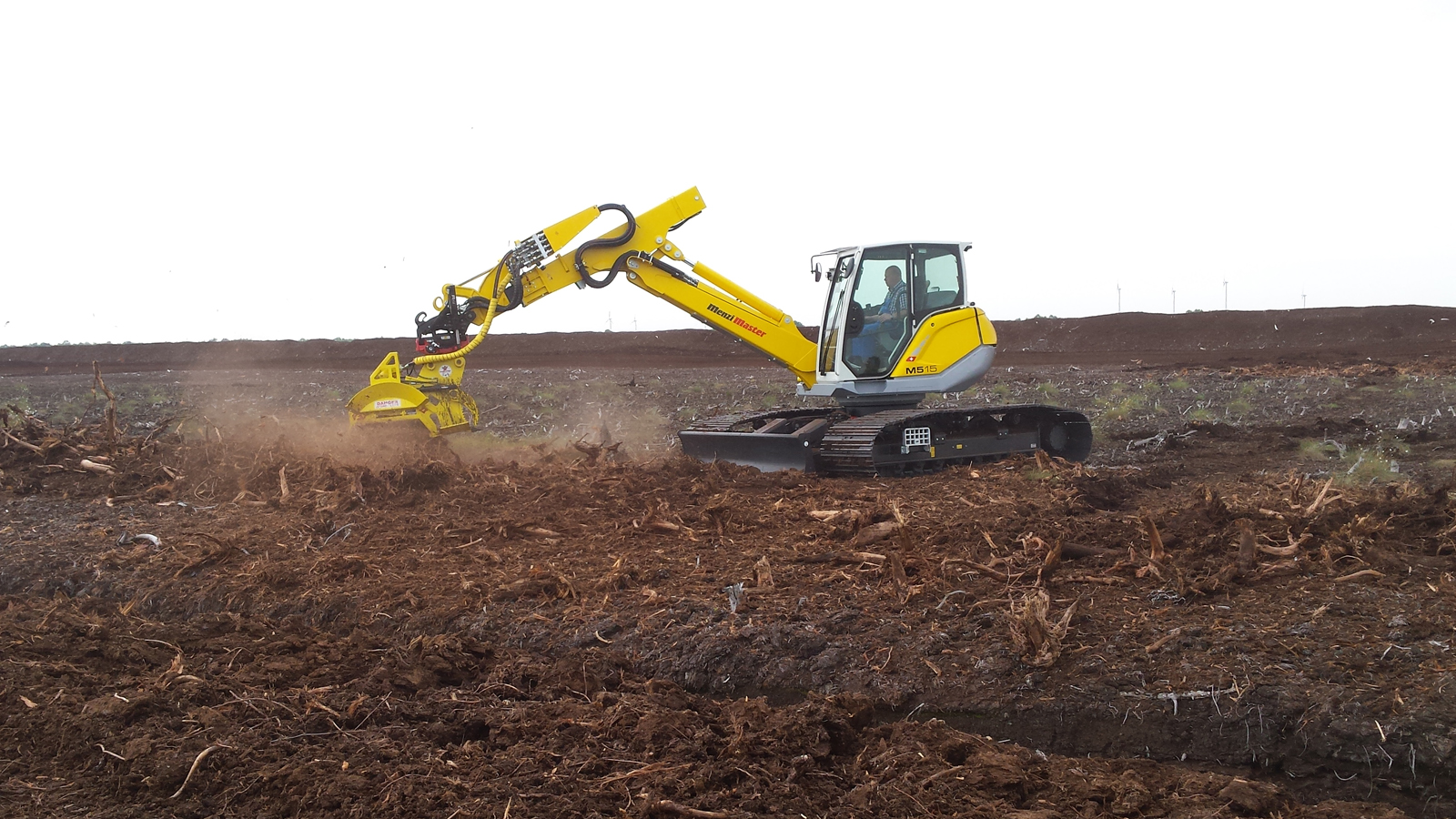

Crawler Excavators Menzi M515

Technical specs - M515 Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Transport length
7.177 m
Transport width
2.95 m
Transport height
2.947 m
Max. Reach horizontal
8.211 m
Dredging depth
4.324 m
Tear-out force
102 kN
Bucket width
0.6 m
Model series
M
Engine manuf.
Deutz
Engine type
TCD4.1 L4
Engine power
115 kW
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, boom, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Menzi M515 FAQ

When was the Menzi M515 manufactured?

The Menzi M515 was first produced in 2014.

How much does the Menzi M515 crawler excavator weigh?

The Menzi M515 crawler excavator weighs 14.5 tons.

What are the transport dimensions of the Menzi M515 crawler excavator?

The Menzi M515 crawler excavator has a transport length of 7.18 meters, a transport width of 2.95 meters, and a transport height of 2.95 meters.

What are the excavation performance specifications of the Menzi M515?

The Menzi M515 has a dredging depth of 4.324 meters and a maximum horizontal reach of 8.211 meters.

What is the tear-out force of the Menzi M515?

The Menzi M515 has a tear-out force of 102 kN.

What is the bucket width of the Menzi M515 crawler excavator?

The Menzi M515 crawler excavator has a bucket width of 0.6 meters.

How much is a Menzi M515 Crawler excavator (2014u20132025) worth?

The residual value of the Menzi M515 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
