65va Menzi excavator specs & Dimensions (2022 - 2026)

Menzi 65va is a Crawler Excavator manufactured since 2022, with a weight of 6.2 t. It features a track width of 400 mm, a transpor…

Menzi 65va is a Crawler Excavator manufactured since 2022, with a weight of 6.2 t. It features a track width of 400 mm, a transport length of 5.89 m, a transport width of 1.98 m, and a transport height of 2.55 m. The machine has a tear-out force of 50 kN, a dredging depth of 3.95 m, and a maximum horizontal reach of 6.75 m. It is equipped with a blade as special equipment.

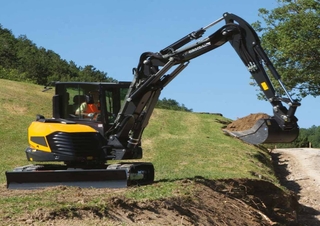

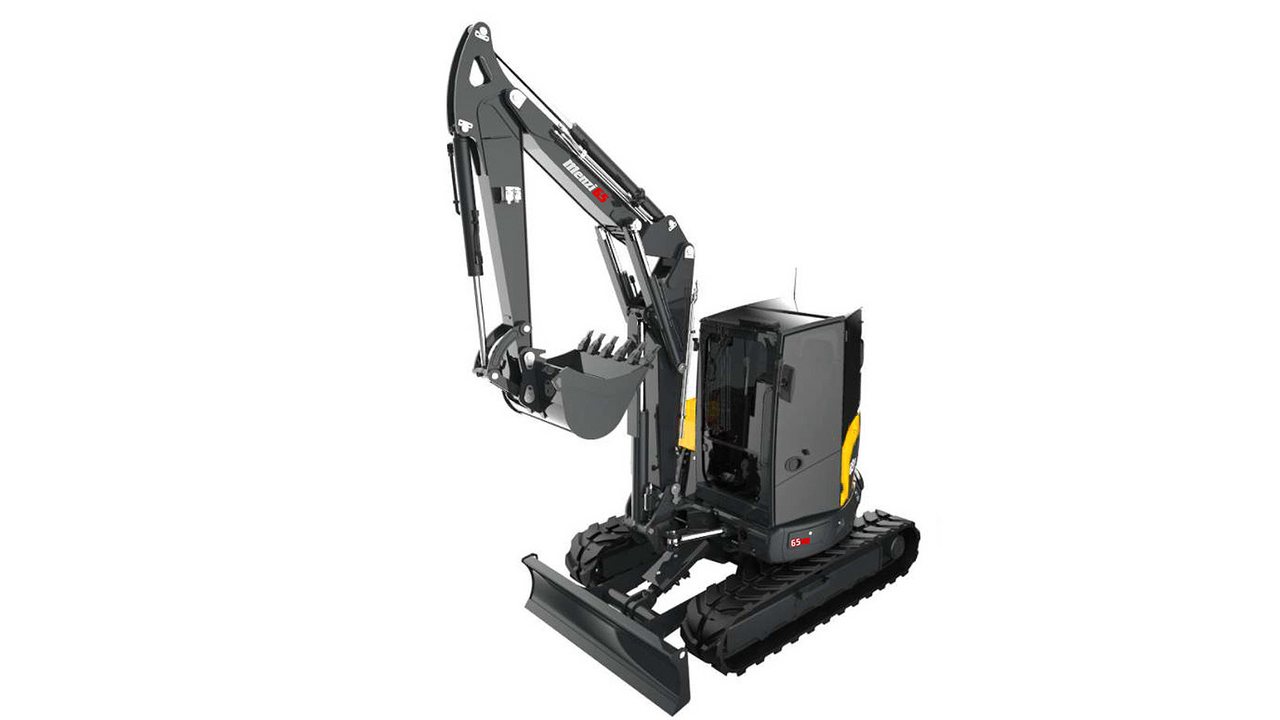

Crawler Excavators Menzi 65va
Crawler Excavators Menzi 65va
Crawler Excavators Menzi 65va
Crawler Excavators Menzi 65va

Technical specs - 65va Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.2 t
Transport length
5.89 m
Transport width
1.98 m
Transport height
2.55 m
Track width
400 mm
Boom
VA
Max. Reach horizontal
6.75 m
Dredging depth
3.95 m
Tear-out force
50 kN
Engine manuf.
Kubota
Engine type
V2607-CR-T
Engine power
44.3 kW
Displacement
2.615 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
Stage V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Menzi 65va FAQ

When was the Menzi 65va manufactured?

The Menzi 65va was first produced in 2022.

How much does the Menzi 65va weigh?

The Menzi 65va weighs 6.2 tons.

What are the transport dimensions of the Menzi 65va crawler excavator?

The Menzi 65va crawler excavator has a transport length of 5.89 meters, a transport width of 1.98 meters, and a transport height of 2.55 meters.

What is the track width of the Menzi 65va crawler excavator?

The Menzi 65va crawler excavator has a track width of 400 mm.

What are the excavation performance specifications of the Menzi 65va crawler excavator?

The Menzi 65va crawler excavator has an adjustable boom, a dredging depth of 3.95 meters, and a maximum horizontal reach of 6.75 meters.

What is the tear-out force of the Menzi 65va?

The Menzi 65va has a tear-out force of 50 kN.

How much is a Menzi 65va Crawler excavator (2022u20132025) worth?

The residual value of the Menzi 65va depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
