100va Menzi excavator specs & Dimensions (2022 - 2026)

Menzi 100va is a Crawler Excavator manufactured since 2022. It has a weight of 8.62 tons and a track width of 450 mm. The transpor…

Menzi 100va is a Crawler Excavator manufactured since 2022. It has a weight of 8.62 tons and a track width of 450 mm. The transport dimensions are 7.03 meters in length, 2.32 meters in width, and 2.56 meters in height. The excavator features a tear-out force of 58.5 kN, a dredging depth of 4.57 meters, and a maximum horizontal reach of 7.585 meters. It is equipped with a blade as special equipment.

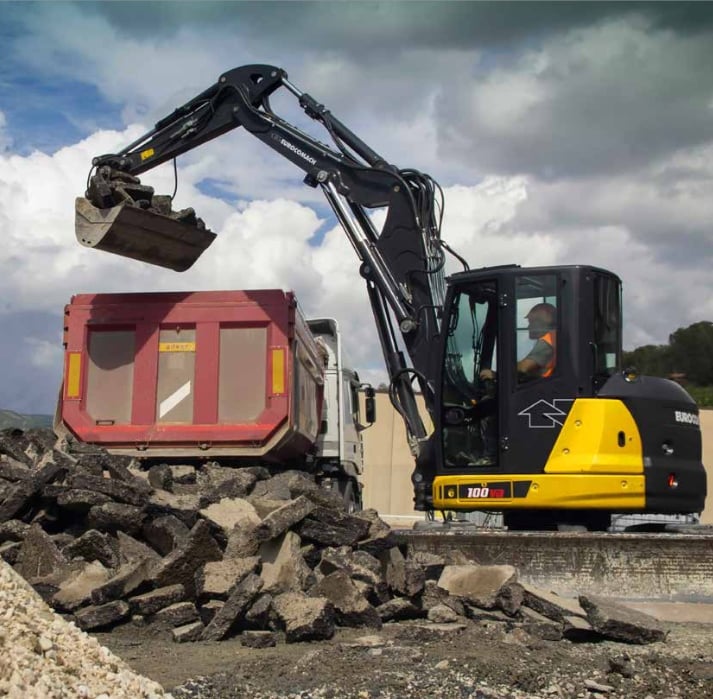

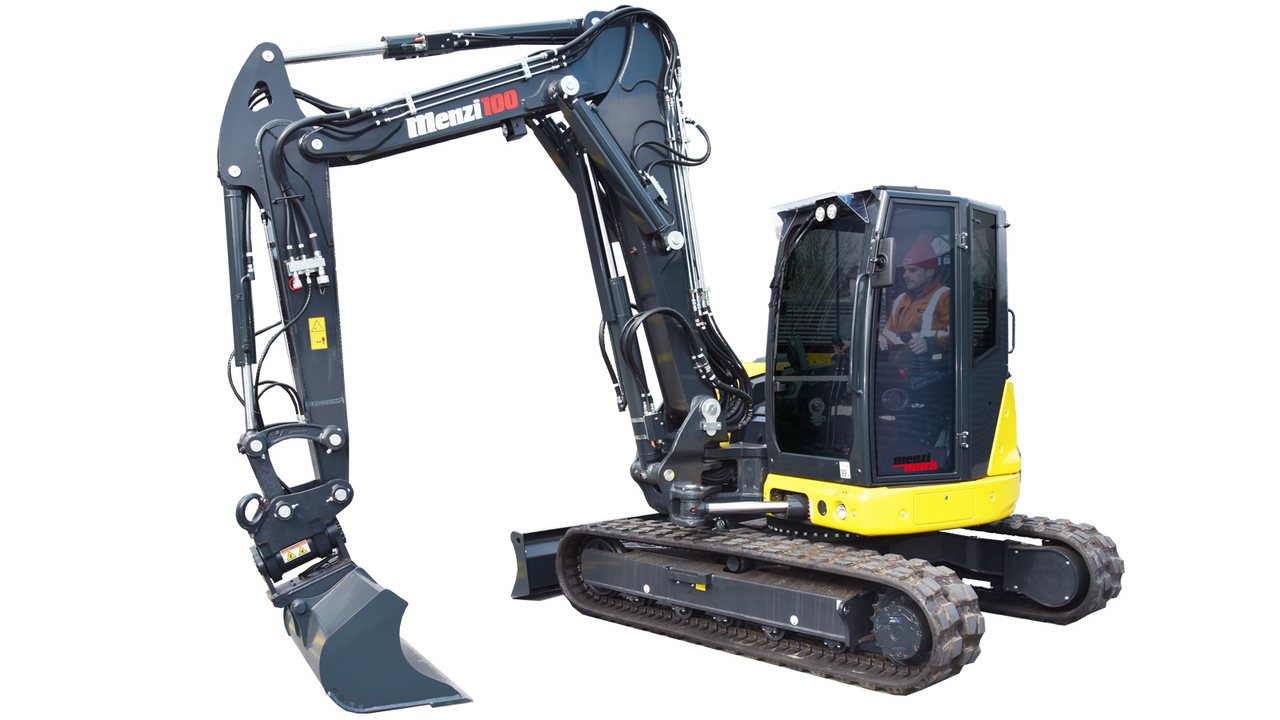

Crawler Excavators Menzi 100va
Crawler Excavators Menzi 100va
Crawler Excavators Menzi 100va
Crawler Excavators Menzi 100va

Technical specs - 100va Menzi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.62 t
Transport length
7.03 m
Transport width
2.32 m
Transport height
2.56 m
Track width
450 mm
Boom
VA
Max. Reach horizontal
7.585 m
Dredging depth
4.57 m
Tear-out force
58.5 kN
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.319 l
Revolutions at max torque
2300 rpm
Max. torque
308/1365 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Menzi 100va FAQ

When was the Menzi 100va manufactured?

The Menzi 100va was first produced in 2022.

How much does the Menzi 100va weigh?

The Menzi 100va weighs 8.62 tons.

What are the transport dimensions of the Menzi 100va crawler excavator?

The Menzi 100va crawler excavator has a transport length of 7.03 meters, a transport width of 2.32 meters, and a transport height of 2.56 meters.

What is the track width of the Menzi 100va's undercarriage?

The Menzi 100va has a track width of 450 mm.

What are the excavation performance specifications of the Menzi 100va crawler excavator?

The Menzi 100va crawler excavator has a dredging depth of 4.57 meters, a maximum horizontal reach of 7.585 meters, and features an adjustable boom.

What are the power ratings of the Menzi 100va crawler excavator?

The source data does not provide power rating information for the Menzi 100va crawler excavator.

How much is a Menzi 100va Crawler excavator (2022u20132025) worth?

The residual value of the Menzi 100va depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
