8MCR Mecalac excavator specs & Dimensions (2021 - 2026)

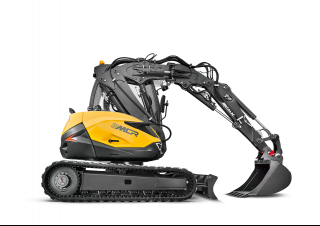

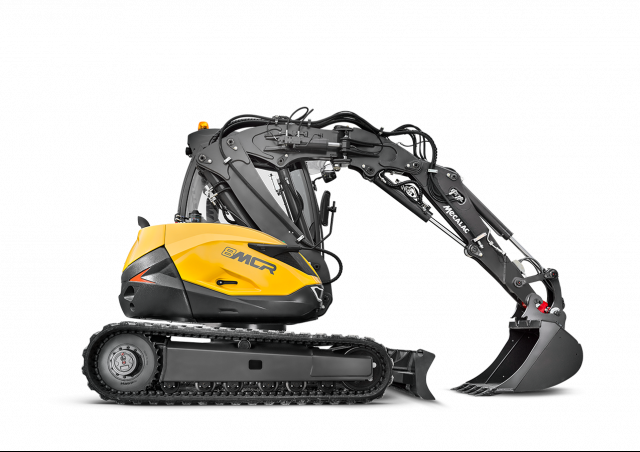

Mecalac 8MCR is a Crawler Excavator manufactured since 2021, with a weight of 7.2 t. It features a track width of 400 mm, a transp…

Mecalac 8MCR is a Crawler Excavator manufactured since 2021, with a weight of 7.2 t. It features a track width of 400 mm, a transport length of 3.129 m, a transport width of 2.1 m, and a transport height of 2.751 m. The machine has a tear-out force of 28 kN, a dredging depth of 3.7 m, and a maximum horizontal reach of 6.75 m. The bucket capacity is 0.22 m³, and it comes equipped with a blade and a hydraulic quick hitch.

Crawler Excavators Mecalac 8MCR

Technical specs - 8MCR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.2 t
Transport length
3.129 m
Transport width
2.1 m
Transport height
2.751 m
Bucket capacity
0.22 m³
Undercarriage
SL
Track width
400 mm
Boom
VA/SKA
Max. Reach horizontal
6.75 m
Dredging depth
3.7 m
Tear-out force
28 kN
Bucket width
0.6 m
Model series
MCR
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Displacement
2.9 l
Revolutions at max torque
2300 rpm
Max. torque
300/1600 Nm
No. of cylinders
4
Cylinder bore x stroke
92x110 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 8MCR FAQ

When was the Mecalac 8MCR manufactured?

The Mecalac 8MCR was first produced in 2021.

How much does the Mecalac 8MCR weigh?

The Mecalac 8MCR weighs 7.2 tons.

What are the transport dimensions of the Mecalac 8MCR crawler excavator?

The Mecalac 8MCR has transport dimensions of 3.13 meters in length, 2.1 meters in width, and 2.75 meters in height.

What are the undercarriage specifications of the Mecalac 8MCR?

The Mecalac 8MCR has a standard undercarriage with a track width of 400 mm.

What are the excavation performance specifications of the Mecalac 8MCR crawler excavator?

The Mecalac 8MCR has a dredging depth of 3.7 meters, a maximum horizontal reach of 6.75 meters, and features a lateral articulated, adjustable boom.

What is the power rating of the Mecalac 8MCR?

The source data does not provide power rating information for the Mecalac 8MCR.

What are the specifications of the primary work tool bucket on the Mecalac 8MCR?

The primary work tool bucket of the Mecalac 8MCR has a capacity of 0.22 cubic meters and a width of 0.6 meters.

How much is a Mecalac 8MCR Crawler excavator (2021u20132025) worth?

The residual value of the Mecalac 8MCR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
