8MCR Mecalac excavator specs & Dimensions (2008 - 2021)

Model rating
7,00 / 10

Mecalac 8MCR is a Crawler Excavator manufactured from 2008 to 2021, with a weight of 8.5 tons. It features a track width of 450 mm…

Mecalac 8MCR is a Crawler Excavator manufactured from 2008 to 2021, with a weight of 8.5 tons. It features a track width of 450 mm, a transport length of 3.08 meters, a transport width of 2.11 meters, and a transport height of 2.77 meters. The excavator has a tear-out force of 28 kN and a bucket capacity of 0.22 cubic meters. It is equipped with special equipment including a blade and a hydraulic quick hitch.

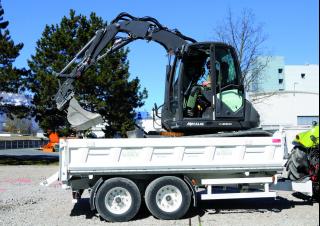

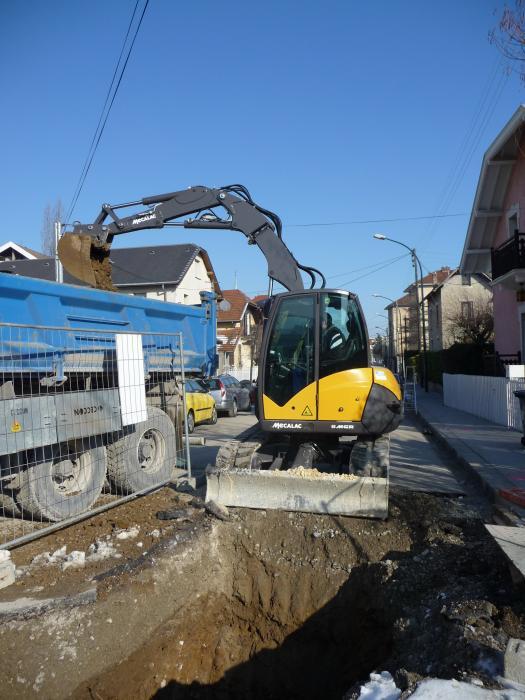

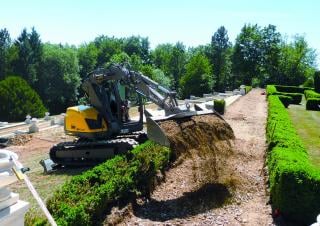

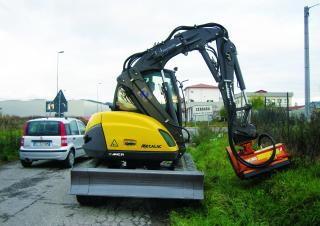

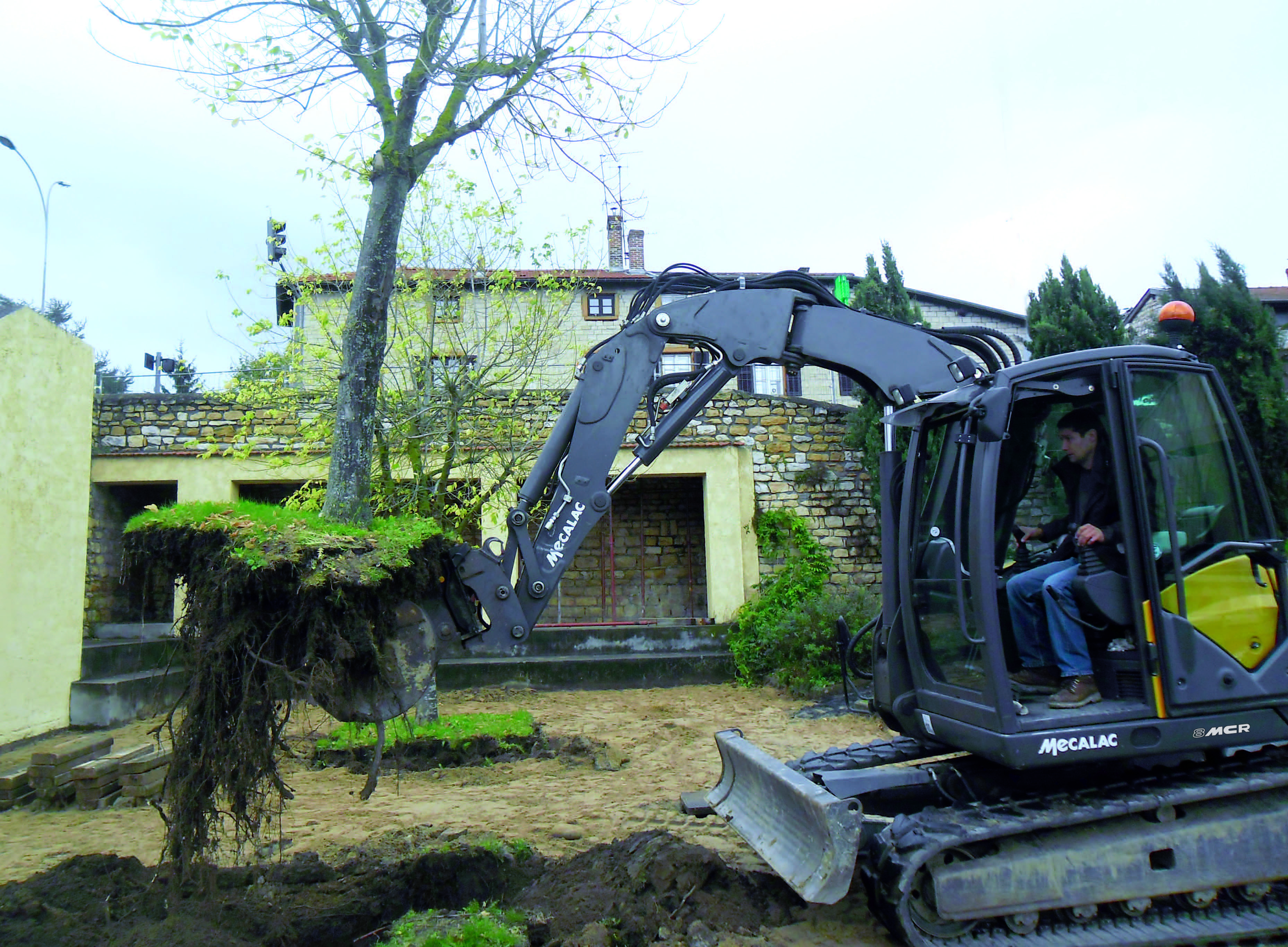

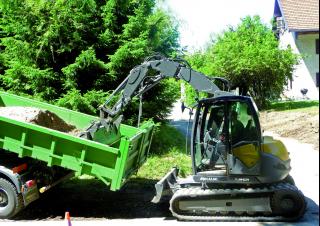

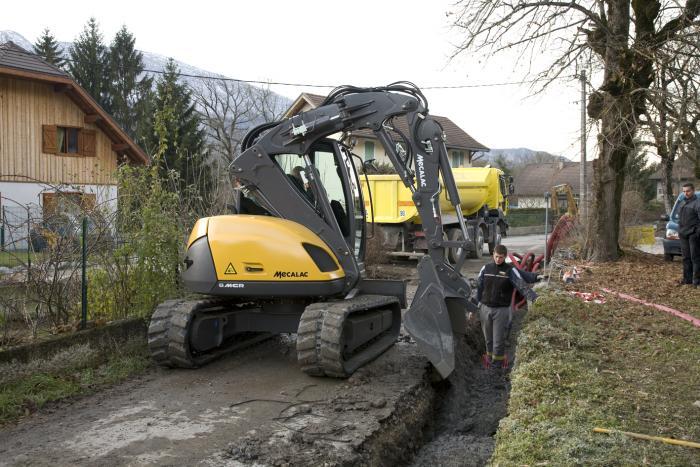

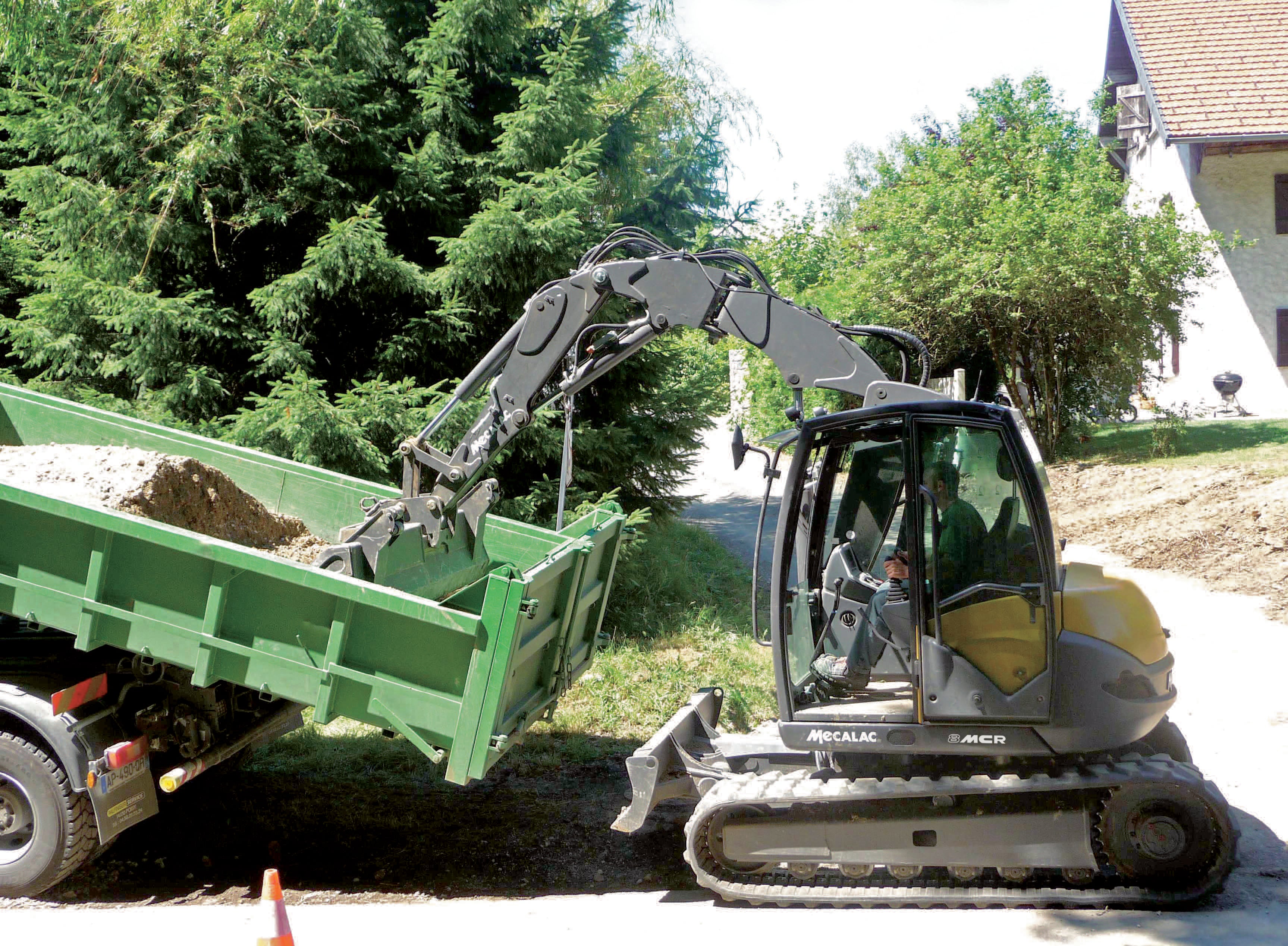

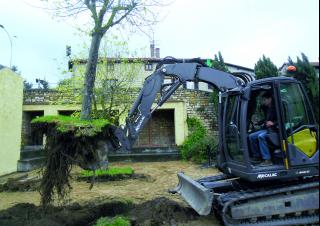

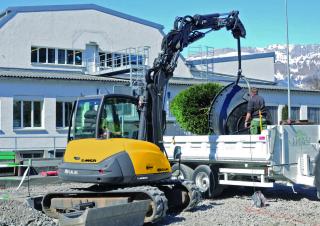

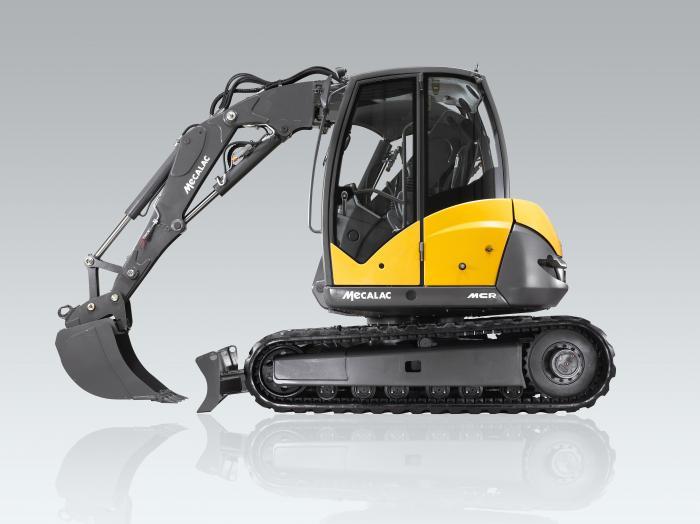

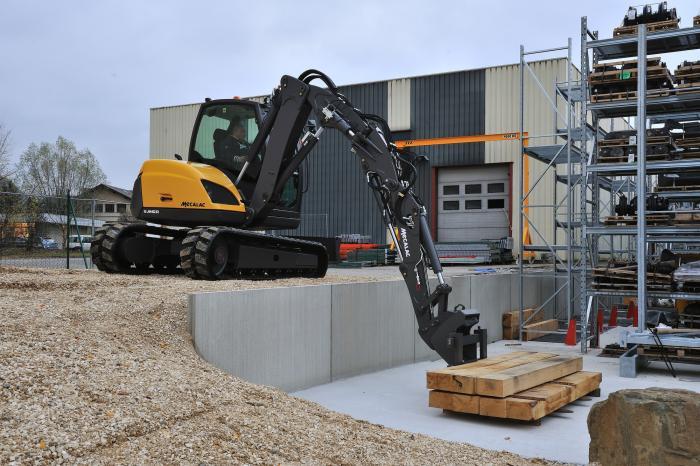

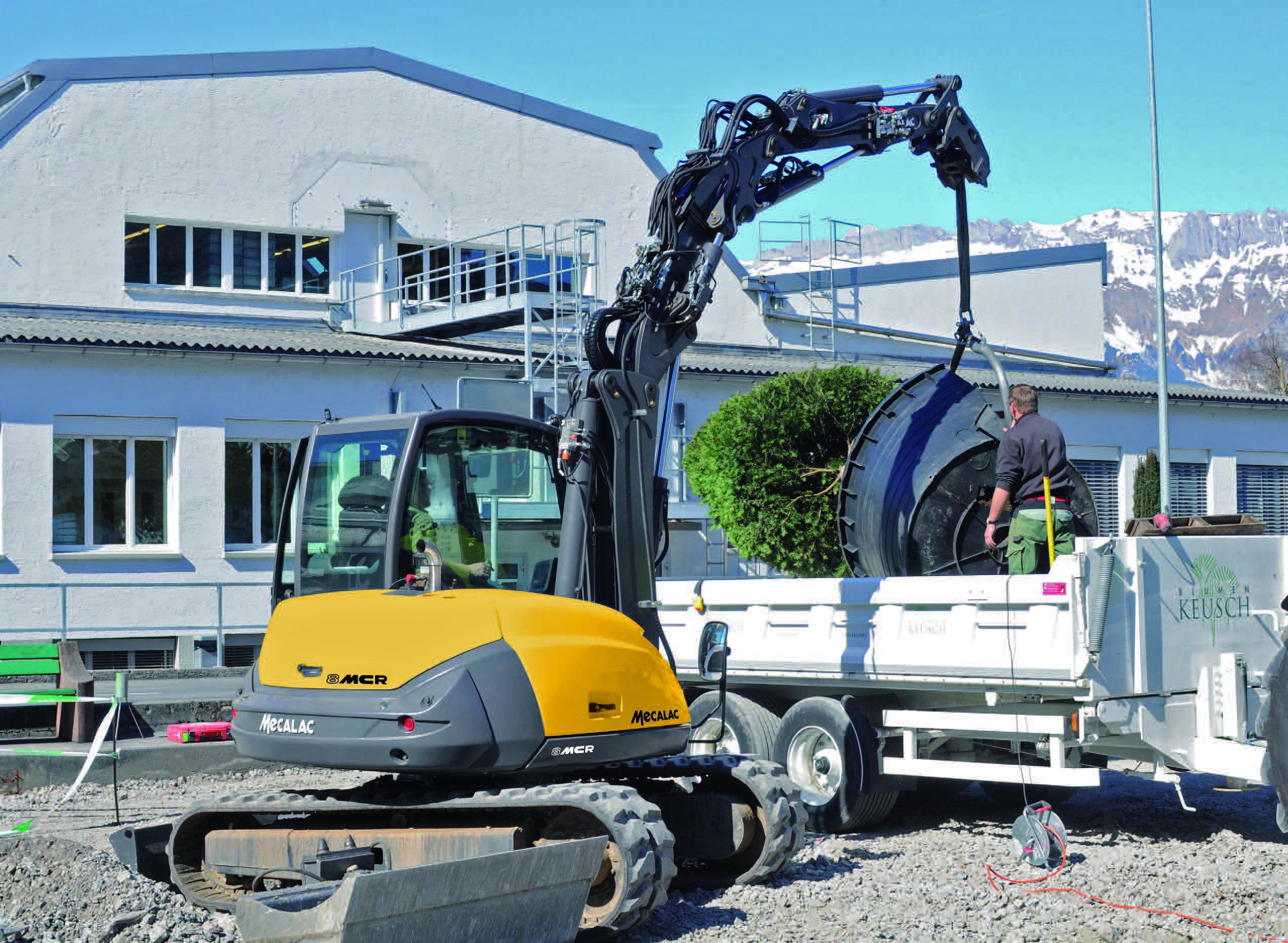

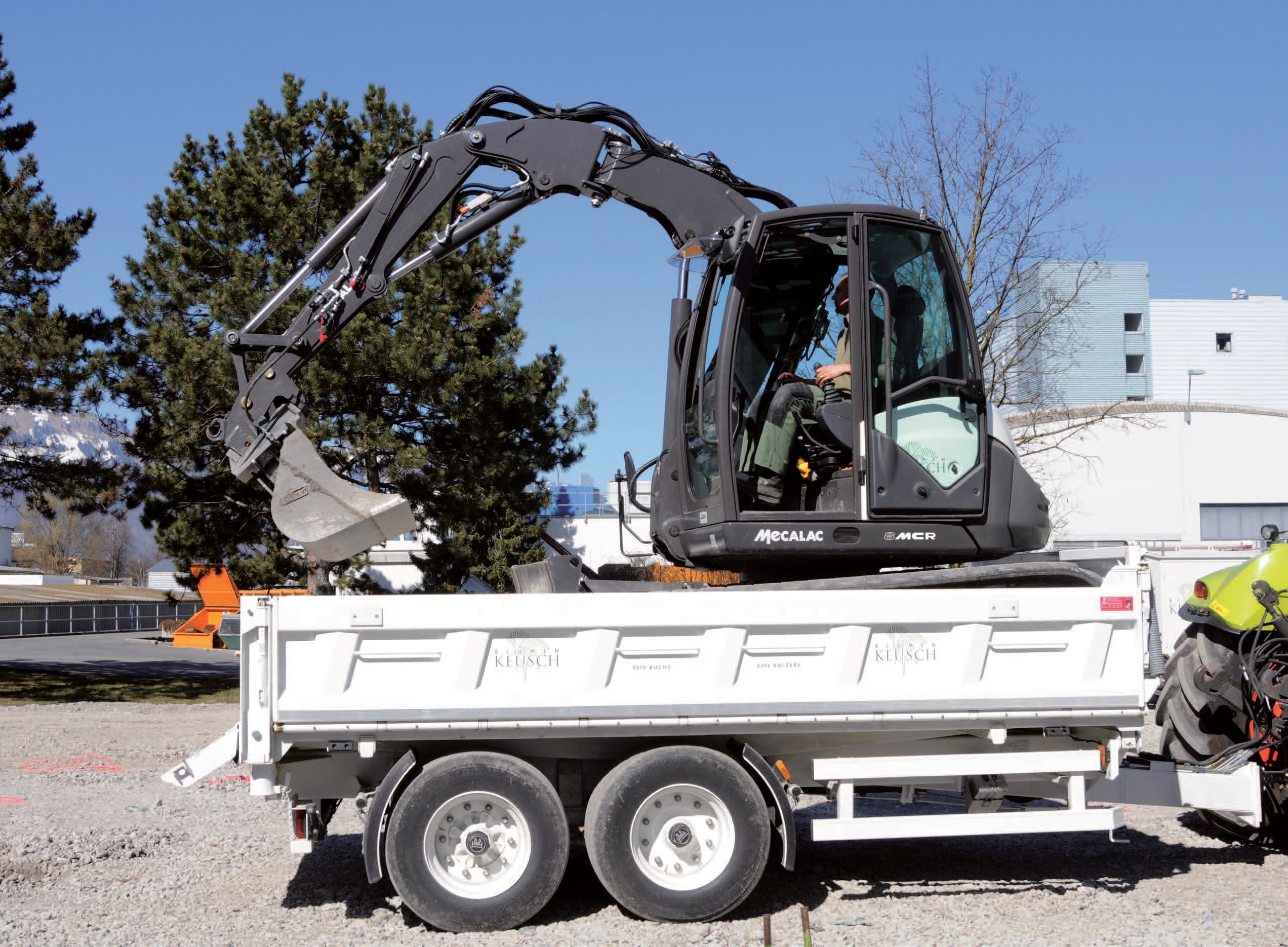

Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR
Crawler Excavators Mecalac 8MCR

Technical specs - 8MCR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.5 t
Transport length
3.08 m
Transport width
2.11 m
Transport height
2.77 m
Bucket capacity
0.22 m³
Undercarriage
SL
Track width
450 mm
Boom
VA/SKA
Max. Reach horizontal
6.7 m
Dredging depth
3.55 m
Tear-out force
28 kN
Bucket width
0.6 m
Model series
MCR
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Revolutions at max torque
2600 rpm
Max. torque
300/1600 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 8MCR FAQ

When was the Mecalac 8MCR manufactured?

The Mecalac 8MCR was manufactured from 2008 to 2021.

How much does the Mecalac 8MCR weigh?

The Mecalac 8MCR weighs 8.5 tons.

What are the transport dimensions of the Mecalac 8MCR crawler excavator?

The Mecalac 8MCR has a transport length of 3.08 meters, a transport width of 2.11 meters, and a transport height of 2.77 meters.

What are the undercarriage specifications of the Mecalac 8MCR?

The Mecalac 8MCR has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Mecalac 8MCR crawler excavator?

The Mecalac 8MCR crawler excavator has a dredging depth of 3.55 meters, a maximum horizontal reach of 6.7 meters, and features a lateral articulated and adjustable boom.

What is the power rating of the Mecalac 8MCR?

There is no power rating data available for the Mecalac 8MCR in the provided information.

What are the bucket specifications of the Mecalac 8MCR crawler excavator?

The Mecalac 8MCR has a bucket capacity of 0.22 cubic meters and a bucket width of 0.6 meters.
