714 MC e Mecalac excavator specs & Dimensions (2016 - 2019)

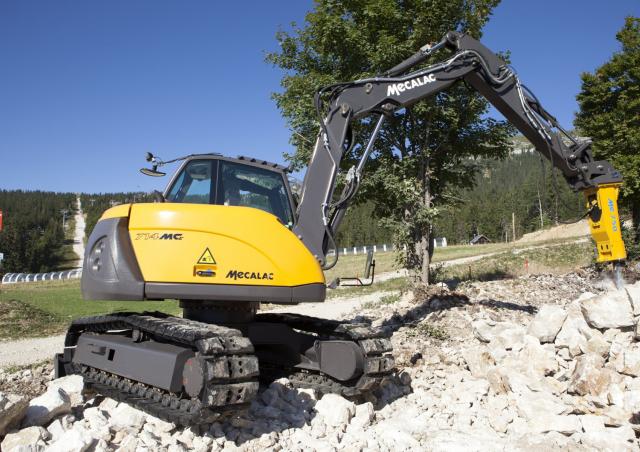

Mecalac 714 MC e is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 13 tons and a track width of 500 mm. Th…

Mecalac 714 MC e is a Crawler Excavator manufactured from 2016 to 2019. It has a weight of 13 tons and a track width of 500 mm. The transport dimensions are 4.55 meters in length, 2.45 meters in width, and 3.5 meters in height. The machine features a tear-out force of 55 kN and a dredging depth of 4.55 meters. The bucket width is 1 meter with a capacity of 1 cubic meter. Special equipment includes a blade and a hydraulic quick hitch.

Crawler Excavators Mecalac 714 MC e

Technical specs - 714 MC e Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13 t
Transport length
4.55 m
Transport width
2.45 m
Transport height
3.5 m
Bucket capacity
1 m³
Undercarriage
SL
Track width
500 mm
Boom
VA/SKA
Max. Reach horizontal
8.3 m
Dredging depth
4.55 m
Tear-out force
55 kN
Bucket width
1 m
Model series
MC
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
90 kW
Displacement
4.038 l
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 714 MC e FAQ

When was the Mecalac 714 MC e manufactured?

The Mecalac 714 MC e was manufactured from 2016 to 2019.

How much does the Mecalac 714 MC e weigh?

The Mecalac 714 MC e weighs 13 tons.

What are the transport dimensions of the Mecalac 714 MC e?

The Mecalac 714 MC e has a transport length of 4.55 meters, a transport width of 2.45 meters, and a transport height of 3.5 meters.

What are the undercarriage specifications of the Mecalac 714 MC e?

The Mecalac 714 MC e has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Mecalac 714 MC e crawler excavator?

The Mecalac 714 MC e has a dredging depth of 4.55 meters, a maximum horizontal reach of 8.3 meters, and features a lateral articulated, adjustable boom.

What is the tear-out force of the Mecalac 714 MC e?

The Mecalac 714 MC e has a tear-out force of 55 kN.

What are the specifications of the primary work tool bucket on the Mecalac 714 MC e?

The primary work tool bucket of the Mecalac 714 MC e has a capacity of 1 cubic meter and a width of 1 meter.

How much is a Mecalac 714 MC e Crawler excavator (2016u20132019) worth?

The residual value of the Mecalac 714 MC e depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
