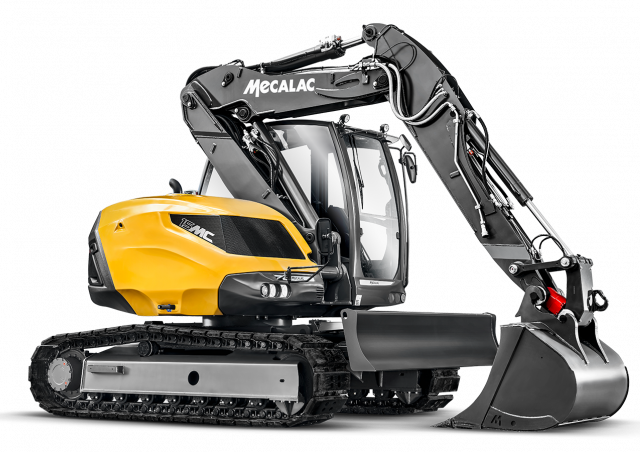

15MC Mecalac excavator specs & Dimensions (2018 - 2026)

Mecalac 15MC is a Crawler Excavator manufactured since 2018. It has a weight of 14.78 tons and a track width of 500 mm. The transp…

Mecalac 15MC is a Crawler Excavator manufactured since 2018. It has a weight of 14.78 tons and a track width of 500 mm. The transport dimensions are 4.64 meters in length, 2.5 meters in width, and 3.48 meters in height. The excavator features a tear-out force of 62 kN, a dredging depth of 4.88 meters, and a maximum horizontal reach of 8.7 meters. The bucket width is 1 meter, with a capacity of 0.77 cubic meters.

Crawler Excavators Mecalac 15MC

Technical specs - 15MC Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.78 t
Transport length
4.64 m
Transport width
2.5 m
Transport height
3.48 m
Bucket capacity
0.77 m³
Undercarriage
SL
Track width
500 mm
Boom
VA/SKA
Max. Reach horizontal
8.7 m
Dredging depth
4.88 m
Tear-out force
62 kN
Bucket width
1 m
Model series
MC
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
100 kW
Displacement
4 l
Revolutions at max torque
2000 rpm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 15MC FAQ

When was the Mecalac 15MC manufactured?

The Mecalac 15MC was first produced in 2018.

How much does the Mecalac 15MC weigh?

The Mecalac 15MC weighs 14.78 tons.

What are the transport dimensions of the Mecalac 15MC crawler excavator?

The Mecalac 15MC has a transport length of 4.64 meters, a transport width of 2.5 meters, and a transport height of 3.48 meters.

What are the undercarriage specifications of the Mecalac 15MC?

The Mecalac 15MC has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Mecalac 15MC crawler excavator?

The Mecalac 15MC crawler excavator has a dredging depth of 4.88 meters, a maximum horizontal reach of 8.7 meters, and features a lateral articulated boom with an adjustable boom.

What is the tear-out force of the Mecalac 15MC?

The Mecalac 15MC has a tear-out force of 62 kN.

What are the bucket specifications of the Mecalac 15MC crawler excavator?

The Mecalac 15MC has a bucket with a capacity of 0.77 cubic meters and a width of 1 meter.

How much is a Mecalac 15MC Crawler excavator (2018u20132025) worth?
