15MC Mecalac excavator specs & Dimensions (2018 - 2026)

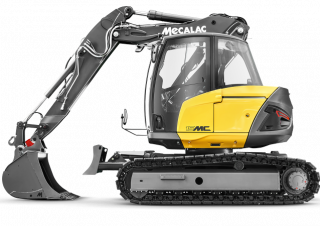

Mecalac 15MC is a Crawler Excavator manufactured since 2018, with a weight of 14.78 t and a track width of 500 mm. Its transport d…

Mecalac 15MC is a Crawler Excavator manufactured since 2018, with a weight of 14.78 t and a track width of 500 mm. Its transport dimensions are 4.64 m in length, 2.5 m in width, and 3.48 m in height. The machine has a tear-out force of 55 kN, a dredging depth of 4.73 m, and a maximum horizontal reach of 8.3 m. It features a bucket width of 1 m and a bucket capacity of 0.77 m³. Special equipment includes a blade and a hydraulic quick hitch.

Crawler Excavators Mecalac 15MC

Technical specs - 15MC Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.78 t
Transport length
4.64 m
Transport width
2.5 m
Transport height
3.48 m
Bucket capacity
0.77 m³
Undercarriage
SL
Track width
500 mm
Boom
VA/SKA
Max. Reach horizontal
8.3 m
Dredging depth
4.73 m
Tear-out force
55 kN
Bucket width
1 m
Model series
MC
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
100 kW
Displacement
4 l
Revolutions at max torque
2000 rpm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 15MC FAQ

When was the Mecalac 15MC manufactured?

The Mecalac 15MC was first produced in 2018.

How much does the Mecalac 15MC weigh?

The Mecalac 15MC weighs 14.78 tons.

What are the transport dimensions of the Mecalac 15MC crawler excavator?

The Mecalac 15MC has a transport length of 4.64 meters, a transport width of 2.5 meters, and a transport height of 3.48 meters.

What are the undercarriage specifications of the Mecalac 15MC crawler excavator?

The Mecalac 15MC crawler excavator has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Mecalac 15MC crawler excavator?

The Mecalac 15MC crawler excavator has a dredging depth of 4.73 meters, a maximum horizontal reach of 8.3 meters, and features a lateral articulated, adjustable boom.

What is the tear-out force of the Mecalac 15MC?

The Mecalac 15MC has a tear-out force of 55 kN.

What are the specifications of the primary work tool bucket on the Mecalac 15MC?

The primary work tool bucket of the Mecalac 15MC has a capacity of 0.77 cubic meters and a width of 1 meter.

How much is a Mecalac 15MC Crawler excavator (2018u20132025) worth?
