CLG220LC Liugong excavator specs & Dimensions (2007 - 2025)

Liugong CLG220LC is a crawler excavator manufactured since 2007. It has a weight of 20 tons and a track width of 600 mm. The trans…

Liugong CLG220LC is a crawler excavator manufactured since 2007. It has a weight of 20 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 2 meters in height. The excavator features a tear-out force of 120 kN, a dredging depth of 6 meters, and a maximum horizontal reach of 9 meters. The maximum bucket capacity is 1 cubic meter.

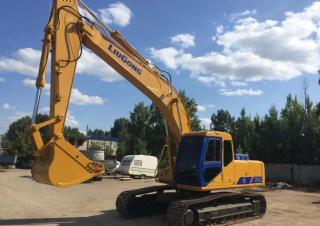

Crawler Excavators Liugong CLG220LC

Visit Liugong live at

Technical specs - CLG220LC Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.7 t
Transport length
9.52 m
Transport width
2.99 m
Transport height
2.89 m
Bucket capacity min.
0.73 m³
Bucket capacity max.
1 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.82 m
Dredging depth
6.35 m
Tear-out force
120 kN
Engine manuf.
Cummins
Engine type
85.9-C
Engine power
108 kW
Displacement
5.9 l
Revolutions at max torque
1600 rpm
Max. torque
597 Nm
No. of cylinders
6
Cylinder bore x stroke
102 x 120 mm

More technical details, like: bucket capacity, bucket width, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong CLG220LC FAQ

When was the Liugong CLG220LC manufactured?

The Liugong CLG220LC was first produced in 2007.

How much does the Liugong CLG220LC weigh?

The Liugong CLG220LC weighs 20.7 tons.

What are the transport dimensions of the Liugong CLG220LC crawler excavator?

The Liugong CLG220LC has a transport length of 9.52 meters, a transport width of 2.99 meters, and a transport height of 2.89 meters.

What are the undercarriage specifications of the Liugong CLG220LC?

The Liugong CLG220LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liugong CLG220LC crawler excavator?

The Liugong CLG220LC crawler excavator has a dredging depth of 6.35 meters, a maximum horizontal reach of 9.82 meters, and features a monobloc boom.

What is the tear-out force of the Liugong CLG220LC?

The Liugong CLG220LC has a tear-out force of 120 kN.

What is the maximum bucket capacity of the Liugong CLG220LC?

The Liugong CLG220LC has a maximum bucket capacity of 1 cubic meter.

How much is a Liugong CLG220LC Crawler excavator (2007u20132025) worth?

The residual value of the Liugong CLG220LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
