942EHD Liugong excavator specs & Dimensions (2025 - 2026)

Weight: 42t – Transport length: 11.597m – Transport width: 3.34m – Transport height: 3.506m – Bucket capacity: 2.1m³ – Track width…

Weight: 42t – Transport length: 11.597m – Transport width: 3.34m – Transport height: 3.506m – Bucket capacity: 2.1m³ – Track width: 600mm

Check out detailed specifications, information and technical data for Liugong 942EHD excavator manufactured between 2025 - 2026. Get more in-depth insight with Liugong 942EHD digger specifications. See information, like: Weight: 42t – Transport length: 11.597m – Transport width: 3.34m – Transport height: 3.506m – Bucket capacity: 2.1m³ – Track width: 600mm and more.

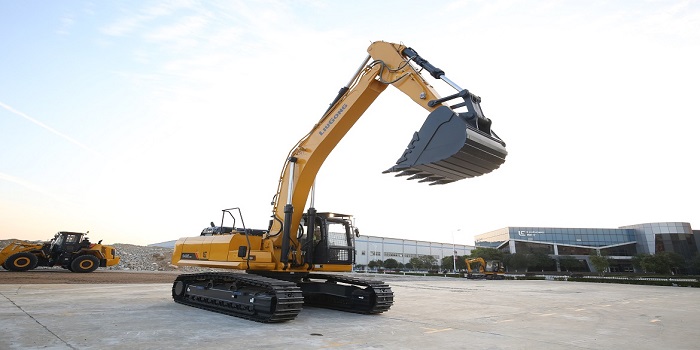

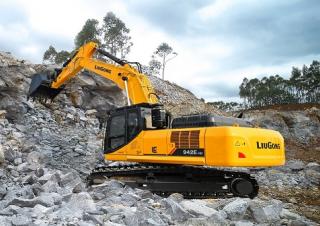

Crawler Excavators Liugong 942EHD
Crawler Excavators Liugong 942EHD
Crawler Excavators Liugong 942EHD
Crawler Excavators Liugong 942EHD

Visit Liugong live at

Technical specs - 942EHD Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
42 t
Transport length
11.597 m
Transport width
3.34 m
Transport height
3.506 m
Bucket capacity
2.1 m³
Track width
600 mm
Max. Reach horizontal
10.728 m
Dredging depth
6.89 m
Model series
E
Engine manuf.
Cummins
Engine type
L9PLUST3
Engine power
214 kW
Displacement
8.9 l
Revolutions at max torque
1600 rpm
Max. torque
1343 Nm
No. of cylinders
6
Cylinder bore x stroke
114x145 mm
Emission level
Stage IIIA/Tier 3

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
