920D Liugong excavator specs & Dimensions (2010 - 2017)

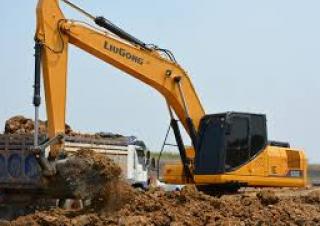

Liugong 920D is a crawler excavator manufactured from 2010 to 2017. It has a weight of 20 tons and a track width of 600 mm. The tr…

Liugong 920D is a crawler excavator manufactured from 2010 to 2017. It has a weight of 20 tons and a track width of 600 mm. The transport dimensions are 9 meters in length, 2 meters in width, and 3 meters in height. The machine features a tear-out force of 103 kN, a dredging depth of 6.615 meters, and a maximum horizontal reach of 9.705 meters. The bucket capacity is up to 1 cubic meter.

Crawler Excavators Liugong 920D

Visit Liugong live at

Technical specs - 920D Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.5 t
Transport length
9.69 m
Transport width
2.8 m
Transport height
3.1 m
Bucket capacity min.
0.73 m³
Bucket capacity max.
1 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.705 m
Dredging depth
6.615 m
Tear-out force
103 kN
Engine manuf.
Cummins
Engine type
N/A
Engine power
112 kW
Displacement
5.9 l
Revolutions at max torque
1500 rpm
Max. torque
614 Nm
No. of cylinders
6
Emission level
Tier 2/Stage II

More technical details, like: bucket capacity, bucket width, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liugong 920D FAQ

When was the Liugong 920D manufactured?

The Liugong 920D was manufactured from 2010 to 2017.

How much does the Liugong 920D weigh?

The Liugong 920D weighs 20.5 tons.

What are the transport dimensions of the Liugong 920D crawler excavator?

The Liugong 920D has a transport length of 9.69 meters, a transport width of 2.8 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the Liugong 920D?

The Liugong 920D has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Liugong 920D crawler excavator?

The Liugong 920D crawler excavator has a dredging depth of 6.615 meters, a maximum horizontal reach of 9.705 meters, and features a monobloc boom.

What is the tear-out force of the Liugong 920D?

The Liugong 920D has a tear-out force of 103 kN.

What is the maximum bucket capacity of the Liugong 920D crawler excavator?

The Liugong 920D crawler excavator has a maximum bucket capacity of 1 cubic meter.

How much is a Liugong 920D Crawler excavator (2010u20132017) worth?

The residual value of the Liugong 920D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
