SC130.8 Lishide excavator specs & Dimensions (2017 - 2023)

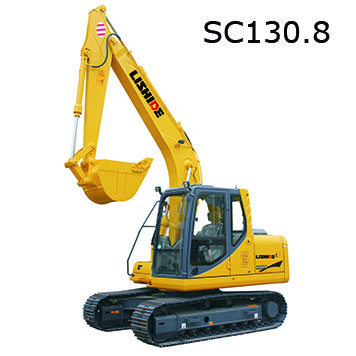

Lishide SC130.8 is a Crawler Excavator manufactured since 2017. It has a weight of 13.18 tons and a track width of 600 mm. The tra…

Lishide SC130.8 is a Crawler Excavator manufactured since 2017. It has a weight of 13.18 tons and a track width of 600 mm. The transport dimensions are 7.68 meters in length, 2.56 meters in width, and 2.81 meters in height. The excavator features a tear-out force of 80 kN, a dredging depth of 5.5 meters, and a maximum horizontal reach of 8.3 meters. The bucket capacity is 0.53 cubic meters. Special equipment includes air conditioning and cabin adjustment.

Crawler Excavators Lishide SC130.8
Crawler Excavators Lishide SC130.8
Crawler Excavators Lishide SC130.8
Crawler Excavators Lishide SC130.8

Technical specs - SC130.8 Lishide

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.18 t
Transport length
7.68 m
Transport width
2.56 m
Transport height
2.81 m
Bucket capacity
0.53 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.3 m
Dredging depth
5.5 m
Tear-out force
80 kN
Model series
Middle
Engine manuf.
Cummins
Engine type
B3.9-C
Engine power
86 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Lishide SC130.8 FAQ

When was the Lishide SC130.8 manufactured?

The Lishide SC130.8 was manufactured from 2017 to 2023.

How much does the Lishide SC130.8 weigh?

The Lishide SC130.8 weighs 13.18 tons.

What are the transport dimensions of the Lishide SC130.8 crawler excavator?

The Lishide SC130.8 has a transport length of 7.68 meters, a transport width of 2.56 meters, and a transport height of 2.81 meters.

What is the track width of the Lishide SC130.8's undercarriage?

The Lishide SC130.8 has a track width of 600 mm.

What are the excavation performance specifications of the Lishide SC130.8?

The Lishide SC130.8 has a dredging depth of 5.5 meters, a maximum horizontal reach of 8.3 meters, and features a monobloc boom.

What power ratings are available for the Lishide SC130.8?

There are no power ratings provided for the Lishide SC130.8 in the available data.

What is the bucket capacity of the Lishide SC130.8 excavator?

The bucket capacity of the Lishide SC130.8 is 0.53 cubic meters.

How much is a Lishide SC130.8 Crawler excavator (2017u20132023) worth?

The residual value of the Lishide SC130.8 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
