800 LX Link-Belt excavator specs & Dimensions (2002 - 2023)

Link-Belt 800 LX is a crawler excavator manufactured since 2002. It has a weight of 79 tons and a track width of 750 mm. The trans…

Link-Belt 800 LX is a crawler excavator manufactured since 2002. It has a weight of 79 tons and a track width of 750 mm. The transport dimensions are 14 meters in length, 3 meters in width, and 6 meters in height. The bucket width is 2.134 meters, with a bucket capacity ranging from 1 cubic meter to 4 cubic meters. Special equipment includes air conditioning, a blade, cabin adjustment, a diesel particulate filter, and track adjustment.

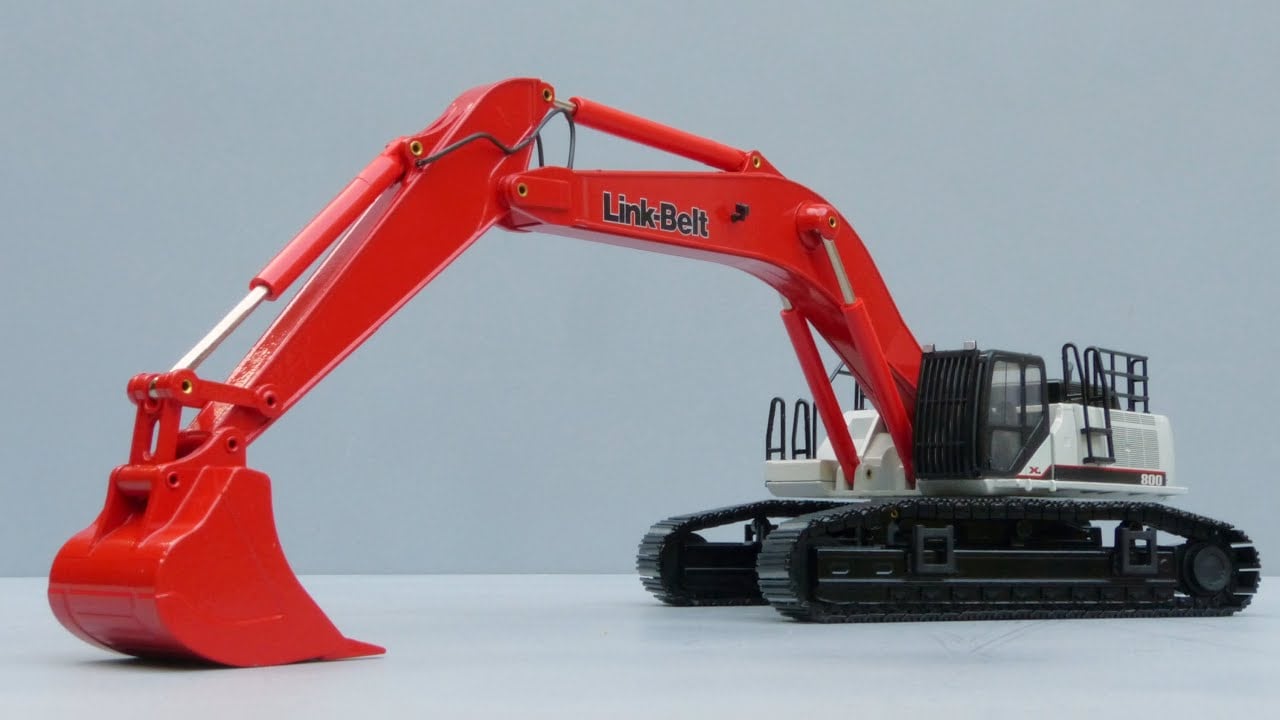

Crawler Excavators Link-Belt 800 LX

Technical specs - 800 LX Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
79 t
Transport length
14 m
Transport width
3 m
Transport height
6 m
Bucket capacity min.
1 m³
Bucket capacity max.
4 m³
Undercarriage
LC
Track width
750 mm
Boom
MB
Max. Reach horizontal
16.1 m
Dredging depth
10.66 m
Tear-out force
470.03 kN
Bucket width
2.134 m
Engine manuf.
Isuzu
Engine type
BB-6WG1XQB
Engine power
331 kW
Displacement
15.682 l
Revolutions at max torque
1500 rpm
Max. torque
1912 Nm
No. of cylinders
6
Cylinder bore x stroke
147 x 154 mm
Emission level
Tier 2

More technical details, like: bucket capacity, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 800 LX FAQ

When was the Link-Belt 800 LX manufactured?

The Link-Belt 800 LX was manufactured from 2002 to 2023.

How much does the Link-Belt 800 LX weigh?

The Link-Belt 800 LX weighs 79 tons.

What are the transport dimensions of the Link-Belt 800 LX?

The Link-Belt 800 LX has a transport length of 14 meters, a transport width of 3 meters, and a transport height of 6 meters.

What are the undercarriage specifications of the Link-Belt 800 LX?

The Link-Belt 800 LX has a long undercarriage and a track width of 750 mm.

What are the excavation performance specifications of the Link-Belt 800 LX?

The Link-Belt 800 LX has a dredging depth of 10.66 meters, a maximum horizontal reach of 16.1 meters, and features a monobloc boom.

What is the tear-out force of the Link-Belt 800 LX?

The Link-Belt 800 LX has a tear-out force of 470.03 kN.

What are the bucket specifications of the Link-Belt 800 LX crawler excavator?

The Link-Belt 800 LX crawler excavator has a bucket width of 2.134 meters, with a bucket capacity ranging from 1 to 4 cubic meters.

How much is a Link-Belt 800 LX Crawler excavator (2002u20132023) worth?

The residual value of the Link-Belt 800 LX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
