750 X4 Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 750 X4 is a Crawler Excavator manufactured since 2019, with a weight of 71.8 tons. It features a track width of 900 mm, …

Link-Belt 750 X4 is a Crawler Excavator manufactured since 2019, with a weight of 71.8 tons. It features a track width of 900 mm, a transport length of 13.37 meters, a transport width of 4.25 meters, and a transport height of 4.32 meters. The excavator has a tear-out force of 306 kN, a dredging depth of 8.4 meters, and a maximum horizontal reach of 14.22 meters. The bucket capacity ranges from a minimum of 1.36 m³ to a maximum of 4.48 m³.

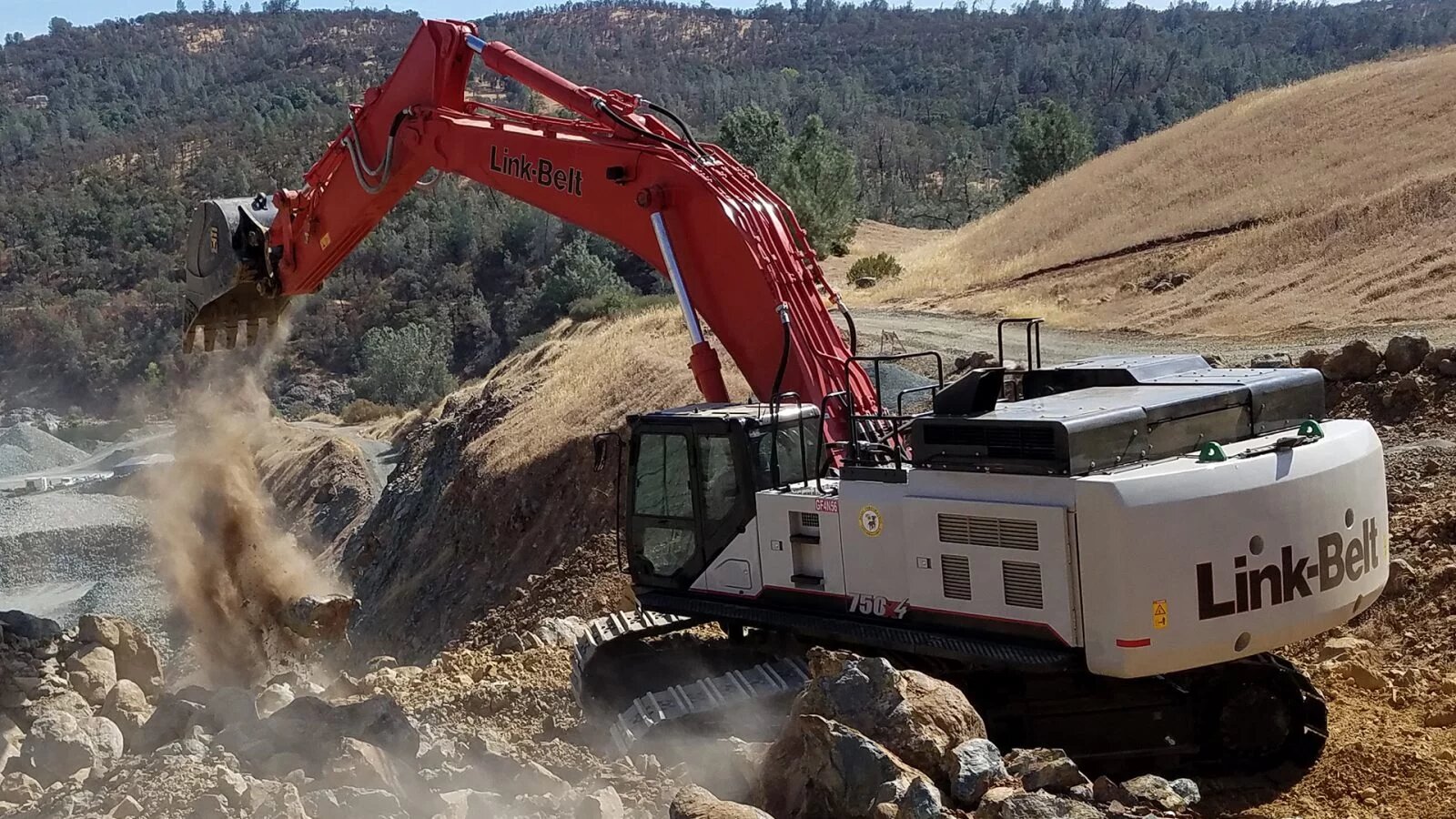

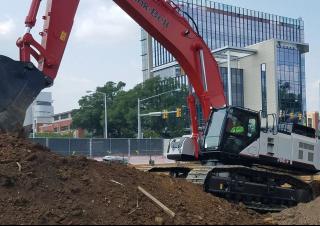

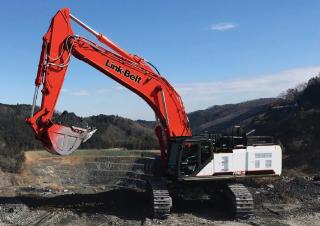

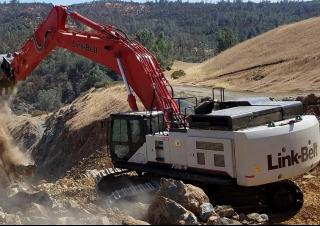

Crawler Excavators Link-Belt 750 X4
Crawler Excavators Link-Belt 750 X4
Crawler Excavators Link-Belt 750 X4
Crawler Excavators Link-Belt 750 X4
Crawler Excavators Link-Belt 750 X4
Crawler Excavators Link-Belt 750 X4

Technical specs - 750 X4 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
71.8 t
Transport length
13.37 m
Transport width
4.25 m
Transport height
4.32 m
Bucket capacity
4.48 m³
Bucket capacity min.
1.36 m³
Bucket capacity max.
4.48 m³
Undercarriage
LC
Track width
900 mm
Boom
MB
Max. Reach horizontal
14.22 m
Dredging depth
8.4 m
Tear-out force
306 kN
Model series
X4
Engine manuf.
Isuzu
Engine type
AQ-6WG1X
Engine power
382 kW
Displacement
15.7 l
Revolutions at max torque
1800 rpm
Max. torque
1450 Nm
No. of cylinders
6
Emission level
Tier 4f

More technical details, like: bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Link-Belt 750 X4 FAQ

When was the Link-Belt 750 X4 manufactured?

The Link-Belt 750 X4 was first produced in 2019.

How much does the Link-Belt 750 X4 weigh?

The Link-Belt 750 X4 weighs 71.8 tons.

What are the transport dimensions of the Link-Belt 750 X4 crawler excavator?

The Link-Belt 750 X4 crawler excavator has a transport length of 13.37 meters, a transport width of 4.25 meters, and a transport height of 4.32 meters.

What are the undercarriage specifications of the Link-Belt 750 X4?

The Link-Belt 750 X4 has a long undercarriage and a track width of 900 mm.

What are the excavation performance specifications of the Link-Belt 750 X4?

The Link-Belt 750 X4 has a dredging depth of 8.4 meters, a maximum horizontal reach of 14.22 meters, and is equipped with a monobloc boom.

What are the power ratings of the Link-Belt 750 X4?

The source data does not provide power rating information for the Link-Belt 750 X4.

What are the bucket capacity specifications of the Link-Belt 750 X4 crawler excavator?

The Link-Belt 750 X4 crawler excavator has a bucket capacity ranging from 1.36 to 4.48 cubic meters, with a standard bucket capacity of 4.48 cubic meters.

How much is a Link-Belt 750 X4 Crawler excavator (2019u20132025) worth?

The residual value of the Link-Belt 750 X4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
