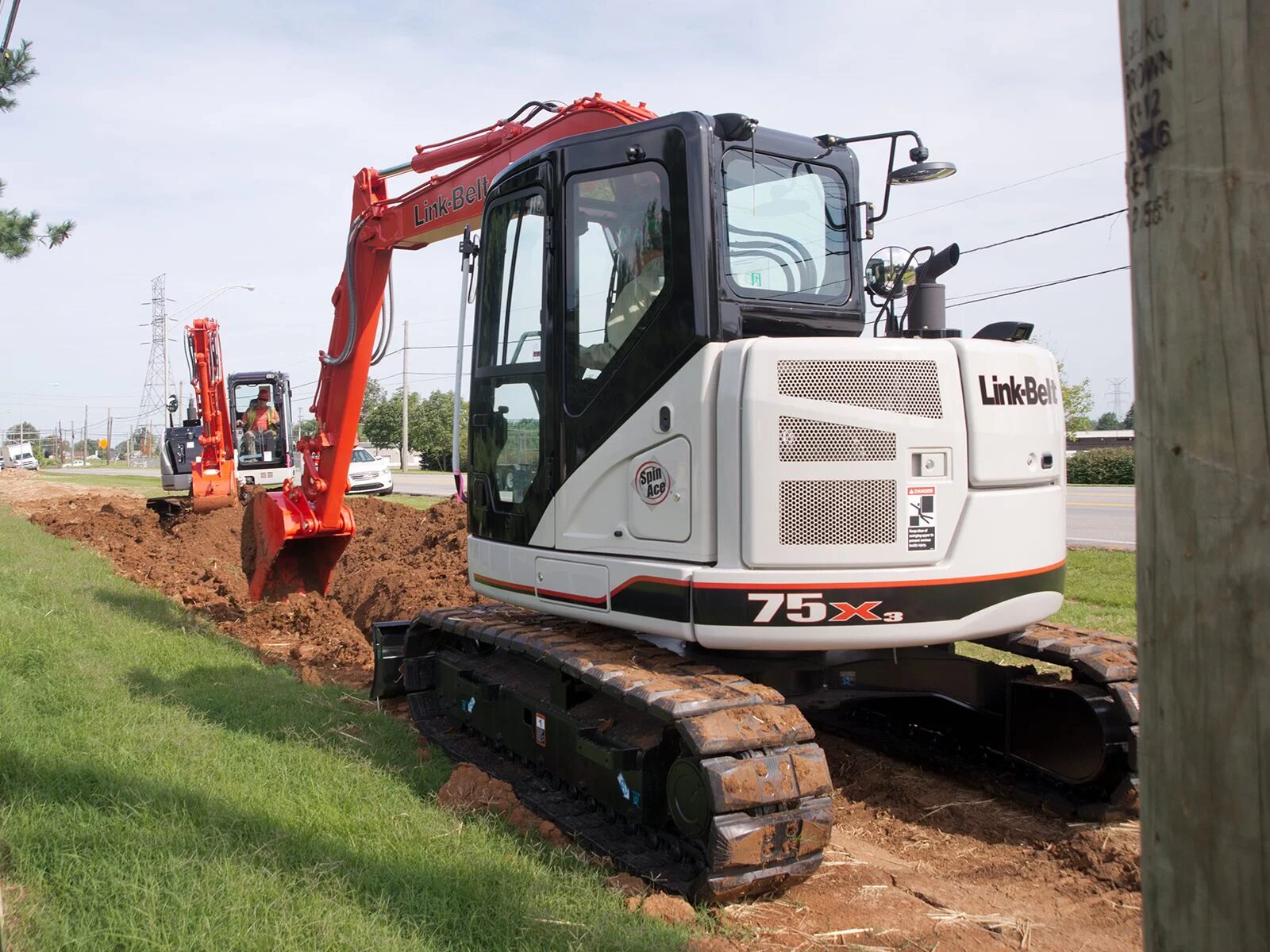

75 X3 Spin Ace Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 75 X3 Spin Ace is a crawler excavator manufactured since 2019. It has a weight of 8.2 tons and a track width of 450 mm. …

Link-Belt 75 X3 Spin Ace is a crawler excavator manufactured since 2019. It has a weight of 8.2 tons and a track width of 450 mm. The transport dimensions are 6.32 meters in length, 2.32 meters in width, and 2.76 meters in height. The machine features a tear-out force of 56.9 kN, a dredging depth of 4.13 meters, and a maximum horizontal reach of 6.27 meters. The bucket capacity is 0.54 cubic meters, and it is equipped with a blade.

Crawler Excavators Link-Belt 75 X3 Spin Ace

Technical specs - 75 X3 Spin Ace Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.2 t
Transport length
6.32 m
Transport width
2.32 m
Transport height
2.76 m
Bucket capacity
0.54 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.27 m
Dredging depth
4.13 m
Tear-out force
56.9 kN
Model series
X3
Engine manuf.
Isuzu
Engine type
AP-4LE2X
Engine power
40 kW
Displacement
2.2 l
Revolutions at max torque
1800 rpm
Max. torque
193 Nm
No. of cylinders
4
Emission level
Tier 4f

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 75 X3 Spin Ace FAQ

When was the Link-Belt 75 X3 Spin Ace manufactured?

The Link-Belt 75 X3 Spin Ace was first produced in 2019.

How much does the Link-Belt 75 X3 Spin Ace weigh?

The Link-Belt 75 X3 Spin Ace weighs 8.2 tons.

What are the transport dimensions of the Link-Belt 75 X3 Spin Ace crawler excavator?

The Link-Belt 75 X3 Spin Ace has a transport length of 6.32 meters, a transport width of 2.32 meters, and a transport height of 2.76 meters.

What are the undercarriage specifications of the Link-Belt 75 X3 Spin Ace?

The Link-Belt 75 X3 Spin Ace has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Link-Belt 75 X3 Spin Ace?

The Link-Belt 75 X3 Spin Ace has a dredging depth of 4.13 meters, a maximum horizontal reach of 6.27 meters, and features a monobloc boom.

What is the tear-out force of the Link-Belt 75 X3 Spin Ace?

The Link-Belt 75 X3 Spin Ace has a tear-out force of 56.9 kN.

What is the bucket capacity of the Link-Belt 75 X3 Spin Ace?

The bucket capacity of the Link-Belt 75 X3 Spin Ace is 0.54 cubic meters.
