5040 RB Link-Belt excavator specs & Dimensions (2019 - 2026)

Link-Belt 5040 RB is a crawler excavator manufactured since 2019. It has a weight of 50.2 tons and a track width of 700 mm. The tr…

Link-Belt 5040 RB is a crawler excavator manufactured since 2019. It has a weight of 50.2 tons and a track width of 700 mm. The transport dimensions are 11.2 meters in length, 3.64 meters in width, and 3.9 meters in height. The dredging depth is 5.98 meters, and the maximum horizontal reach is 10.98 meters.

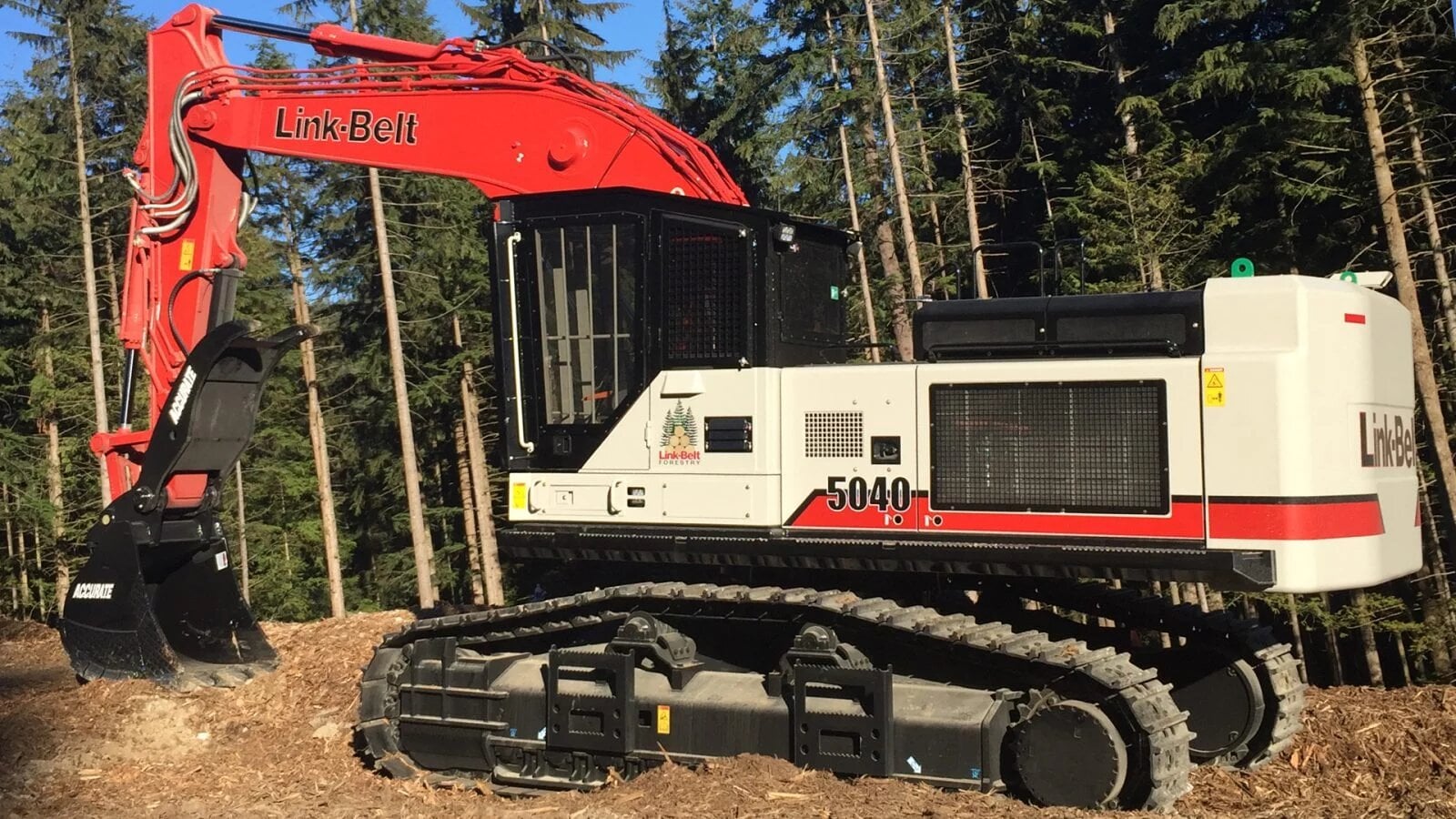

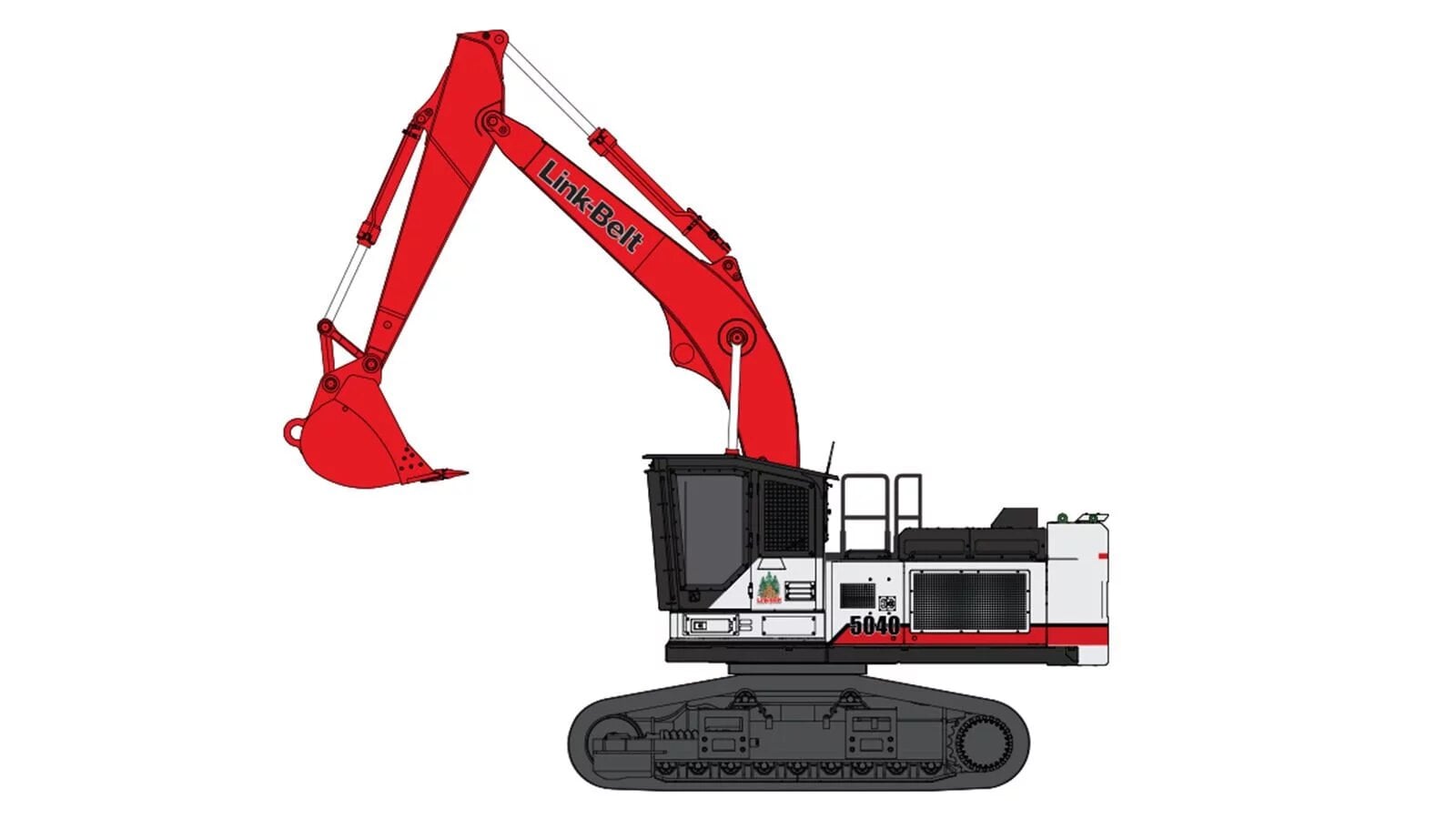

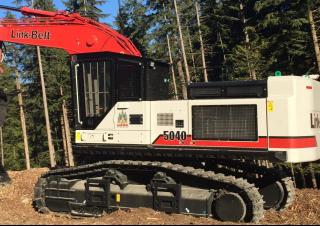

Crawler Excavators Link-Belt 5040 RB
Crawler Excavators Link-Belt 5040 RB
Crawler Excavators Link-Belt 5040 RB
Crawler Excavators Link-Belt 5040 RB
Crawler Excavators Link-Belt 5040 RB
Crawler Excavators Link-Belt 5040 RB

Technical specs - 5040 RB Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
50.2 t
Transport length
11.2 m
Transport width
3.64 m
Transport height
3.9 m
Track width
700 mm
Max. Reach horizontal
10.98 m
Dredging depth
5.98 m
Model series
5040
Engine manuf.
Isuzu
Engine type
AQ-6HK1X
Engine power
200 kW
Displacement
7.8 l
Revolutions at max torque
1500 rpm
Max. torque
988 Nm
No. of cylinders
6
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, bucket width, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 5040 RB FAQ

When was the Link-Belt 5040 RB manufactured?

The Link-Belt 5040 RB was first produced in 2019.

How much does the Link-Belt 5040 RB weigh?

The Link-Belt 5040 RB weighs 50.2 tons.

What are the transport dimensions of the Link-Belt 5040 RB crawler excavator?

The Link-Belt 5040 RB has a transport length of 11.2 meters, a transport width of 3.64 meters, and a transport height of 3.9 meters.

What is the track width of the Link-Belt 5040 RB's undercarriage?

The Link-Belt 5040 RB has a track width of 700 mm.

What are the dredging depth and maximum horizontal reach of the Link-Belt 5040 RB?

The Link-Belt 5040 RB has a dredging depth of 5.98 meters and a maximum horizontal reach of 10.98 meters.
