470 X3 Link-Belt excavator specs & Dimensions (2012 - 2023)

Link-Belt 470 X3 is a crawler excavator manufactured since 2012, with a weight of 50 tons. It features a track width of 900 mm, a …

Link-Belt 470 X3 is a crawler excavator manufactured since 2012, with a weight of 50 tons. It features a track width of 900 mm, a transport length of 12 meters, a transport width of 3 meters, and a transport height of 4 meters. The machine has a tear-out force of 313 kN and a bucket width of 1.676 meters, with a bucket capacity ranging from 1 m³ to 3 m³. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

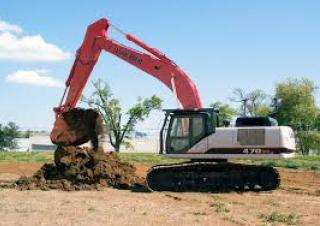

Crawler Excavators Link-Belt 470 X3

Technical specs - 470 X3 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
50 t
Transport length
12 m
Transport width
3 m
Transport height
4 m
Bucket capacity min.
1 m³
Bucket capacity max.
3 m³
Undercarriage
LC
Track width
900 mm
Boom
MB
Max. Reach horizontal
13.4 m
Dredging depth
9.2 m
Tear-out force
313 kN
Bucket width
1.676 m
Engine manuf.
Isuzu
Engine type
AL-6UZ1X
Engine power
270 kW
Displacement
9.8 l
Revolutions at max torque
1500 rpm
Max. torque
1435 Nm
No. of cylinders
6
Emission level
Tier 4A

More technical details, like: bucket capacity, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 470 X3 FAQ

When was the Link-Belt 470 X3 manufactured?

The Link-Belt 470 X3 was manufactured from 2012 to 2023.

How much does the Link-Belt 470 X3 weigh?

The Link-Belt 470 X3 weighs 50 tons.

What are the transport dimensions of the Link-Belt 470 X3 crawler excavator?

The Link-Belt 470 X3 has a transport length of 12 meters, a transport width of 3 meters, and a transport height of 4 meters.

What are the undercarriage specifications of the Link-Belt 470 X3?

The Link-Belt 470 X3 has a long undercarriage with a track width of 900 mm.

What are the excavation performance specifications of the Link-Belt 470 X3 crawler excavator?

The Link-Belt 470 X3 crawler excavator has a dredging depth of 9.2 meters, a maximum horizontal reach of 13.4 meters, and is equipped with a monobloc boom.

What are the power ratings of the Link-Belt 470 X3?

The available data does not provide power ratings for the Link-Belt 470 X3.

What are the bucket specifications of the Link-Belt 470 X3 crawler excavator?

The Link-Belt 470 X3 crawler excavator has a bucket width of 1.676 meters, with a bucket capacity ranging from 1 to 3 cubic meters.

How much is a Link-Belt 470 X3 Crawler excavator (2012u20132023) worth?

The residual value of the Link-Belt 470 X3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
