4640B TL Link-Belt excavator specs & Dimensions (2023 - 2026)

Weight: 46.9t – Transport length: 16.6m – Transport width: 3.6m – Transport height: 5.3m – Track width: 700mm – Max. Reach horizon…

Weight: 46.9t – Transport length: 16.6m – Transport width: 3.6m – Transport height: 5.3m – Track width: 700mm – Max. Reach horizontal: 13.4m

Check out detailed specifications, information and technical data for Link-Belt 4640B TL excavator manufactured between 2023 - 2026. Get more in-depth insight with Link-Belt 4640B TL digger specifications. See information, like: Weight: 46.9t – Transport length: 16.6m – Transport width: 3.6m – Transport height: 5.3m – Track width: 700mm – Max. Reach horizontal: 13.4m and more.

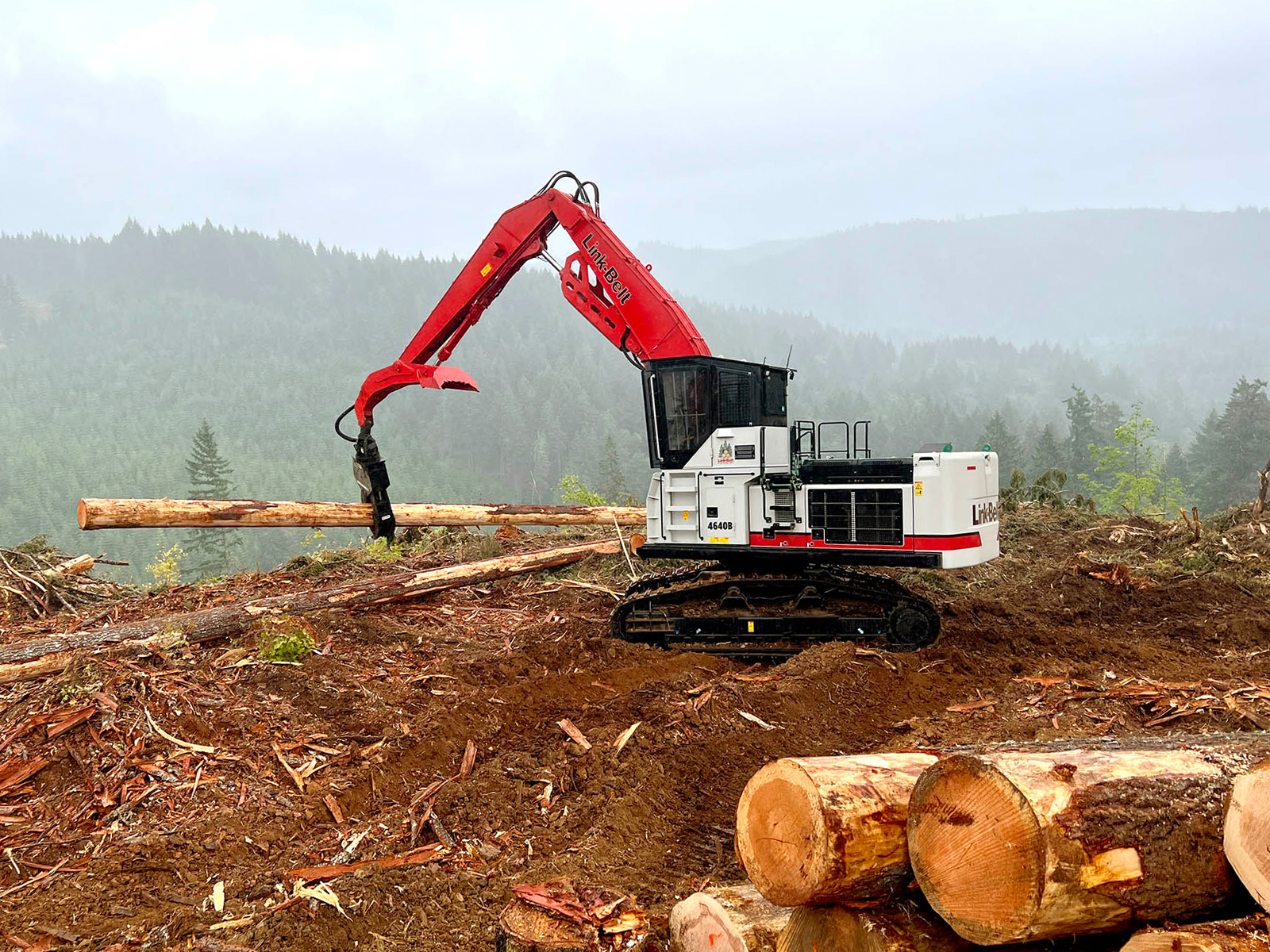

Crawler Excavators Link-Belt 4640B TL

Technical specs - 4640B TL Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
46.9 t
Transport length
16.6 m
Transport width
3.6 m
Transport height
5.3 m
Track width
700 mm
Max. Reach horizontal
13.4 m
Dredging depth
4.7 m
Tear-out force
307 kN
Model series
TL
Engine manuf.
Isuzu
Engine type
AQ-6HK1X
Engine power
200 kW
Displacement
7.79 l
Max. torque
988 Nm
Cylinder bore x stroke
170 x 1342 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 4640B TL FAQ

When was the Link-Belt 4640B TL manufactured?

The Link-Belt 4640B TL was first produced in 2023.

How much does the Link-Belt 4640B TL weigh?

The Link-Belt 4640B TL weighs 46.9 tons.

What are the transport dimensions of the Link-Belt 4640B TL crawler excavator?

The Link-Belt 4640B TL has a transport length of 16.6 meters, a transport width of 3.6 meters, and a transport height of 5.3 meters.

What is the track width of the Link-Belt 4640B TL crawler excavator?

The Link-Belt 4640B TL crawler excavator has a track width of 700 mm.

What are the excavation performance specifications of the Link-Belt 4640B TL?

The Link-Belt 4640B TL has a dredging depth of 4.7 meters and a maximum horizontal reach of 13.4 meters.

What is the tear-out force of the Link-Belt 4640B TL, given that power ratings are not provided?

The Link-Belt 4640B TL does not have power ratings provided, but it has a tear-out force of 307 kN.

How much is a Link-Belt 4640B TL Crawler excavator (2023u20132025) worth?

The residual value of the Link-Belt 4640B TL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
