3900 Link-Belt excavator specs & Dimensions (1999 - 2023)

Link-Belt 3900 is a Crawler Excavator manufactured since 1999, with a weight of 28.526 tons. It features a track width of 800 mm, …

Link-Belt 3900 is a Crawler Excavator manufactured since 1999, with a weight of 28.526 tons. It features a track width of 800 mm, a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters. The bucket width is 1.524 meters, with a maximum bucket capacity of 1 cubic meter. Special equipment includes a diesel particulate filter and track adjustment.

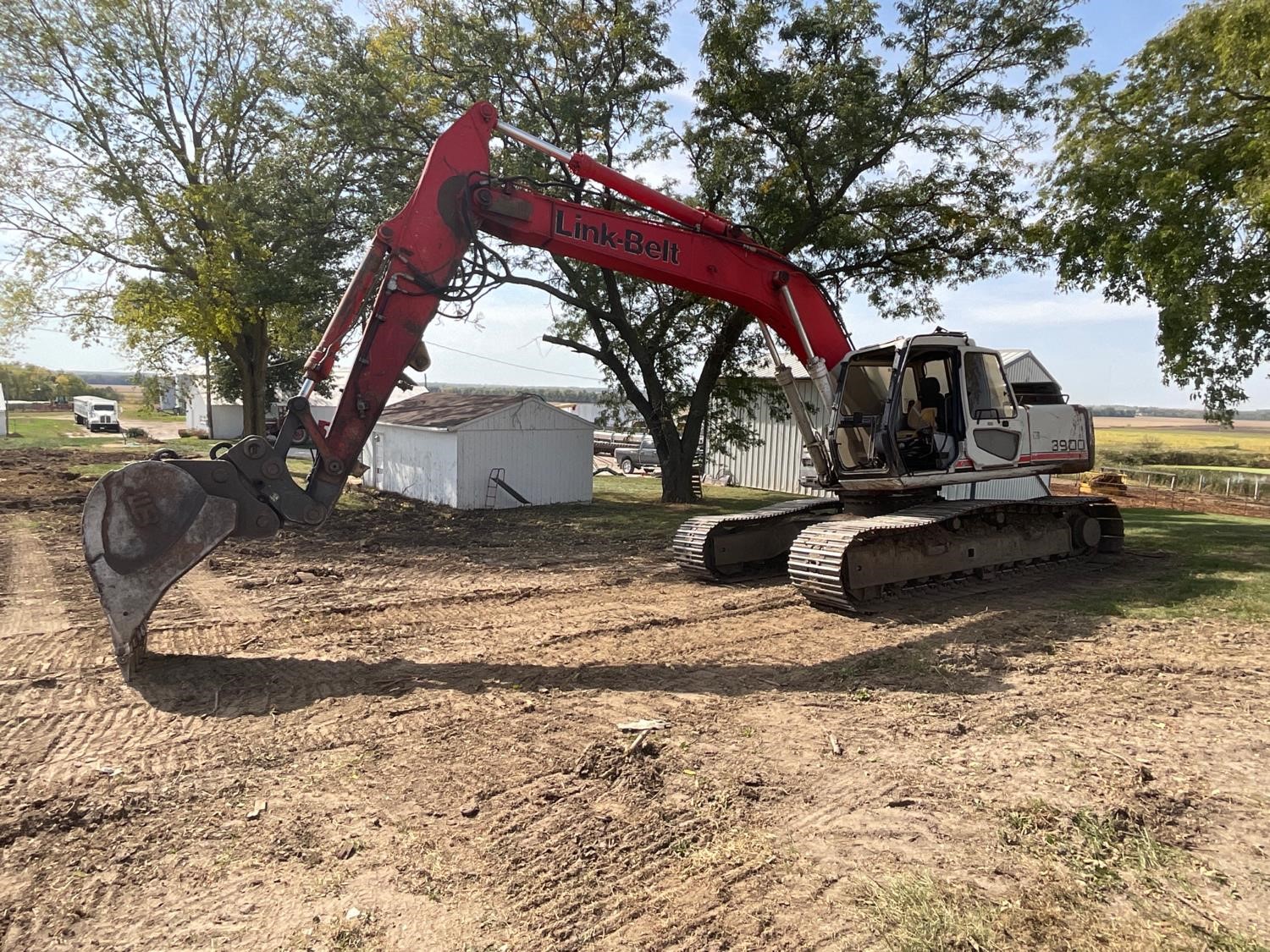

Crawler Excavators Link-Belt 3900

Technical specs - 3900 Link-Belt

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.526 t
Transport length
10 m
Transport width
3 m
Transport height
3 m
Bucket capacity max.
1 m³
Track width
800 mm
Boom
MB
Max. Reach horizontal
11.24 m
Dredging depth
7.75 m
Tear-out force
151.33 kN
Bucket width
1.524 m
Engine manuf.
Cummins
Engine type
6CT8.3
Engine power
133 kW
Displacement
8.3 l
Revolutions at max torque
1450 rpm
Max. torque
700 Nm
No. of cylinders
6
Cylinder bore x stroke
114 x 135 mm

More technical details, like: bucket capacity, bucket capacity min., undercarriage, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Link-Belt 3900 FAQ

When was the Link-Belt 3900 manufactured?

The Link-Belt 3900 was manufactured from 1999 to 2023.

How much does the Link-Belt 3900 weigh?

The Link-Belt 3900 weighs 28.53 tons.

What are the transport dimensions of the Link-Belt 3900 crawler excavator?

The Link-Belt 3900 crawler excavator has a transport length of 10 meters, a transport width of 3 meters, and a transport height of 3 meters.

What is the track width of the Link-Belt 3900 crawler excavator?

The Link-Belt 3900 crawler excavator has a track width of 800 mm.

What are the excavation performance specifications of the Link-Belt 3900 crawler excavator?

The Link-Belt 3900 crawler excavator has a dredging depth of 7.75 meters, a maximum horizontal reach of 11.24 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Link-Belt 3900?

The Link-Belt 3900 has a tear-out force of 151.33 kN.

What are the specifications of the primary work tool bucket on the Link-Belt 3900?

The primary work tool bucket on the Link-Belt 3900 has a maximum capacity of 1 cubic meter and a width of 1.524 meters.

How much is a Link-Belt 3900 Crawler excavator (1999u20132023) worth?

The residual value of the Link-Belt 3900 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Link-Belt 3900 overview

Cab

Cab and Controls

Cab mounted on 6 fluid filled mountings. Features include a safety glass front window with LEXAN MARGARD™ rear and side windows, reclining/sliding cloth upholstered suspension seat with headrest and armrests, heater, oscillating fan, AM/FM radio, cigarette lighter, pop-up skylight window, and intermittent wiper with washer. Front window slides upward for storage and the lower front window is removable. Control levers are located in 4-position tilting control consoles. Reliable soft-touch switches. Easy-to-read illuminated LCD service monitor keeps operator in touch with critical machine functions.
